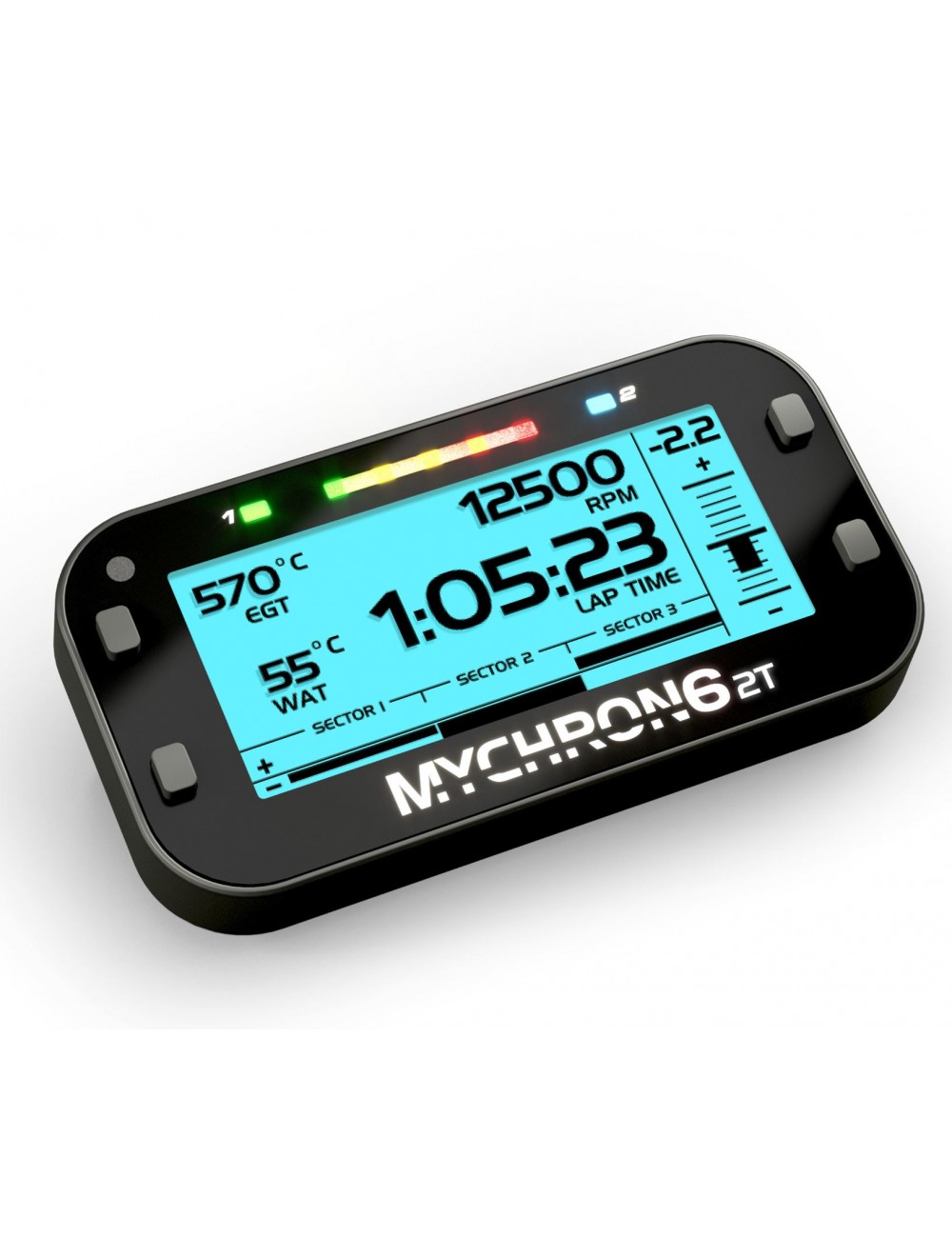

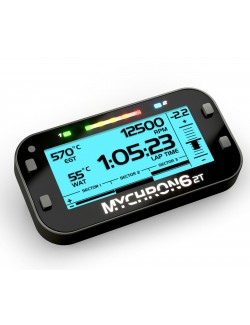

Compteur AIM MyChron6 2T avec sonde t° eau et sonde échappement

Aim Mychron 6 2T - Version with Double Probe (Water and Exhaust Gas)

Product description :

The Mychron 6 2T is a state-of-the-art data acquisition and timing system, specially designed for 2-stroke karting enthusiasts. With its advanced technology and its customizable features, this unit is the ideal tool for drivers wishing to optimize their performance on the track.



Main features :

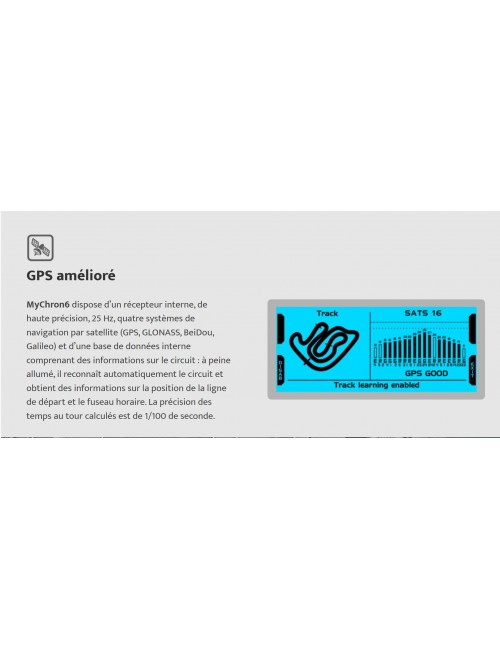

- GPS integrated at 25 Hz: precise follow-up of the turn times and position on the track, allowing a detailed analysis of performance.

- High resolution screen: With a resolution of 320 x 136 pixels, the screen is fully customizable to display the most relevant information according to the driver's driver's style.

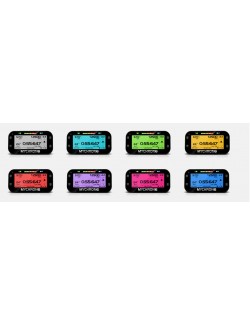

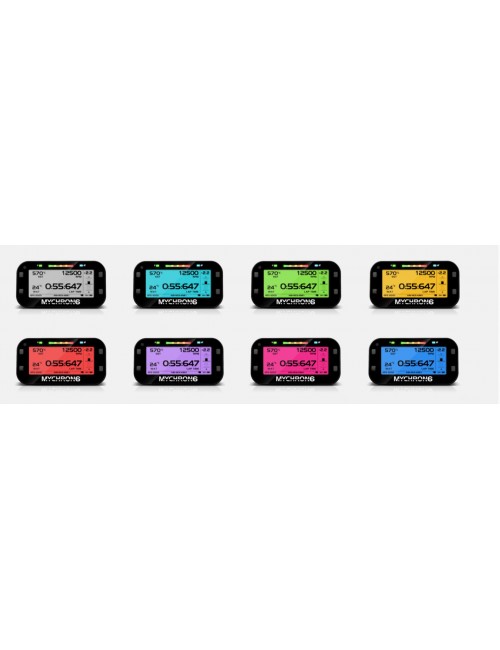

- RGB backlight: Eight selectable colors guarantee optimal visibility, regardless of lighting conditions.

- Multifunctional LEDs: Five configurable RGB LEDs to indicate speed changes, engine speed, or other important alerts.

- Programmable alarm: two alarm LEDs to report exceeding critical thresholds, thus ensuring increased security.

- 6-axis inertial platform (IMU): at 50 Hz, it detects the accelerations and movements of the kart, providing valuable data for a thorough analysis.

- Inputs for temperature sensors: monitor the temperature of the water and exhaust gases thanks to dedicated probes.

- Internal memory of 4 GB: recording and analysis of session data for detailed performance monitoring.

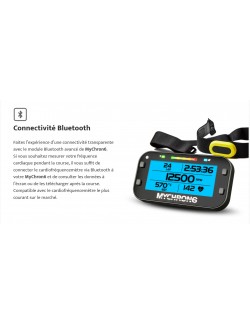

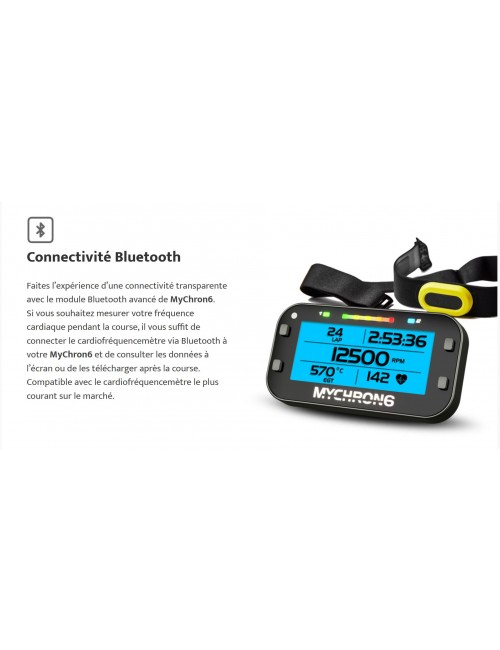

- Wi-Fi and Bluetooth connectivity: fast transfer of data to PC, tablet or smartphone via Race Studio 3 software.

- rechargeable lithium battery: long battery life with quick recharge via USB-C, ensuring that your device is always ready for use.


Basic kit (version with double water sensor and exhaust gas) : **

- Water temperature sensor: to monitor the coolant temperature.

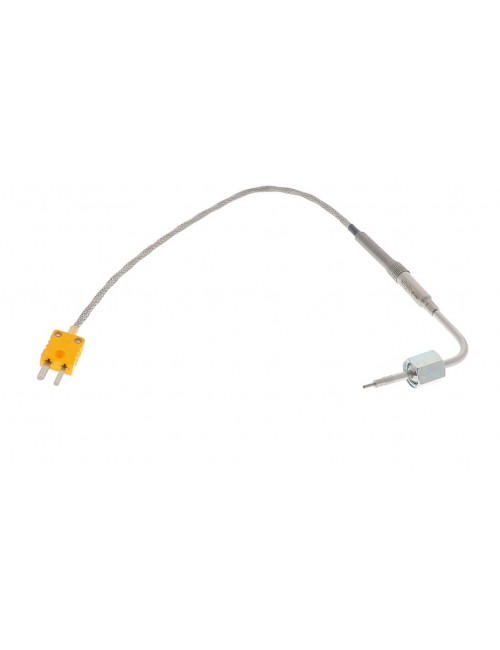

- M12 exhaust gas temperature sensor: precise measurement of the exhaust gas temperature.

- Double temperature cable: allows simultaneous monitoring of water temperatures and exhaust gas.

- RPM cable: To monitor the engine speed in real time.

- USB-C cable: To charge the internal battery easily.

Technical specifications:

- Dimensions: 150 x 79 x 36.6 mm

- Weight: 370 g

- Material: PA6 GS30% (very resistant)

- IP67 certification: waterproof and dust-resistant

- External power supply: 9 to 15 V

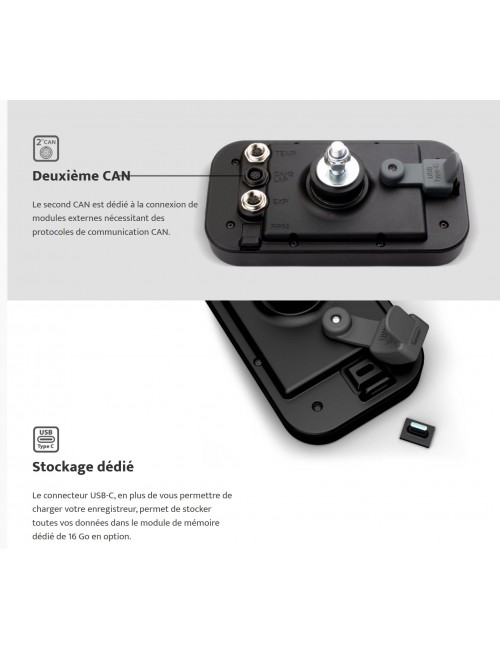

- CAN connectors: 2

- USB port: support for download data, mass storage, and battery chargers

- Digital inputs: * Optical flashing and magnetic flashing

- Digital outputs: 1, programmable activation up / down

- Memory: 4 GB

- Battery: rechargeable lithium with an autonomy of about 20 hours

The Mychron 6 2T Is the essential choice for 2-stroke karting drivers looking for accurate data and advanced analysis to improve their track performance. Do not leave anything at random and equip yourself with this high-tech tool to maximize your potential in karting!
