Do not fit into the original Rotax Battery Batket

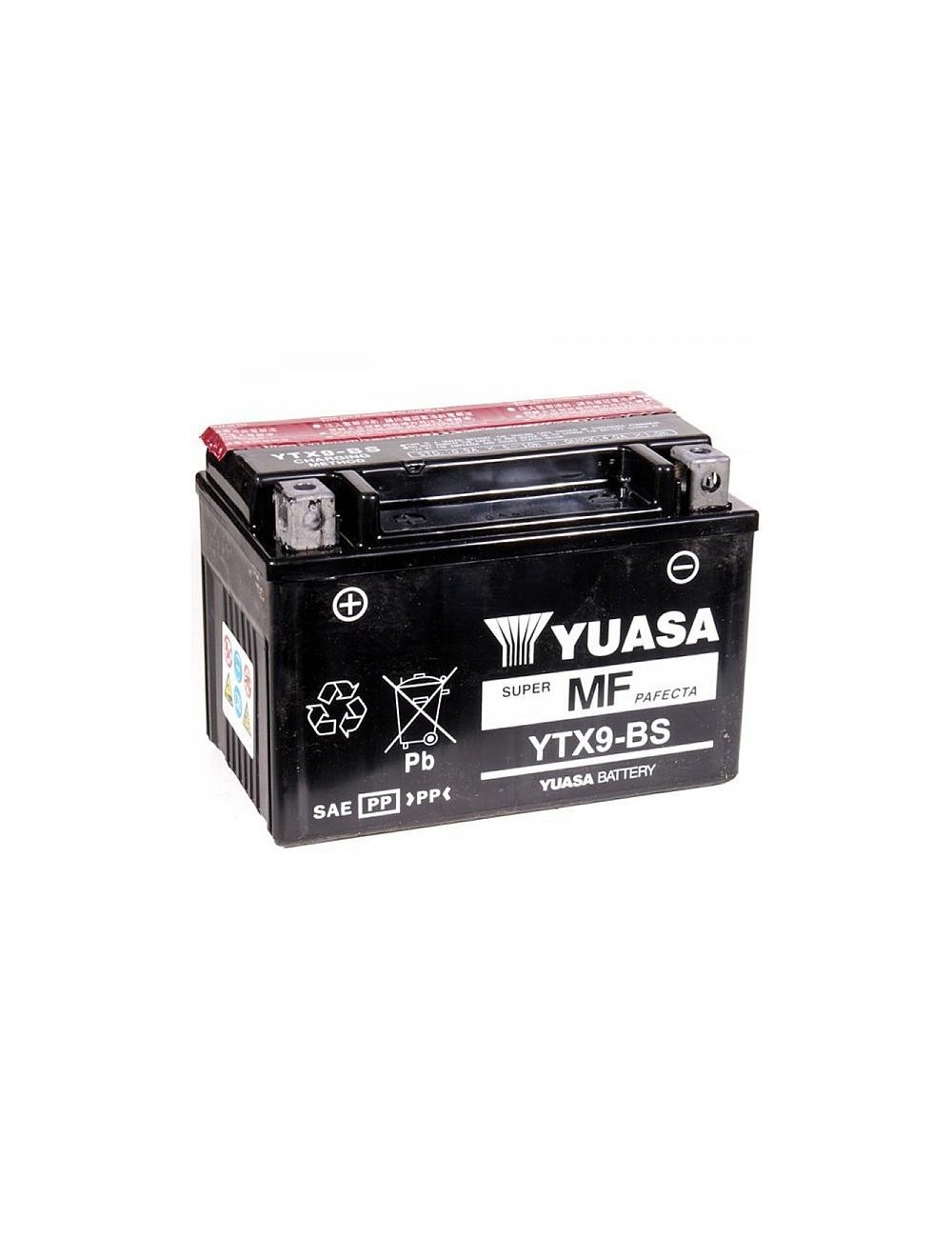

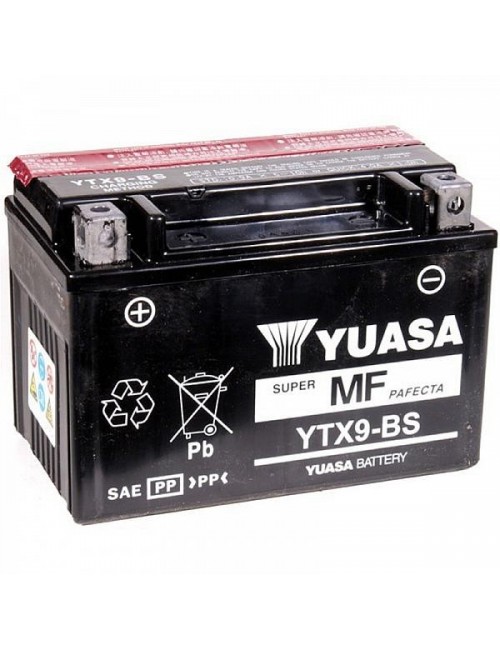

The Yuasa J YTX9-BS battery is a battery outdoors high quality, specially designed for karting engines, including those equipped with demanding electrical systems such as Rotax. Although she Do not fit into the original battery basket Rotax Without adaptation, it offers a optimal performancea Increased longevity and an outstanding reliability For competition or leisure karts.

Made by Yuasa, a brand recognized for its expertise in high performance batteries, the Ytx9-SB is sold with electrolyte (acid)but must be completed before the first use. Once activated, it does not require No maintenance, making it a practical and sustainable choice for pilots and mechanics.

Technical characteristics

Electrical and physical specifications

• Battery type : Ytx9-SB (without maintenance)
• Voltage : 12v
• Capacity : 8,4ah
• Charge : 2 to 3 hours (with a suitable charger)
• Dimensions : 150 mm x 87 mm x 105 mm
• Weight (kg) : 2.5 kg
• Acid volume : 0.4 l
• Amperage : 0.9 A
• CCA (COLD Cranking Amps) : 135 A (cold start power)

Advantages and features

Without maintenance and practical

• Outdoors : Once filled and activated, the battery does not require No acid level verification.
• Longevity : Yuasa technology guarantees a extended lifeeven in intensive conditions of use.
• Performance : Powerful and stable startup, even in cold weather, thanks to a high CCA (135 A).

Ease of use

• Ready for use after activation : Simply follow the filling procedure for immediate commissioning.
• Optimal load : Compatible with Motorcycle Battery Chargers (eg: Optimate 4 Dual Tecmate Program), but incompatible with car chargers, which could damage it.

Instructions for use for activation

1. Preparation :

   • Place the battery on a Plane and stable surface.
   • Remove sealing sheet located on the top.

2. Filling :

   • Detach cap electrolyte container.
   • Set the container upside down on the battery and push strongly To break the joints.
   • Check that the Air bubbles date back well in each compartment.
   • Let rest 20 minutes to allow the electrolyte to flow well.

3. Finalization :

   • Remove slowly The container once all the liquid has elapsed.
   • Set cap at the same level as the top of the battery.
   • The battery is ready for use.

Care and storage tips

• First load : After activation, perform a full charge before the first use.
• Storage : If the battery is not used immediately, the recharge once a month with a suitable charger (eg Optimate) to avoid a loss of capacity (20% capacity and 30% lifetime in case of prolonged discharge).
• Total discharge : A battery completely discharged for more than a month risk a irreversible deterioration.

Compatibility and adaptation

• Karts Rotax : Although this battery Do not go directly into the original battery basket Rotax, it can be adapted With a specific support or housing for optimal integration.
• Other applications : Suitable for a wide range of 2-stroke karts and motors / 4 stroke requiring a high performance 12V battery.

Why choose Yuasa YTX9-BS battery?

• Yuasa Quality : Brand leader in maintenance-free batteries, synonymous with Reliability and durability.
• Optimal performance : Powerful start and Increased longevity, even in extreme conditions.
• Ease of use : Simple activation and No maintenance Required after filling.
• Versatility : Compatible with most Karting electrical systems, subject to adaptation for some models (eg: Rotax).
