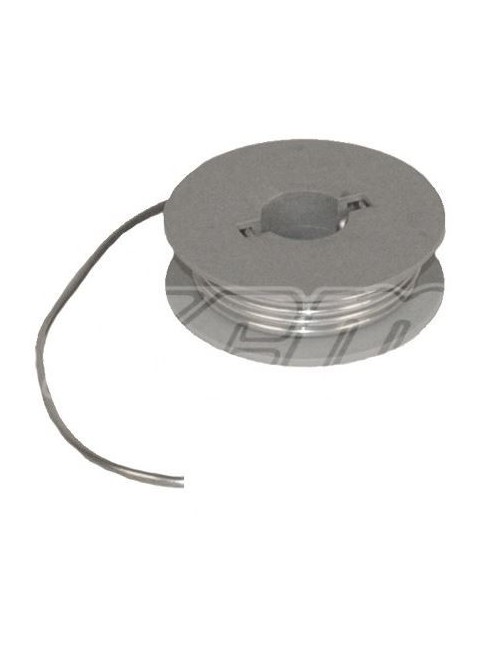

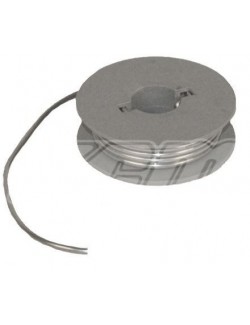

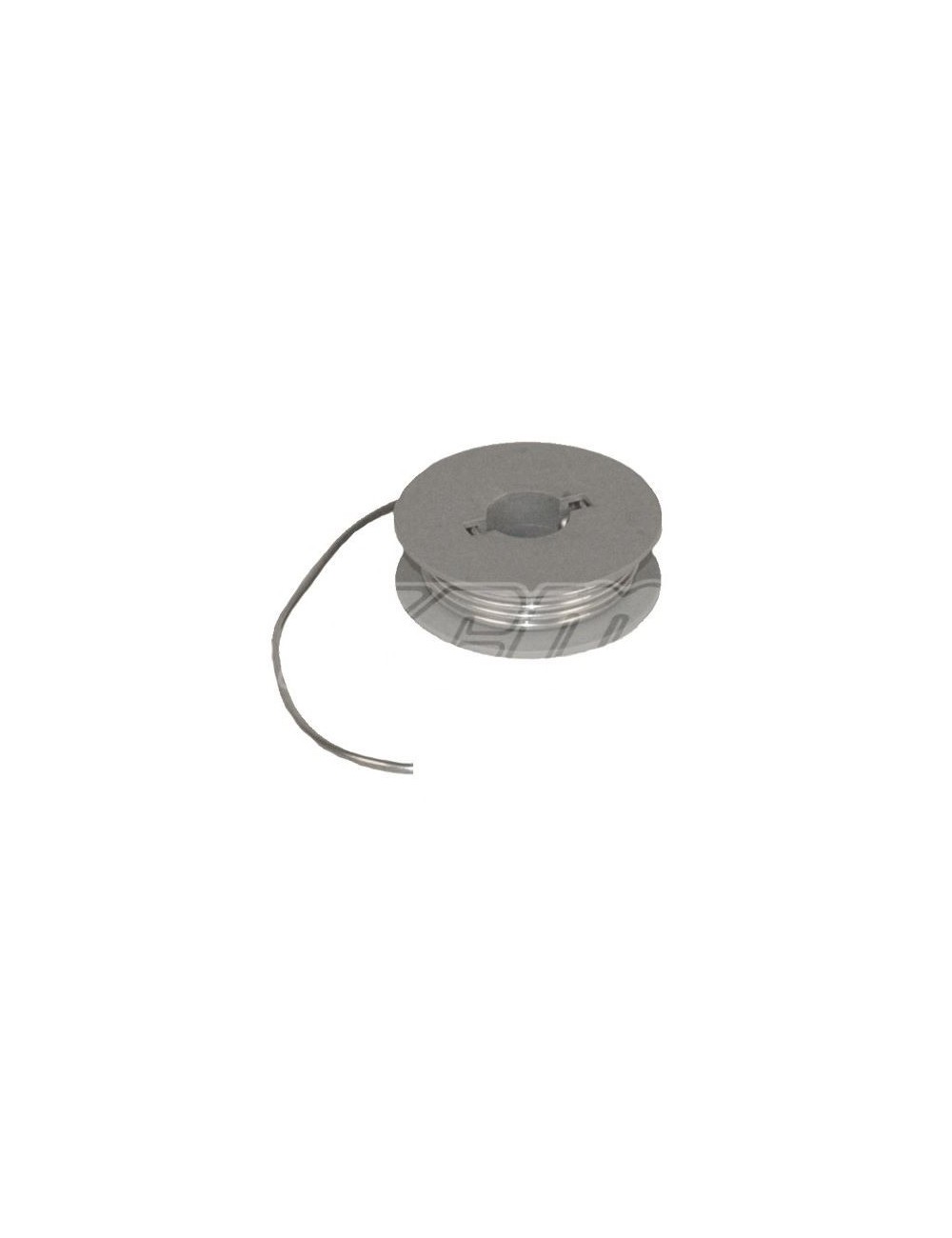

Special Squish Wire Squish Ø2mm for Karting

Diameter: 2 mm

The Special Squish wire squish Ø2mm is an essential tool for setting the squish on the 2-time karting motors. Here is a detailed description of its use and its importance:

• What is the squish?

  • The squish is a crucial motor adjustment for 2-stroke engines. It consists of adjusting the distance between the piston and the cylinder head to optimize the compression and performance of the engine. Correct squish setting is essential for the life and performance of your engine kit.

• Importance of the squish setting:

  • A poorly adjusted squish can cause serious problems such as piston drilling if the squish is too small, or a loss of compression and performance if the subih is too big.

• Materials needed:

  • Tin wire of 1 mm (or 2 mm for more precision)
  • Sliding foot (electronic or manual)
  • Set of shims of different sizes to place under the cylinder (supplied in high-end kits)
  • Courage and patience to mount and disassemble the high engine

• Squish setting steps:

  1. Taken of the squish without bilge:

     • Complete the high engine completely with only the base seal under the cylinder.
     • Fold a piece of tin thread (about 10 cm in length) in the shape of "L".
     • Pass the thread by the well of the bougie And orient it so that the end of the thread is between the piston and the cylinder head.
     • Rotate the crankshaft (using the ignition bell, the internal rotor, or giving kick shots).

  2. SUISH measurement:

     • Remove the tin wire and measure the overwritten part with a slide foot.
     • The resulting result must be in tenth millimeter (for example, 0.2 mm).

  3. Squish setting:

     • If you get a 0.2 mm measurement and want a 0.6 mm squish, add a 0.4mm bilge between the cylinder and low engine.
     • Use the holders supplied with the kit to adjust the necessary thickness.
     • Reassemble the high engine with the necessary holds (selected beforehand) and redone the same manipulation as in the first step.
     • You should then get a crushed tin thread of 0.6 mm if you have done your measurements well.
     • So here you are with a squish set, more than starting!

The special Squish wire squeth Ø2mm is an indispensable tool for karting drivers that are keen to keep their engine in perfect condition. Its use makes it possible to optimize compression and ensure a long life of the engine, while improving the performance on the track.

Resume

The special Squish wire squeth Ø2mm is essential to set the squish on the 2-stroke engines. This setting optimizes the compression and performance of the engine. A poorly set squish can result in piston holes or loss of performance. The process requires a tin thread, a slide foot, shims, and patience to mount and disassemble the high engine. Follow the jacks, measurement, and squish setting steps for optimal performance.
