kelgate system Laser alignment R3 magnetic (parallelism and camber)

Kelgate R3 Front Laser System - Precise Karting Train Setup

The Kelgate R3 Front Laser System is a high precision adjustment tool for optimizing the Train Front Karting. It makes it possible to measure quickly and with great reliability the TOE (pinch / opening) as well as the Camber (camber) Using a single installation.

Designed to meet the requirements of competition teams as experienced drivers, Kelgate R3 offers considerable time saving while ensuring reproductible and accurate settings.

Operating principle

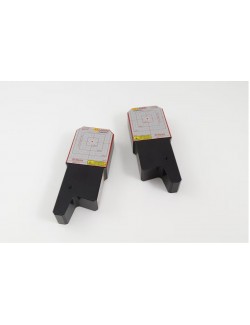

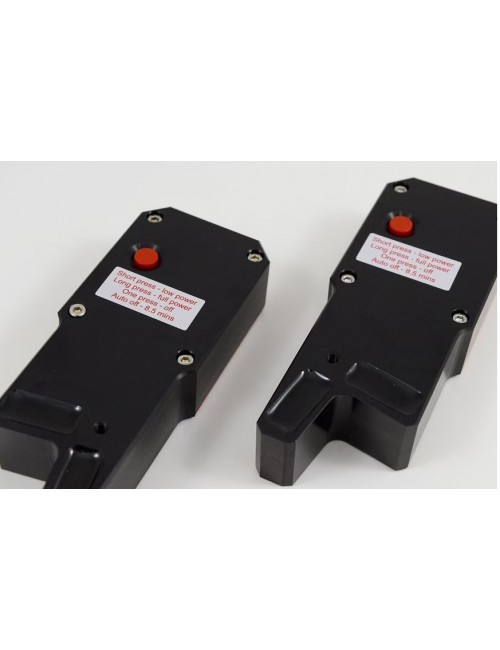

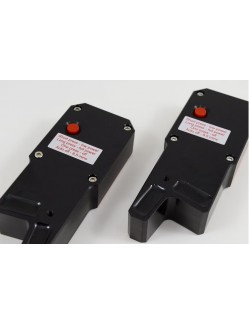

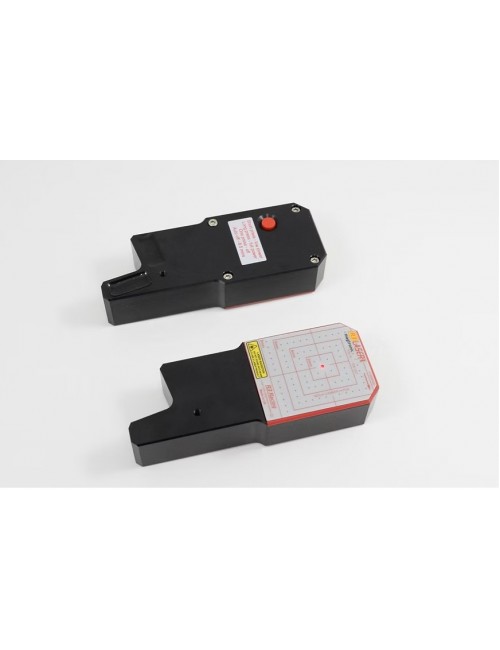

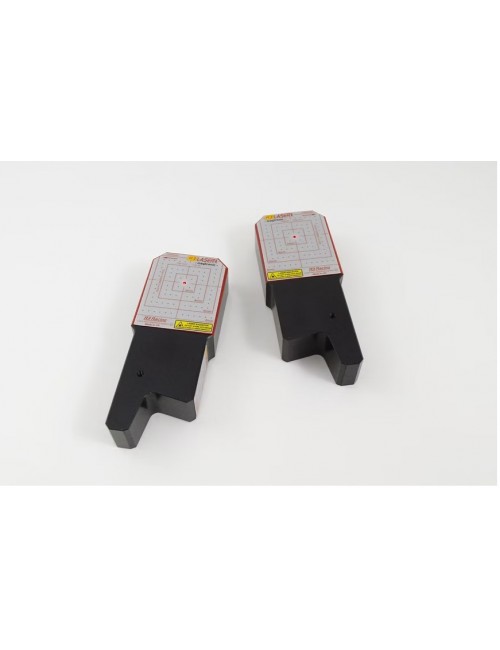

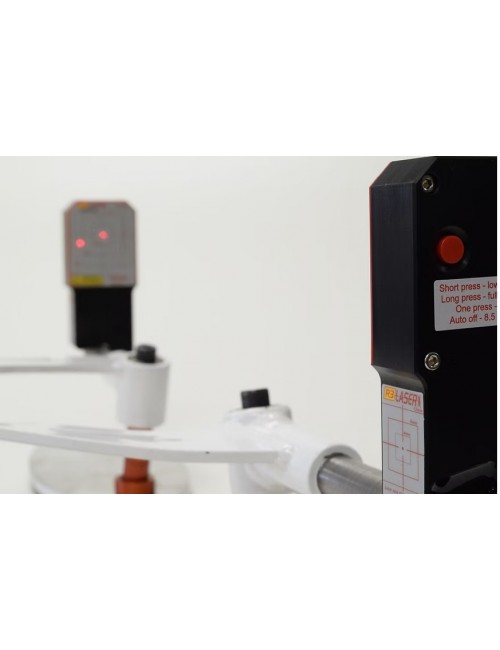

The system consists of a pair of lasers rising magnetically on the axles of counter-battle. Once the direction is perfectly centralized:

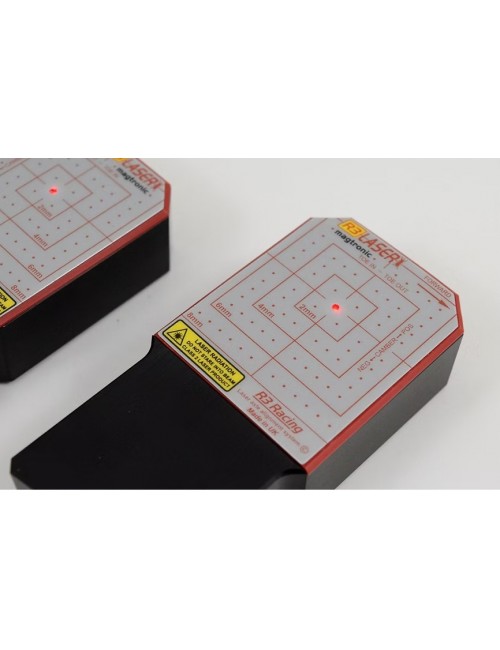

• Lasers instantly project the beams for reading the toe

• The camber is measured simultaneously, without disassembly or additional adjustment

• The values are readable immediately, considerably simplify the adjustment phase

This method makes it possible to verify and adjust the alignment of the front gear with very high precision, key element for the behavior of the kart in turn input, in the rotation phase and stability in a straight line.

Castor

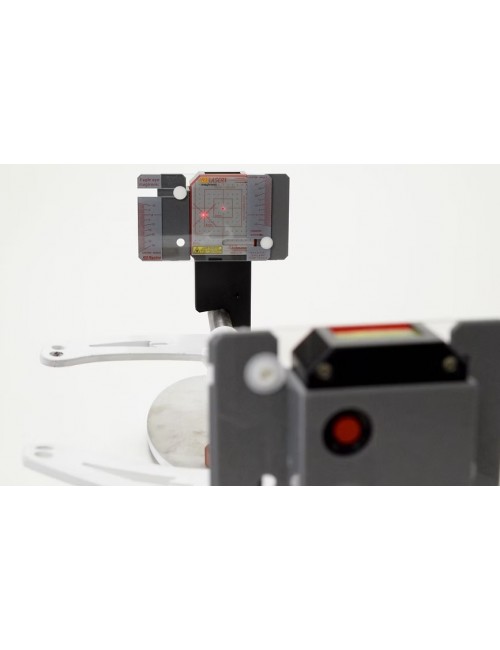

The Kelgate R3 system can be completed by Caster gauges, which integrates directly on the device:

• The gauges simply fit on the system

• One simple steering wheel movement makes it possible to obtain the value of the Caster

• No additional tool is needed

This feature allows you to refine the front train setting according to the grip, the pilotage style and the track conditions.

Rear laser option

The addition of rear lasers The kit allows a complete analysis of the chassis:

• Detection of a chassis curvature

• Identification of a twist

• Highlighting a Crab chassis

This verification is essential to ensure that the front train settings are made on a perfectly healthy frame base.

Manufacturing quality

• Laser units machined in Aluminum of aeronautical quality

• Excellent resistance to shocks and wear

• Neat finish, suitable for intensive use in paddock and workshop

Content and documentation

• Complete instructions provided

• Explanation of the fundamental principles of the Kart setting

• Step by step detailed guide for using the Kelgate system

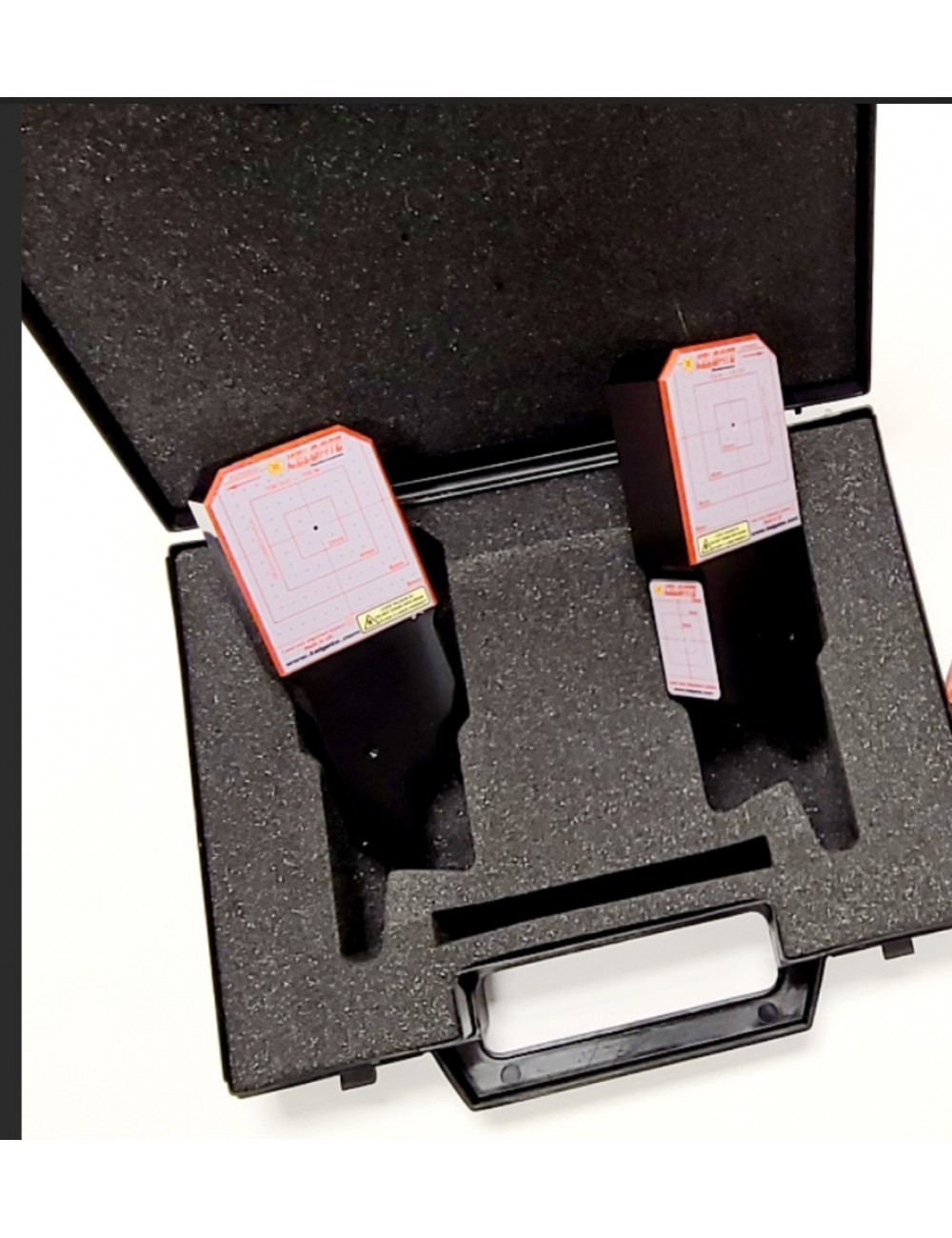

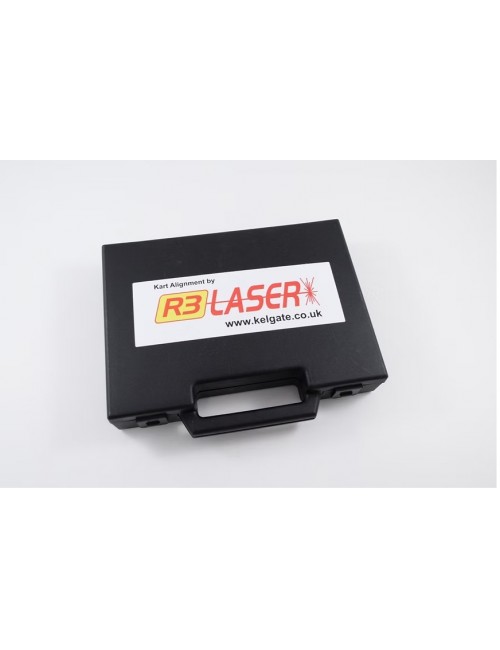

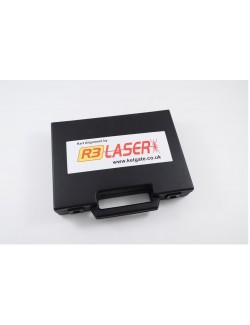

The Kelgate laser master kit is available and includes:

• Lasers

• Rear lasers

• Set of accessories necessary for the complete use of the system

Benefits

• Quick and precise adjustment of the front train

• Immediate reading of the TOE, Camber and Caster

• Significant time saving during adjustment sessions

• Essential tool for focus chassis

• Suitable for competition as well as intensive training

Recommendation for use

To fully exploit the performance of the Kelgate R3 system and ensure consistent settings, it is recommended that its use is made by a karting professional or an experienced user mastering the principles of chassis geometry.
