By buying this product you can collect up to 17 loyalty points. Your cart will total 17 points that can be converted into a voucher of €1.70.

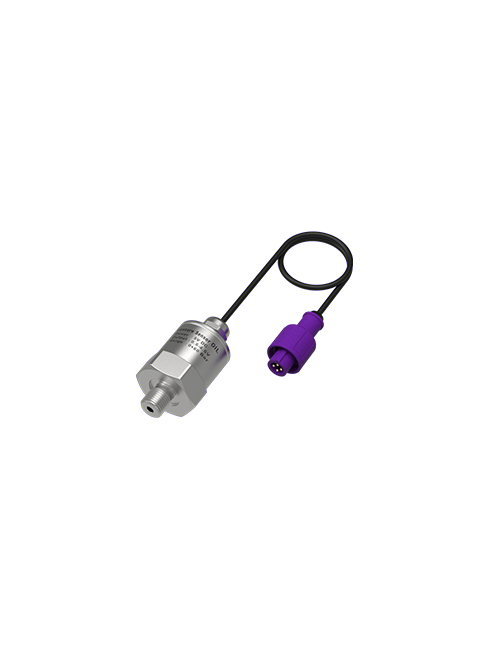

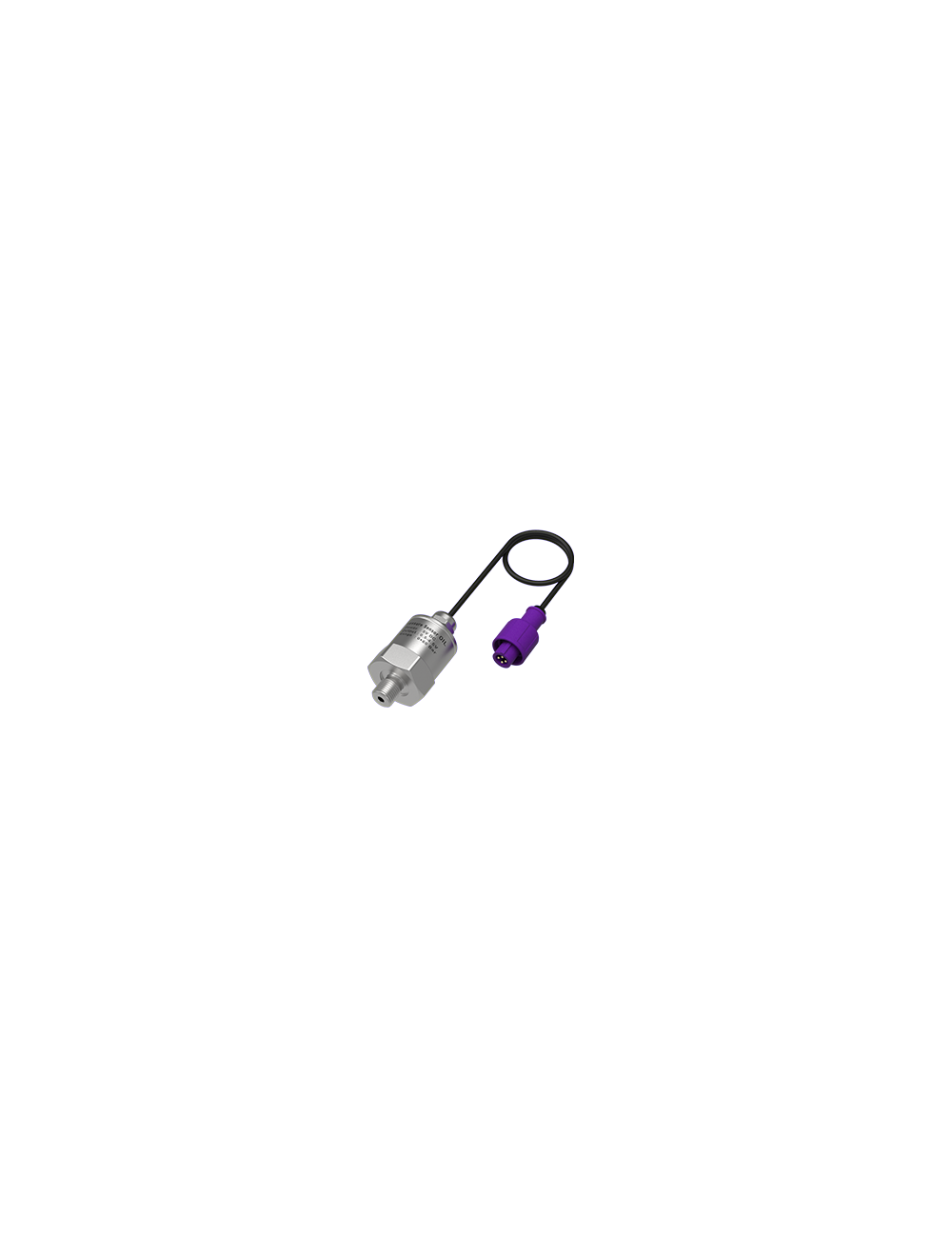

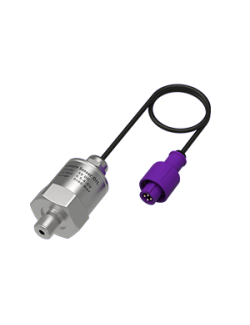

Brake pressure sensor - Analog 0-5V 60BARS - 40cm
| Features | Details |
|---|---|
| Type | Analog pressure sensor (0-5V) |
| Measuring range | Up to 60 bars |
| Cable length | 40 cm |
| Thread | 10 × 1 mm (requires fittings suitable for your vehicle) |
| Compatibility | BOX12 (reference A1160) and Adopro software (via alfano7) |
| Function | Measures the hydraulic pressure exerted on the brake caliper for precise monitoring of performance |
Detailed description
This 0-5V analog brake pressure sensor is specially designed for karting drivers wishing to optimize their performance. It connects directly to the hydraulic brake circuit and measurement in real time the pressure applied to the caliper of the disc. Thanks to its analog output (0-5V), it transmits accurate data to your acquisition system (Box12, reference A1160), allowing a thin analysis of the braking curves via the adapro software (activation required in Alfano7).
Key benefits
- Precision : Measure up to 60 bar for ultra-precise tracking of braking efforts.
- Compatibility : Designed to integrate easily with Alfano and Box12 systems.
- Simplified installation : Direct electrical connection on the purple connector of the BOX12.
- Performance optimization : Ideal for adjusting braking settings and improve time in turn.
Installation and activation
-
Mechanical assembly : Screw the sensor to the hydraulic circuit (10 × 1 mm thread). Use fittings adapted to your Kart model for perfect sealing.
-
Electrical connection : Connect the sensor cable to the Violet connector of the BOX12 (Ref A1160).
-
Software activation : In ALFANO7, activate the sensor for the adapro software to displays the pressure curves.
Why choose this sensor?
- Reliability : Designed to withstand the extreme conditions of karting.
- Exploitable data : View your braking efforts and adjust your settings accordingly.
- Versatility : Compatible with most market telemetry systems.
Frequently asked questions
Do you need specific tools for installation? Yes, fittings suitable for 10 × 1 mm thread are required.
Is it compatible with other systems than Alfano7? It is optimized for the BOX12 and ADAPRO, but can be adapted to other systems (check electrical compatibility).
How to interpret data? The adopro software generates pressure curves to analyze braking efficiency.
Ready to boost your performance? Add this sensor to your configuration now!
Need help for installation or technical advice? Contact our team of experts via https://magickart.eu/en/.
