5mm Circlip Omega for Pedal Axis

5mm Circlip Omega for Pedal Axis

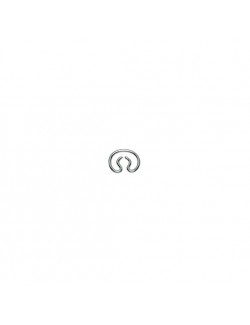

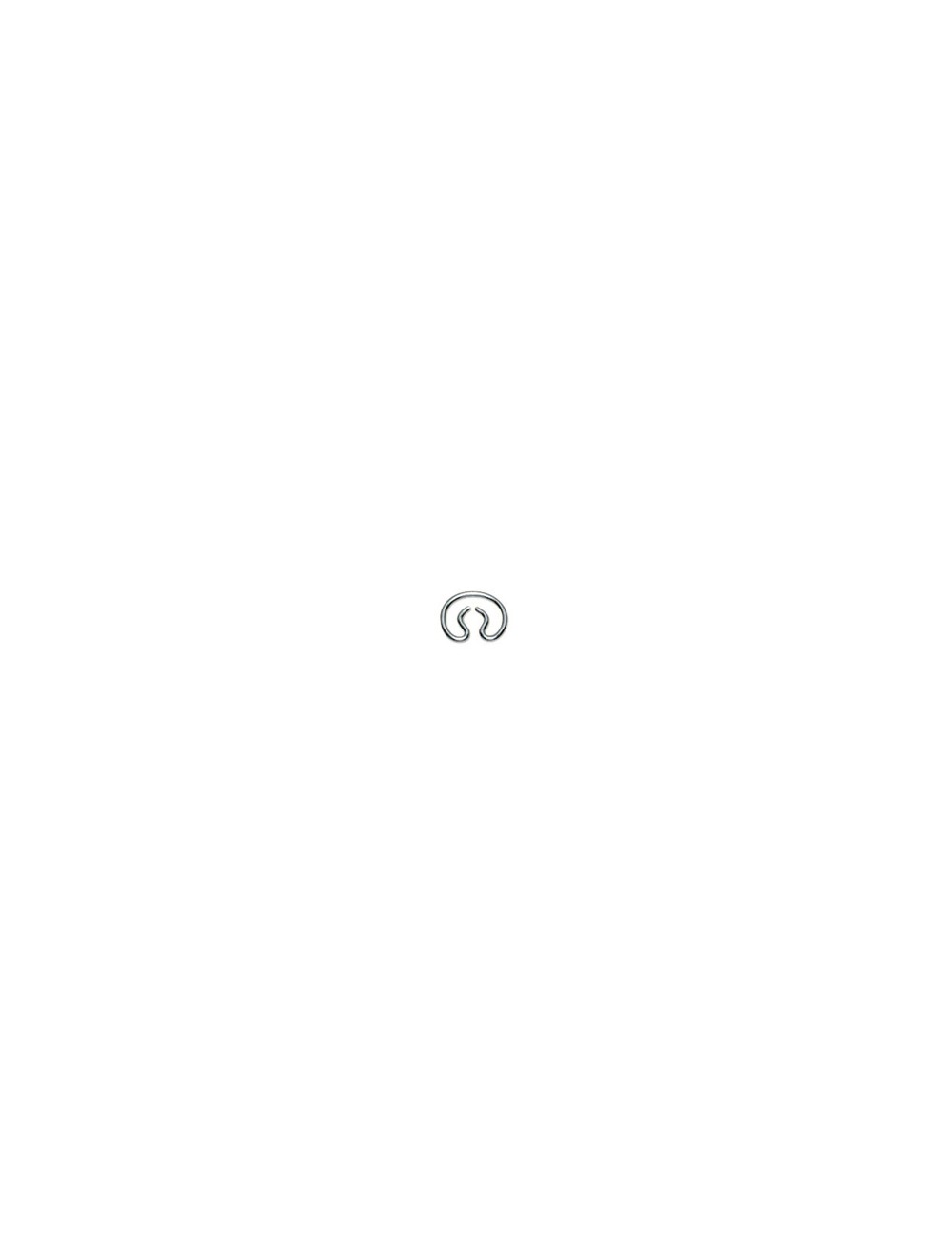

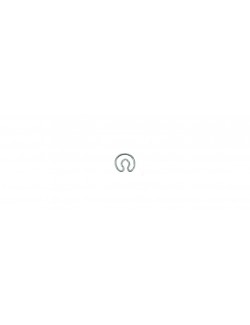

This Omega circlip image 4.png) is a high quality spring steel external retaining ring, specially designed to secure the 5mm axes of your pedal. Unlike a clip pin, this circlip fits into a machined throat at the end of the axis, offering an ultra-rigid and permanent fastening. This is the solution chosen by many chassis manufacturers for the absolute safety of brake and accelerator controls.

Specifications Technical:

• Type: Circlip Outdoor Omega / E-clip (conform to image 4.png).

• Throat diameter: Designed to accommodate in an axis gorge of 5 mm.

• Material: High voltage zinc spring steel for maximum clamping force.

• Assembly: Requires an external circlip clip (axial mount).

• Compatibility: Universal for karting pedals equipped with 5mm axes with throat (Sodi, Kosmic, CRG, etc.).

Magickart Loyalty Program: By securing your pedal with these quality circlips, you can combine loyalty points on your future purchases of lubricants or technical tools!

Michel's Council (Magickart) : Safety with your throat!

"It's an excellent security solution because it's not likely to hang and jump like a pin. My expert advice: the trap with this type of Circlip is to spread it too hard when mounting. If he doesn't stick well to the bottom of the throat of the axis, he has lost his tension and can escape.

The essentials with your Omega circlip (n°image 4.png):

• Precision outer circumclip pliers: Don't try to mount it with the screwdriver, you'll twist the circle or scratch the axis.

• New throat pedal axes: If the throat of your axis is worn or rounded, the circlip will not hold.

• Brake cleaner: Clean the throat perfectly before mounting so that the circlip can be placed without resistance.

A little pro secret: To make sure the circlip is locked, turn it in its throat with the tip of the claw. It must turn freely without any lateral play. At Magickart, we recommend having them in a bag of five: this is the room that loves to jump when you take it apart in the grass of Belmont's paddock!"

Tuto: Mounting and Verification

1. Cleaning: Make sure that the 5mm axis and throat are perfectly clean and free of grease or dirt.

2. Installation: Use a clean outer circumclip clip. Position the circlip in the pin ends, spread it out Just enough to pass on the diameter of the axis.

3. Positioning: Release the claw once the circlip is aligned with the throat. It must be activated with a clear noise ("click").

4. Safety test: Push slightly on the circlip with a flat screwdriver (without forcing). He can't get out of the throat.

Why choose Magickart for your circumclips?

• Higher voltage: Our Omega circlips are made of certified spring steel to withstand intense motor vibrations.

• Permanent stock: Critical security piece, we always have in stock for quick shipment.

• Right to error: If you twist one at the assembly, don't panic, take a bag of it!

Are we securing your pedal axes with these circumclips? A bag of five to be quiet? Do you also want a "Precision Circlip Pin" for a pro mounting?
