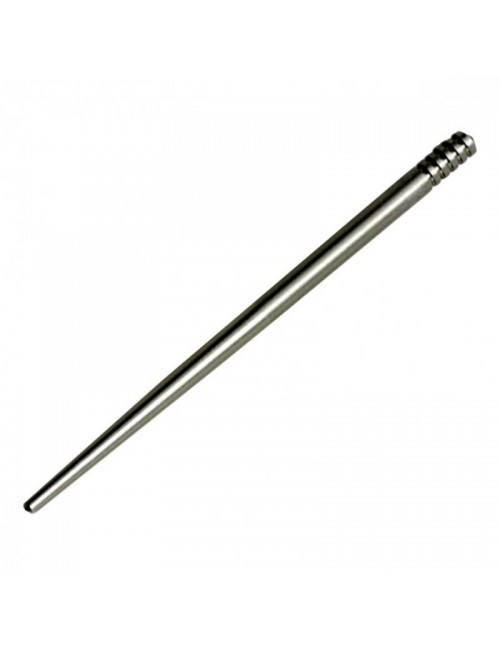

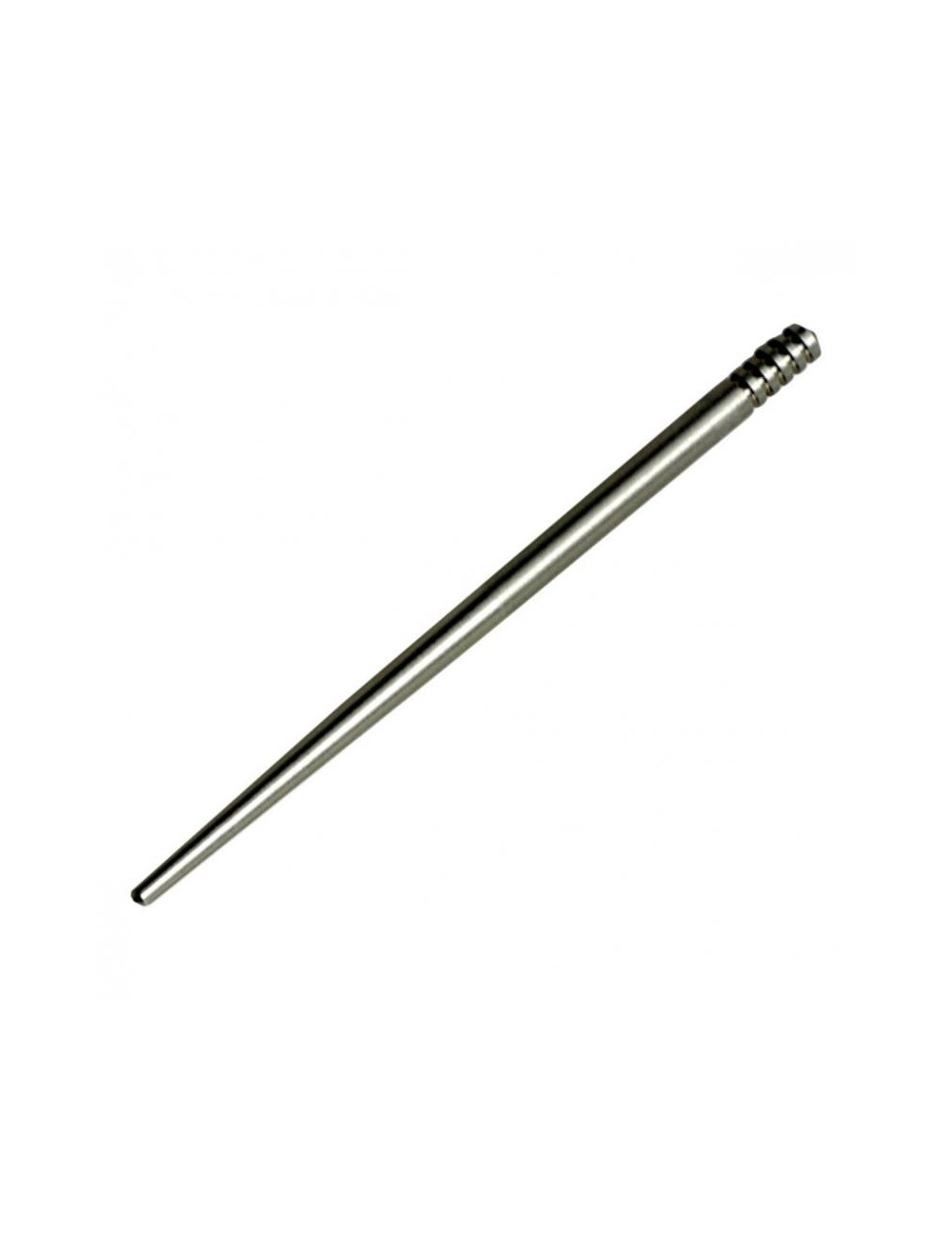

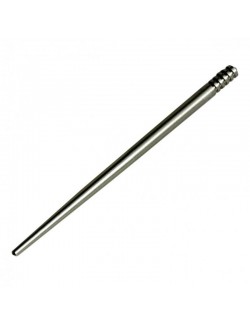

DELL'ORTO nozzle needle

DELL'ORTO Gicleur Needle: Optimize the Performance of Your Karting Engine

DELL'ORTO nozzle needles are essential components for karting carburetors, especially for models Rotax Max, Rotax DD2, TM KZ10, TM R1, and TM R2. The size and adjustment of these hands play a crucial role in optimizing the performance of your engine. Here is a complete guide to understanding the importance of these needles and how to adjust them properly.

Needle Size

The size of the needle directly influences the fuel intake flow. As illustrated on the first picture, a thinner needle enriches the intake flow, thus changing the size range of the sprinkler. To achieve the same result, a thin needle will require a smaller sprinkler, while a larger needle will require a larger sprinkler.

For example, if you use a 130/140 nozzle and the mixture remains too poor, this indicates that the needle is too big. By opting for a thinner needle, you can considerably reduce the size of the sprinkler needed.

It is important to note that, regardless of the nozzle used, between 0 and 90% gas, the flow rate is controlled by the needle, which regulates the quantity of gasoline allowed.

Height of Clip

The position of the clip on the needle is another crucial factor. As shown on the second image, lowering the needle to the fourth cran increases the flow over the entire stroke range of the bushel, similar to the effect of a larger sprinkler. However, it is important not to confuse these two settings because they produce different results.

For basic configurations, it is best to keep the basic clip setting and adjust the size of the nozzle. Changing the height of the needle can enrich the mixture more significantly and over a different range, thus risking de-regulating the engine.

The recommended basic setting is to position the clip on the second step from the top.

Influence of the Needle to Full Power

Even when the handle is full, the size of the needle and the position of the clip influence the adjustment of the main nozzle. As explained above, a thinner needle or clip positioned below will increase the flow, requiring a smaller nozzle to maintain the correct balance of the air-fuel mixture.

Practical Tips for Adjustment

1. Start with the Basic Settings : For standard configurations, always start with the basic setting (clip to the second cran from the top) and adjust the size of the sprinkler according to the observed performance.

2. Test and Adjust : After each adjustment, test your karting on the track to observe the changes. Note performance at different speed ranges for optimal adjustment.

3. Consult the Experts For more advanced configurations or high-performance engines, it may be useful to consult professional preparators or regulators who have the experience to optimize settings.

4. Document your Settings Keep a log of your settings and observed performance. This will help you return to previous configurations if necessary and understand the impact of each adjustment.

Conclusion

DELL'ORTO nozzle needles are key elements to optimize the performance of your karting engine. By properly understanding and adjusting the needle size and clip position, you can significantly improve the efficiency and power of your engine. Whether you're an amateur driver or a professional, these settings can make a difference on the track.

For more information or for personalized advice, do not hesitate to contact carburetor adjustment experts or consult karting forums.

Michel's Council (Magickart): Dell'Orto Needle

"The needle is the 'pin' of the motorist! My expert advice: Never change your main nozzle without first optimizing your needle. It is she who manages the low-rate recovery. If your motor 'suffocates' or 'browse' when you put the gas back on the pin output, it is often the position of the clip that is involved.

A little pro secret: the needle is a piece of wear. By climbing and descending into the needle shaft with the vibrations of the engine, it eventually refines by a few microns. After a full season, your carburation will naturally become richer (fatter) without you changing anything. Replace your needle preventively once a year to keep constant settings and instant engine responsiveness."
