Platelets before seeing tekneex 4 pistons D18

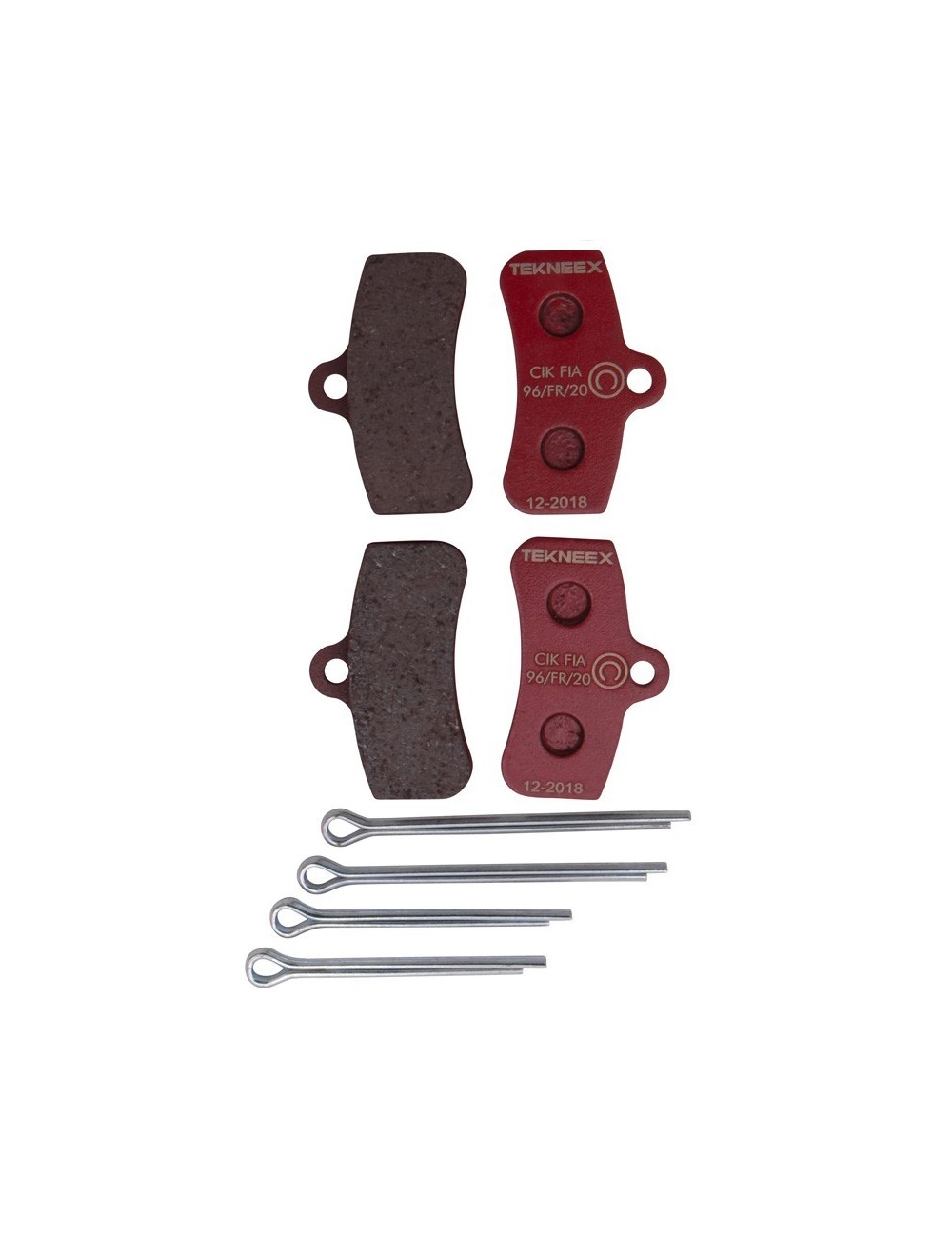

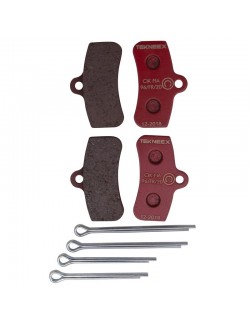

Front pads for TEKNEEX 4 Pistons D18-6MM

Homologation: F10 / Compatible F18G and TEKNEEX brakes not approved F9-F10

Professional description

The Front pads for TEKNEEX 4 Pistons D18-6MM are specially designed to offer a Optimal braking performance in karting, whether in competition or in intensive training. Manufactured according to the strictest standards, they guarantee a Increased durabilitya High thermal stability and an Progressive response at the braking pressure.

Available in two distinct compositions ("C Hard Medium and "D" Soft Medium), these platelets make it possible to adapt the behavior of the braking according to the track conditions, the pilot style and the mechanical requirements of the kart.

Technical characteristics

• Dimensions :
  • Length (L): 48 mm
  • Total thickness: 6 mm
• Composition :
  • Marking "C" : Hard Medium - Ideal for abrasive tracks or drivers looking for reduced wear and maximum longevity.
  • Marking "D" : Soft Medium - Perfect for a more progressive braking and better adhesion in variable conditions.
• Compatibility :
  • Baldow before Tekneex 4 Pistons D18.
  • TEKNEEX brake certified F10.
  • Compatible with TEKNEEX brakes Non-approved F9-F10 and F18g.
• Delivery :
  • Game 4 platelets (2 front left / right).
  • 4 Fixing pins (2 different lengths for a versatile installation).
• References :
  • Pc0351.088 : Platelets marked "c" (Hard Medium).
  • Pc0351.089 : Platelets marked "d" (soft medium).

Key benefits

✅ Adaptable performance : Two compositions available to meet all needs (reduced wear or progressive braking).

✅ Accuracy and reliability : Designed for TEKNEEX 4 pistons stirrups, ensuring uniform braking and fading.

✅ Ease of installation : Comes with fitting pins suitable for fast and secure mounting.

✅ Competition homologation : Compatible with F10 standards, ideal for demanding championships.

✅ Versatility : Adapted to the non-approved Teknex brakes (F9-F10) and F18G, for extended use.

Recommended Applications

• Competition : Categories OK, KZ, X30, and other classes requiring accurate and enduring braking.
• Intensive training : For pilots seeking to reproduce race conditions during testing.
• Upgrade : Replacing worn platelets to restore the effectiveness of the braking system.

Tips for use and maintenance

• Choice of composition :
  • "C" (Hard Medium) : Privilege this version for very abrasive tracks or to maximize the life of the platelets.
  • "D" (Soft Medium) : Opt for this template if you are looking for softer and progressive braking, especially in cold weather or smooth coatings.
• Regular check : Check theResidual platelet thickness and the status of pins after each session to ensure optimum safety.
• Running : Make a progressive break-in New platelets to optimize their performance from the first rounds.

Detailed compatibility

These platelets are specially adapted to the following braking systems:

• TEKNEEX 4 PISTONS D18 (front).
• TEKNEEX brakes F10.
• TEKNEEX brakes not approved F9-F10.
• TEKNEEX F18G brakes.

Why choose Teknex platelets?

TEKNEEX platelets are recognized for their professional quality and their Adaptation to the requirements of high level pilots. That you are looking for pure performance, of sustainabilityor from versatilityThis platelet set will meet your expectations accurately.

Need tips for choosing the ideal composition or for installation? Do not hesitate to consult our technical team for custom accompaniment!
