Unigo 7006 Cover Kit 2 with GPS

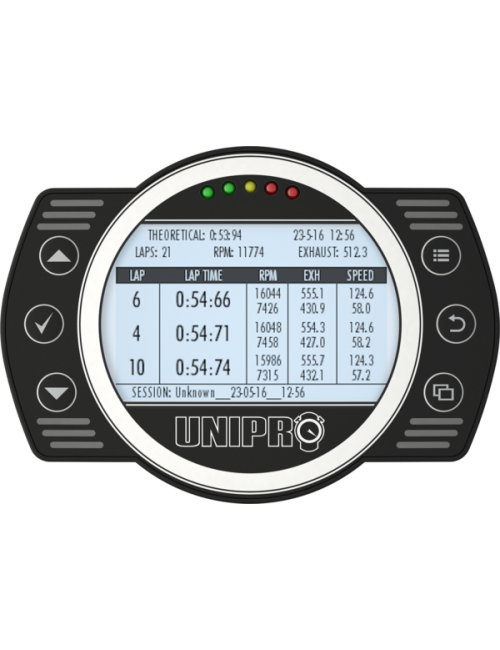

Reference system in competition karting and evolution of Unipro 6003 and then from the UNIGO 6005 having made the success of the brand, theUnigo laptimer 7006 Allows recording and real-time display of your embedded data.

All The devices of the Unigo series are compatible, including those of previous versions.

The improvement made are notable on this new version!

- Wireless data transfer (WiFi, Bluetouth, NFC, ...)

- Increased GPS system accuracy

- IMU sensor integrated into the GPS antenna: 3D plotted

- Audio Feedback

- Weather data: Hygrometry & atmospheric pressure

- and many other improvements (see commercial brochure in attachment)

GPS Tracking / Timing by Sector / Engine Settings / Settings frame, the system Unipro offers a wide range of possibilities from this evolutionary kit.

The data can then be exploited either directly on the display or extracted and exploited on a PC or Mac equipped with the software Unipro (USB or wireless interface).

The GPS antenna integrates complementary sensors: accelerometer / gyroscope (steering wheel position) + ATM hygrometry / pressure. (air tunnel) + IMU sensor (3D).

Laptimer Unigo 7006 Available in 3 Starting configurations:

- Kit 1 (incl. GPS module, RPM cable, power cable and AA battery holder)

This base allows the measurement of time to the lap and engine speed, the operation of sectors, the temperature monitoring of the cooling circuit, obtaining the climatic data, the precise statement of the trajectories combined with the steering wheel position. Data Analysis Software provided: Off Camber Data for PC or Mac.

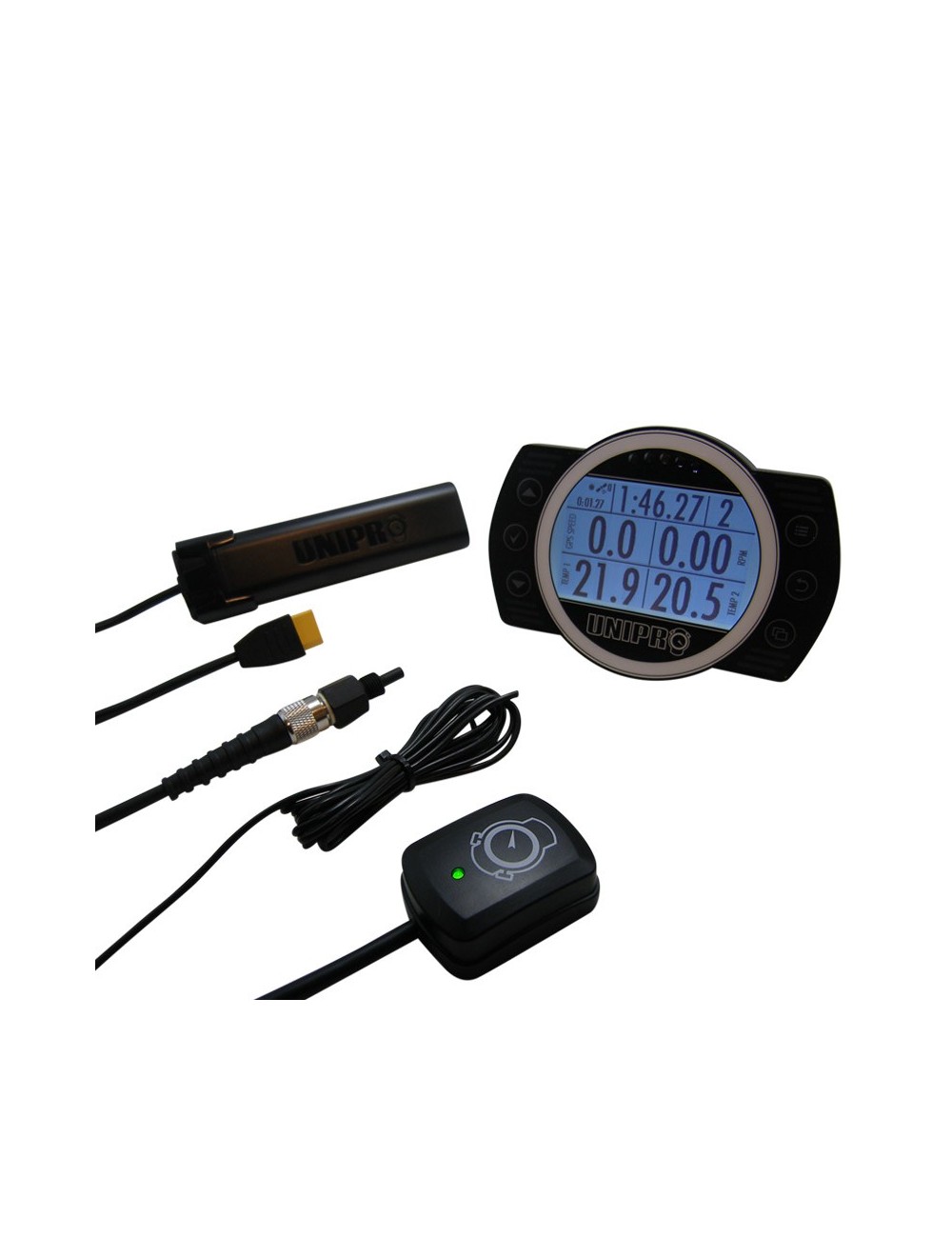

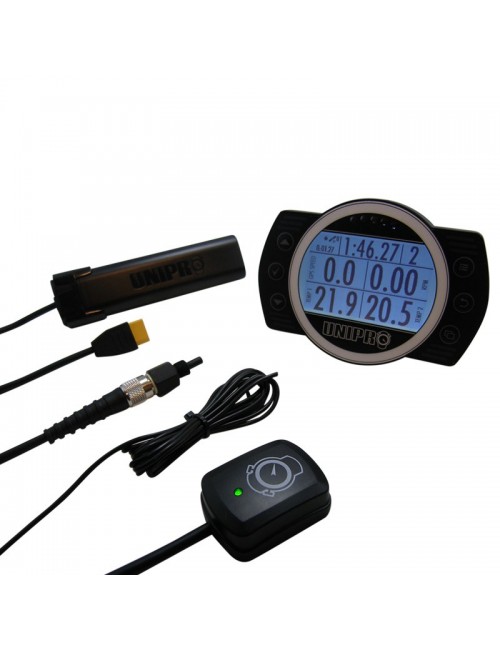

- Kit 2 (incl. GPS module, RPM cable, power cable, AA battery holder and water temperature sensor)

Added on this kit a temperature sensor for the liquid cooling circuit.

- Kit 3 (incl. GPS module, RPM cable, power cable, sensor splitter, water temperature and exhaust sensor, LIPO batter and charger)

Added to this two probes for measuring water and exhaust temperatures and a sensor dispatcher (splitter). The battery holder is replaced by a Lipo battery and charger.

* Data transfer cable and non-supplied AA batteries.

Other sensors can be connected to the central unit in addition to this basic kit to make your system Unipro more perfected. For more information, please consult our range of sensors for Unipro.

Possibilities of evolution:

- Rechargeable battery

- Sensor speed wheels before

- Rear wheel speed sensor

- Cylinder head temperature sensor

- Exhaust temperature sensor

- Angle sensor of gas pedals & brake
