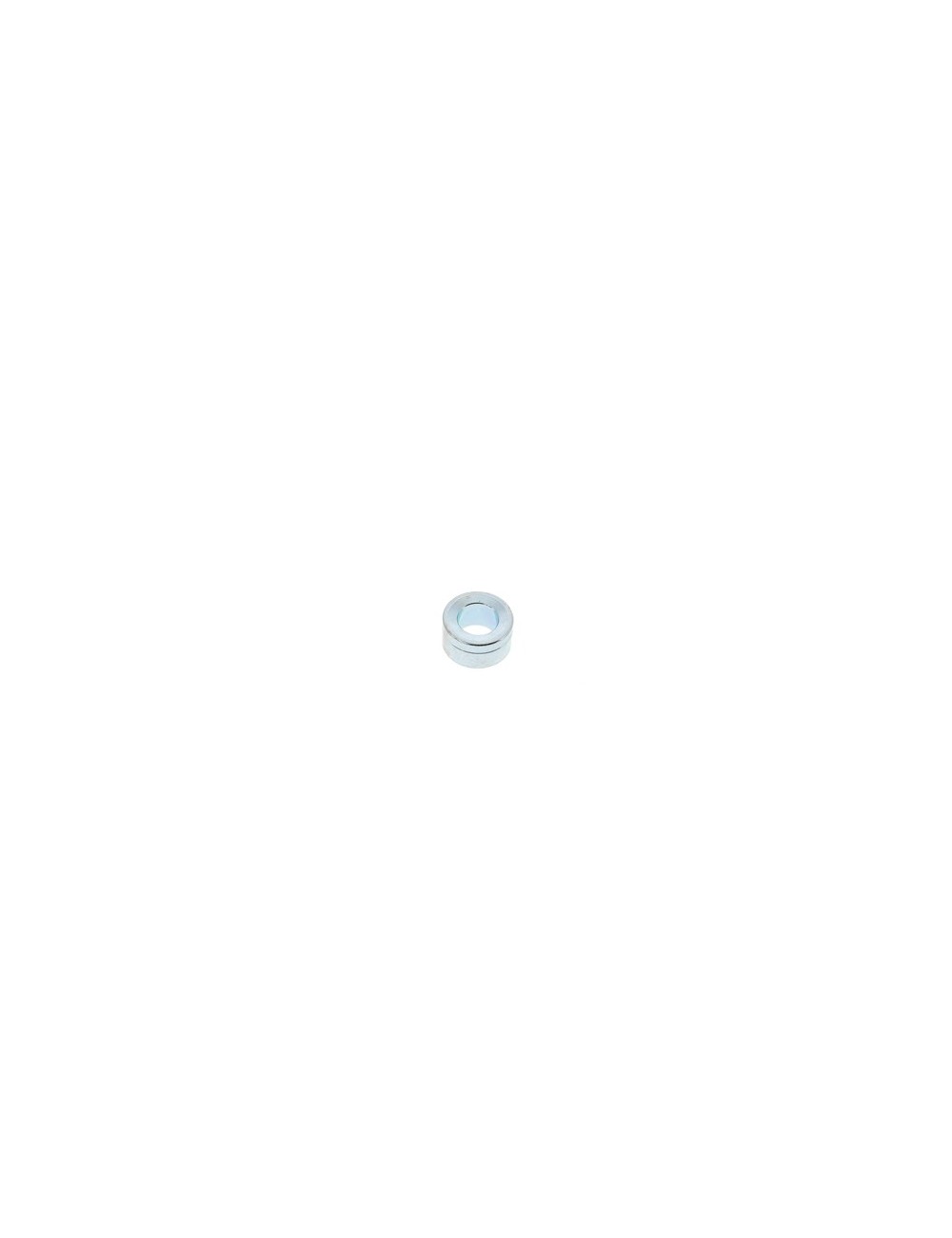

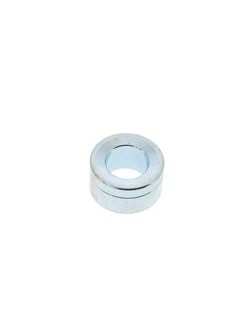

(2) Washer Cylinder head 8,5x15x8 vortex mini 60 fr

The Cylinder head washer 8.5 x 15 x 8 mm for Vortex mini 60 en is an essential attachment element of the high engine. It is positioned at the level of the cylinder head studs to ensure a uniform distribution of the tightening and to ensure reliable binding of the cylinder head on the cylinder.

Designed to withstand the high thermal and mechanical stresses of the mini 60, this washer helps maintain a constant tightening pressure, essential for the proper operation of the engine.

Compatibility

• Engine: Vortex mini 60 en

• Mounting: Fixing cylinder head

• Suitable for mini-leisure and competition mini configurations

Technical characteristics

• Dimensions: 8.5 x 15 x 8 mm

  • Inner diameter: 8.5 mm

  • Outside diameter: 15 mm

  • Thickness: 8 mm

• Material: High resistance treated steel

• Function:

  • Distribution of the clamping charge

  • Cylinder head protection

  • Maintaining the stability of the assembly

Role and importance

The cylinder head washer allows:

• To avoid local crushing of the cylinder head

• To ensure homogeneous tightening

• To preserve the tightness of the cylinder head gasket

• To secure the mounting under strong thermal constraints

A washed or deformed washer can lead to:

• Bad distribution of clamping

• Risk of compression leakage

• Deterioration of the cylinder head plane

Benefits

• Perfect adaptation to the mini vortex 60 en

• High mechanical strength

• Reliability the cylinder head mount

• Simple replacement and recommended during engine repairs

Installation tips

• Check the status of the washers each disassembly cylinder head

• Replace in case of deformation or marking

• Observe the builder torque

• Cross clamping for homogeneous pressure
