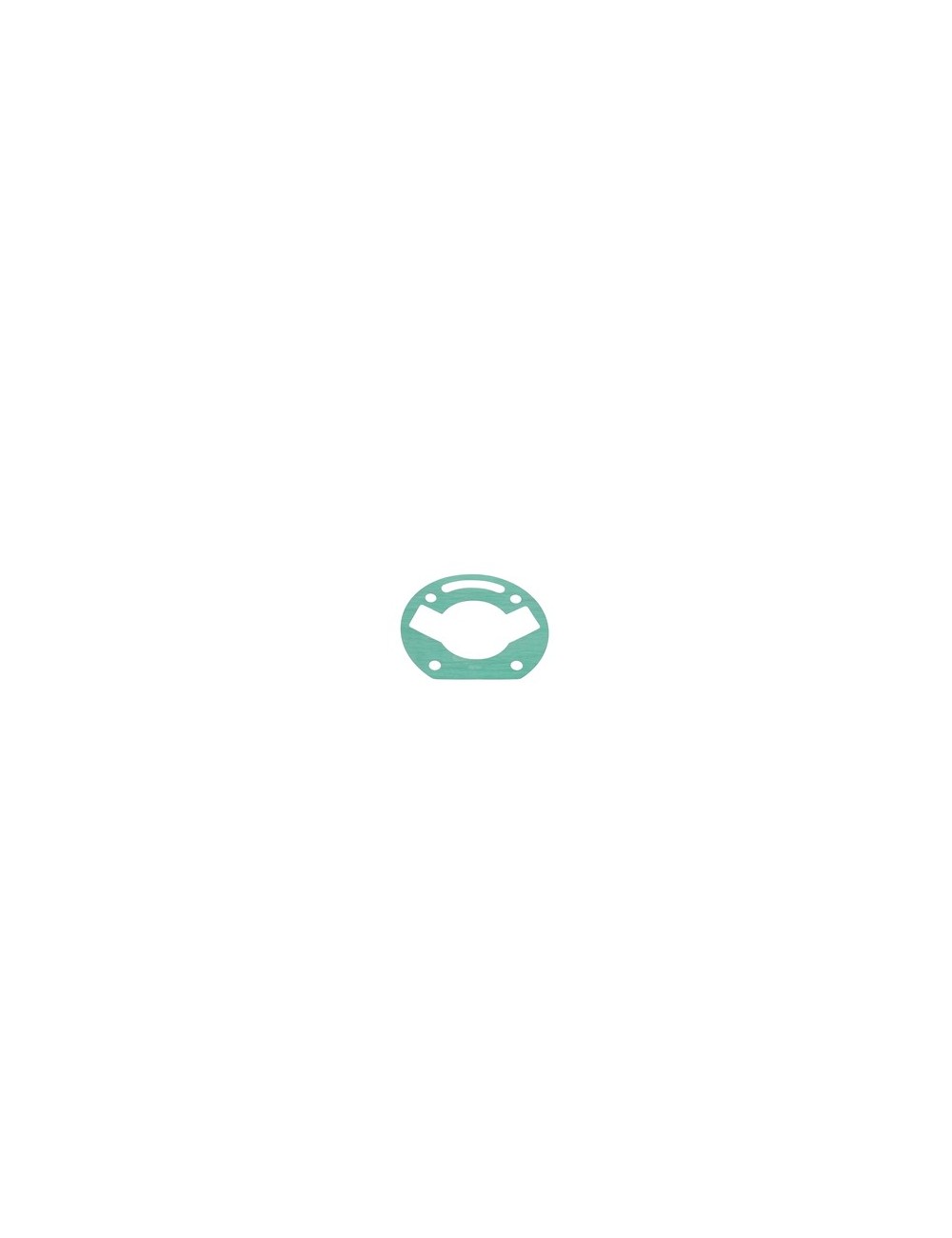

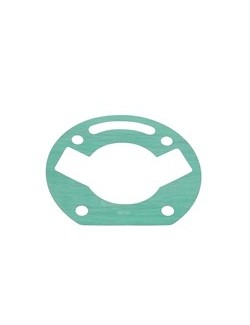

(9) Vortex mini 60 en cylinder base gasket

The Vortex mini 60 en cylinder base seal is an essential piece of the high engine. Placed between the motor housing and the cylinder, it ensures a Perfect sealing While adjusting the height of the cylinder according to the chosen thickness.

The choice of the thickness of the seal directly influences the Engine diagram, the compression ratio and the behavior of the engine. It is a key element in the precise adjustment of the mini 60 en in competition.

Compatibility

• Engine: Vortex mini 60 en

• Use in mini 60 leisure and competition

• Mounting between motor housing and cylinder

Available sizes

• 0.2 mm

• 0.3 mm

• 0.4 mm

• 0.5 mm

Each thickness makes it possible to adjust the height of the cylinder and thus the motor performance.

Technical characteristics

• Type: cylinder base seal

• Material: High temperature specific material

• Function:

  • Low engine / cylinder sealing

  • Adjustment of engine diagrams

  • Performance optimization

• Replacement: Recommended at each disassembly cylinder

Role and influence on performance

The base seal acts on:

• The height of the cylinder

• Compression rate

• Engine behavior (torque / extension)

🔹 Fine seal (0.2 mm) : higher compression, more reactive engine.
🔹 Thicker seal (0.5 mm) : Reduced compression, more flexible motor.

The choice depends on the rules, track conditions and overall engine adjustment.

Benefits

• Precise adjustment of performance

• Reliable sealing

• Perfect adaptation to the mini 60 en

• Essential during a motor repair

Important tips

⚠️ it is strongly advised to make replacement by a karting professional.
Incorrect mounting or the bad choice of thickness can cause:

• Bad engine adjustment

• Loss of performance

• Mechanical risk

• Non-compliance with the technical regulation

Always control the squish and tolerances after assembly.r
