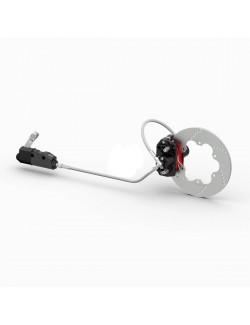

Complete Karting Braking System 2PN100 WP

Improve the security and the performance From your karting with the 2PN100 WP rear braking system, a high-end kit designed to provide optimal braking power and exceptional reliability. This system is ideal for demanding pilots, whether in competition or intensive training.

Composition of the kit:

• 1 Master Cylinder (Master Cylinder) K225 :
  • Bore: Ø 22.2 mm
  • Designed for a precise and progressive answer to the braking control.
• 2 brake pipes (Lines) K938 :
  • Length of the main hose: 75 cm
  • Made of resistant materials for fluid transmission and without loss of pressure.
• 1 caliper (caliper) K381 :
  • Material: Aluminum (lightweight and resistant)
  • Number of pistons: 2 by caliper
  • Bore of the caliper: Ø 30.0 mm
• 2 brake pads (pads) K183 :
  • Total length: 90 mm (± 1.5 mm)
  • Length of the friction material: 88 mm (± 1.5 mm)
  • Height of the friction material: 31.5 mm (± 1.5 mm)
• 1 ventilated brake disc K444 or K238SS-200 :
  • Diameter: Ø 200 mm (± 1.5 mm)
  • Thickness (new): 8 mm or 12 mm (± 1 mm)
  • Designed for a Optimum thermal dissipation and increased resistance to wear.

Homologation and standards:

• CIK-FIA homologation : No. 005-B2-06
  • Guarantees compliance with international safety and performance standards in competition.
• Ventilated disk : Yes (for better heat evacuation and increased durability).

Why choose this braking system?

1. Maximum performance and safety

• Powerful and progressive braking Thanks to the master cylinder of precision and the double piston stirrups.
• Ventilated disk To prevent overheating and maintain constant efficiency even when repeated braking.
• High-end materials (Aluminum for stirrups, durable friction materials for platelets).

2. Easy installation and maintenance

• Complete kit and ready to go up : Everything is included for quick and uncomplicated installation.
• Compatibility : Suitable for most competition karting chassis.

3. Sustainability and reliability

• Wear resistance : Discs and platelets are designed to support the extreme stress of karting.
• Inspection and replacement facilities : All components are accessible and replaceable individually.

Tips for use and maintenance

1. Replacing platelets and system inspection

• During the replacement of plateletshe is imperative to change also:
  • The screws, axes, nuts and pins to guarantee security.
  • Check the state of disk, pump, lever, disc holder and floating fastener.
• Regularly check the thickness of the disc : A used disc must be replaced to avoid a decline in performance and risk of breakage.

2. Running platelets and disks

• Avoid icing (Formation of a smooth layer and hard on the pads and disk, reducing braking efficiency):
  • Follow the Manufacturer's breakdown instructions :
    • Carry out Progressive braking In the first rounds to allow good adhesion between the pads and the disc.
    • Avoid brutal braking during the break-in phase.

3. Regular maintenance

• Clean regularly The stirrups and discs to eliminate dust and grease residues.
• Check the brake fluid level and purge the system if necessary to avoid air bubbles.

Who is this product for?

• Competition pilots : For those looking for accurate and reliable braking in the race.
• Intensive practitioners : Ideal for frequent training where performance and safety are essential.
• Karting schools and clubs : A robust and durable system, perfect for intensive use.

Available on Magickart.eu

The 2PN100 WP rear braking system is an essential investment for any pilot wishing optimize your performance while guaranteeing a maximum safety. Find this kit and many other occupational room parts on our online store.

Need advice for installing or choosing your parts? Our team of experts is at your disposal to guide you!
