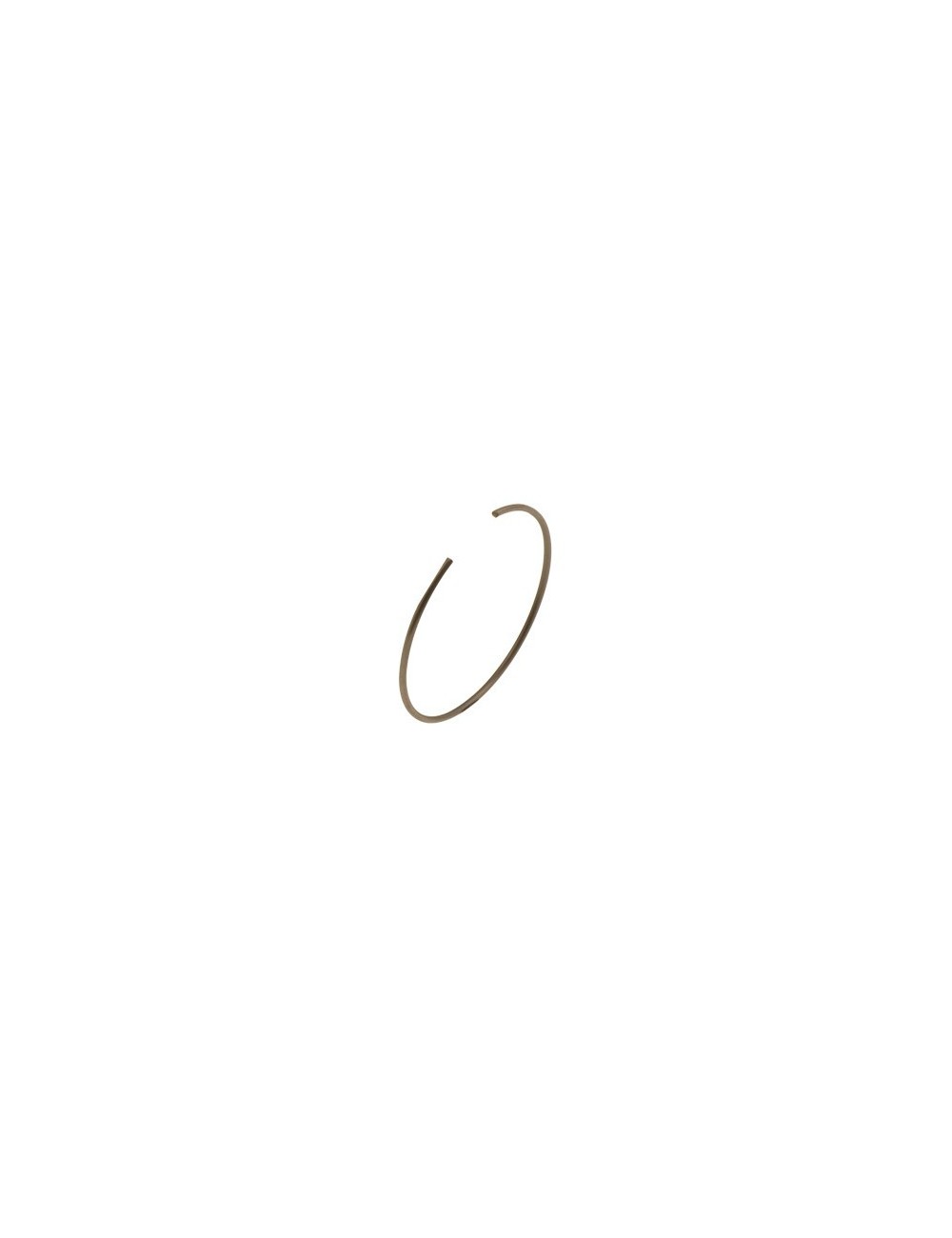

Cup clip brake caliper OTK Origin

Perfectly secure the mounting of your cups (square seals) and rear brake caliper pistons with this holding clip specific. It's a part of the group's original builder for group karts OTK (Tony Kart, Kosmic, Exprit, Redspeed, etc..)

⚠️ IMPORTANT: THE QUALITY MAGICKART WARRANTY On our site, we want to make it clear that the clips sold are constructor origin clips (OTK Genuine Parts). These are not not "compatible" or "adaptable" pieces as can be found on some third party sites. To ensure the safety of your braking system and the correct positioning of the cups, choose the requirement of the original room OTK.

📖 The small story: the clip player DEPAUL

It was during a private test session, in full preparation for the Championship of France. Michel, kZ driver, returns to the booth, complaining of a spongy and irregular rear braking. After a few rides, he even feels that the right rear wheel tends to block.

His mechanic dismounts the rear caliper. At the opening, this is the surprise: the clip to maintain a piston cup jumped from his throat. Result, the cup was no longer perfectly in support, leaving the piston work through, causing hydraulic pressure loss and a startup of plug. The clip in question was a "compatible" model a little too flexible that had relaxed with heat and vibration.

Fortunately, the official dealer OTK present on the circuit had the piece in stock. They replaced the defective clip with a original clip OTK. After a complete purge, michel's braking was again incisive and securing.

The moral of this story: The function of this small clip is crucial. It keeps the cup and piston in place in the bore of the stirrup. A poor quality clip or worn that jumps, this is the assurance of a major malfunction of the braking. Only use original clips.

Compatibility

This holding clip is designed to secure the cups and pistons of the rear braking systems brake systems OTK following:

• SA2

• BS6

• BSD

• BWD

It equips the vast majority of the group's rear calipers OTK (Tony Kart, Kosmic, Exprit, Redspeed, Gillard, EOS) SA2, BS6, BSD and BWD.

Technical characteristics

• Type: Maintenance clip / Circlip for bore / Stop assignment.

• Function: Keeps the cup and piston in position in the body of the stirrup.

• Origin: Original room OTK Kart Group (manufacturer's warranty.)

• Sold by unit: Quantity required variable depending on the caliper model (usually 1 clip per piston.)

• Material: High resistance treated spring steel.

• Form: Open ring (circlip type without eyelets) Designed to fit into a machined groove inside the stirrup.

🔧 Michel's trick

"Michel, our technical expert, recommends you: the replacement of this clip is done when the caliper is complete. When disassembly, use a circlip clamp for adapted bore to not distort the clip. Inspect the throat in the caliper: it must be clean and unmarked. When reassembling the new clip, make sure it is perfectly engaged in its throat all over. Take a test trying to run it slightly by hand to check his seat. If you are not equipped, do not force and confide the montage to a pro. "

⚠️ Security Council: The braking system is a vital security organ. If you notice a distorted clip, broken or absent, do not take the track. The assembly of this part must be done by a competent person. Check his correct positioning before each session.

Order your original maintenance clips OTK at Magickart for reliability and performance without compromise. Fast shipping.

📋 Technical summary
