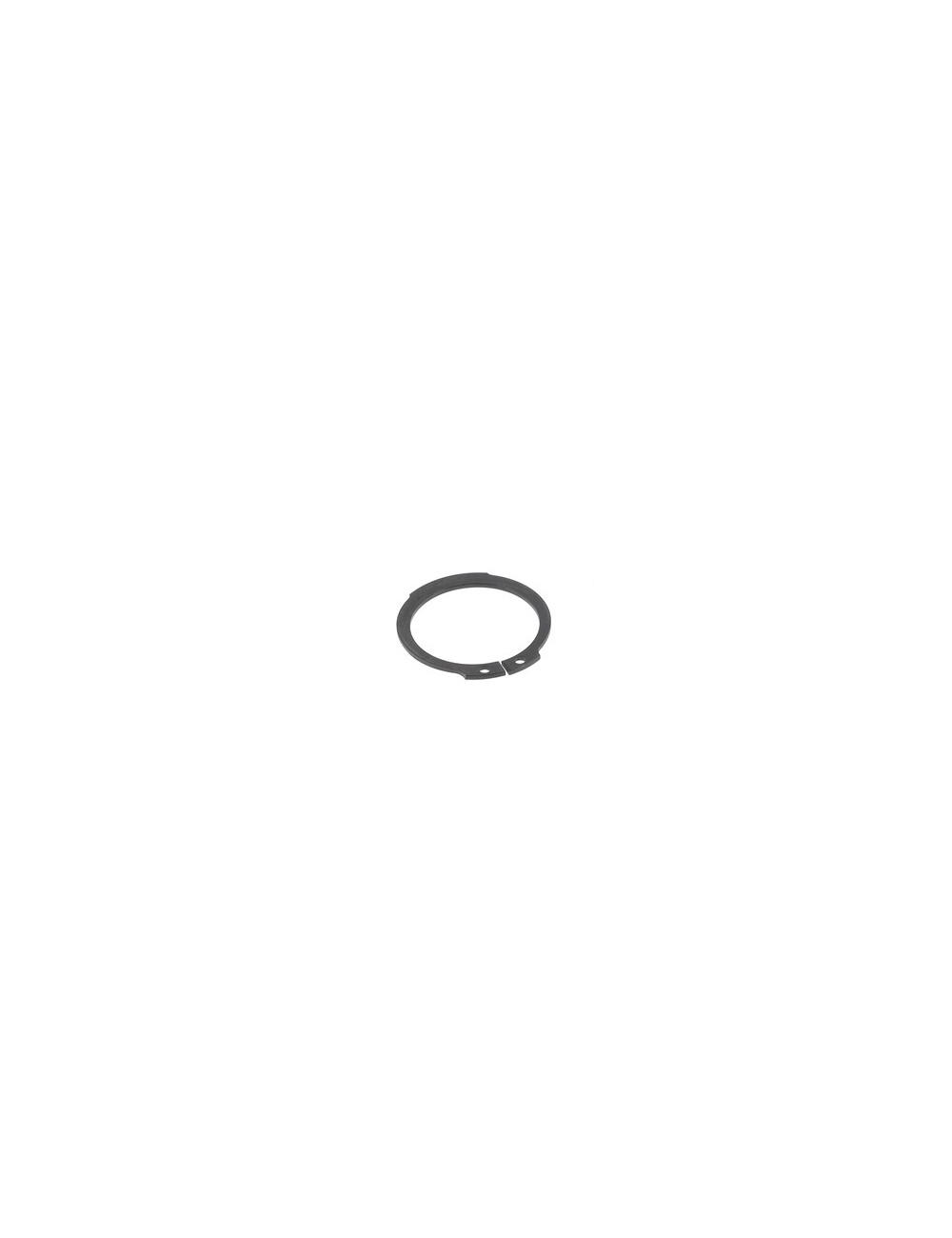

Circlips Ø35mm of secondary gwwinhes tmkart

The 35 mm diameter circlips is an essential safety component designed to lock the position of the elements on the transmission shaft and the secondary sprocket of competition TM engines. Made in high resilience steel, it resists perfectly with axial stresses, intense vibrations and high rotation regimes encountered on circuit.

A piece of original manufacturer essential to ensure that no longitudinal game comes to disrupt your gearbox, ensuring reliability and safety at each session.

Main features:

• Product: Circlips / Stopping ring for secondary gear

• Diameter: 35 mm

• Application: Transmission / Secondary Tree TM Kart

• Compatibility: TM Kart KZ / K9 / KZ10 / R Series Engines

• Availability: In stock on Magickart.eu

The history and usefulness of the product (track side)

In a Karting Kz 125cc, the transmission cash from considerable forces during frank accelerations and violent downsides. A tired, relaxed or reused circlip can yield under the effect of vibrations and cause the mission or disay of a pinion. The systematic use of a new circlips is the only guarantee to preserve the integrity of your gearbox.

The mounting tuto (step by step)

To correctly install your secondary gear circlips:

• Disassembly: Remove the old circlips with a suitable circlip clip, taking care not to mark the shaft grooves.

• Cleaning: Thoroughly clean the throat and the location to remove any trace of oil or filings.

• Setting up: Gently spread the circlips Ø35 mm new with the clip and position it flat in its dedicated throat.

• Control: Visually check and touch that it is perfectly retracted throughout its circumference in its slot to prevent stall while rolling.

Michel's Tip (Paddock Expert Council)

"Do not reuse never An old circlips during a box revision! By opening up to disassembly, he loses his elastic strength. For a few cents, systematically replace your circlips by new avoids a multi-hundred motor breakage on the track. "

FAQ SEO (Frequently Asked Questions)

• Q: On which part of the engine is this circlip Ø35 mm?

  • A: It is intended to maintain and lock at the secondary gear and transmission shafts on TM Kart engines.

• Q: Can I reuse a circlip after a revision?

  • A: Absolutely not. As absolute safety measurement, circlips are single-use parts that lose their elasticity after disassembly.

• Q: Are the parts sold on Magickart.eu of TM Racing origin?

  • A: Yes, we only distribute certified manufacturing-certified components to ensure irreproachable reliability and mechanical resistance in competition.
