Full Sheath Guidance Kit 50 ° dell'orto

Presentation: the perfect angle for restricted spaces

The 50 ° sheath guidance kit dell'orto is a high precision connection set that screws on the top cap of your carburetor (PHBG, VHSB, etc.). With its inclination pronounced at 50 degrees, it offers an ideal alternative to standard elbows of 40 ° or 90 °.

• Natural aerodynamic curve: The 50 ° inclination is specifically calculated to provide a plunging and fluid trajectory to the floor, limiting the internal friction of the accelerator cable.

• Ideal "big carbus" & compact chassis: Perfect when the carburetor is found very close to the fiber seat back, fuel tank or air box holder. He avoids that the sheath comes to fold or butter against an obstacle.

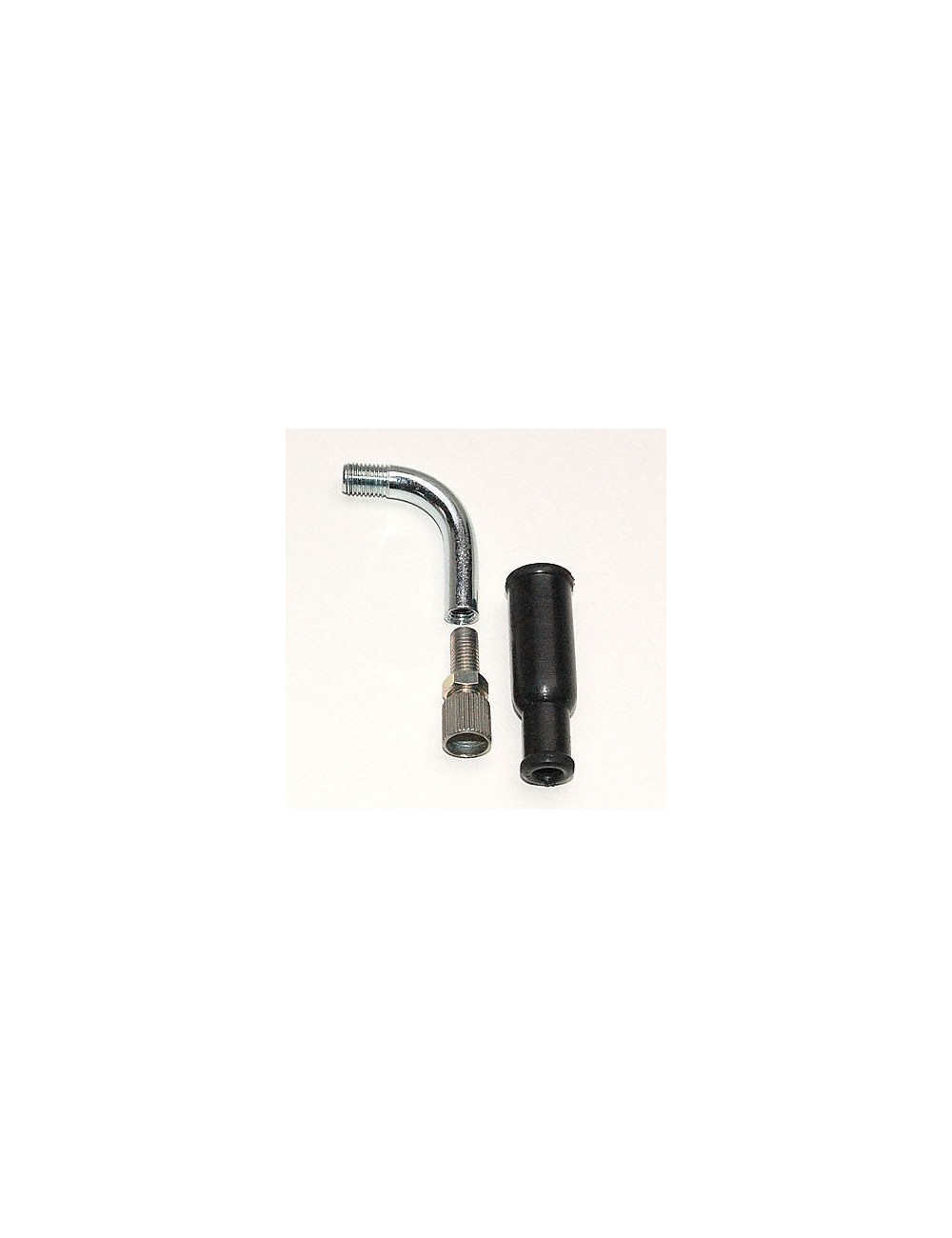

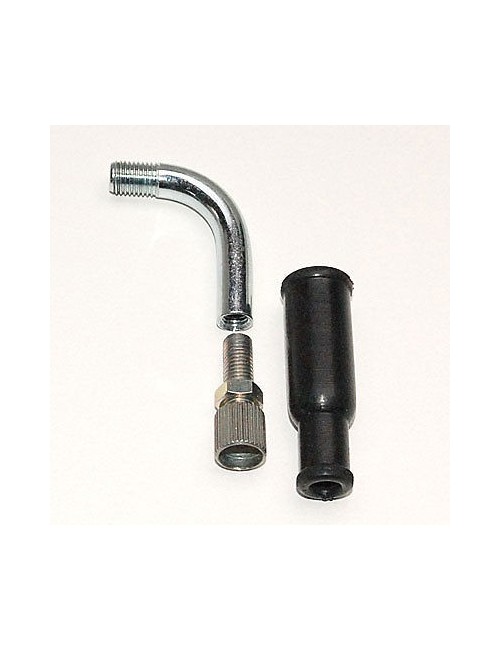

• Universal Dell'ORTO package: The kit includes the rigid steel cottage tube, the threaded cable tensioner, the locking nut to freeze your adjustment and the flexible rubber sealing cap.

- Technical specifications

- Installation, voltage and safety

1. Setting up: Screw the elbow base on the lid of your carburetor. Orient the elbow angle so that it points directly to the axis of your pontoon gas sheath.

2. Locking the tensioner: Adjust the voltage using the knurled screw. Once the ideal voltage obtained (the pedal must open the bushel 100% without stopping it), securely lock the locknut to prevent vibrations from disturbing your carburation.

3. Anti-moisture cap: Do not neglect the installation of the rubber sleeve. In the event of a wet track or washing, it prevents water from flowing along the cable and finish at the bottom of the carburetor tank.

💡 Michel's trick

"The elbow at 50 ° is the secret of the mechanics when the pilot seat is down to the maximum to balance the masses of the kart. The trick: In this configuration, an elbow at 40 ° is too straight and tapped in the seat, and a 90 ° elbow breaks the movement too much. The 50th offers the perfect trajectory! My Pro Council: Regularly check the status of the gas cable just at the outlet of the metal tube. By steadily pivoting with motor movements, the cable can fray at this specific location. If you see a single strand of damaged steel, change the cable immediately before your next entry on track! "

❓ FAQ SEO (Frequently Asked Questions)

Q: What is the difference in Feeling between the 40 ° kit and the 50 ° kit?

A: On the purely mechanical level, the difference is minimal. The choice between 40 ° and 50 ° is only based on the space available on your chassis so that the sheath draws the cleanest and the most natural curve possible.

Q: Does this kit mounts on motor carburetors Rotax Max of origin?

A: Yes, the engines Rotax Max Using the Dell'Arto VHSB 34 carburettor, this 50 ° guide kit is fully compatible and is very convenient for cleaning the battery pack or the airbox.
