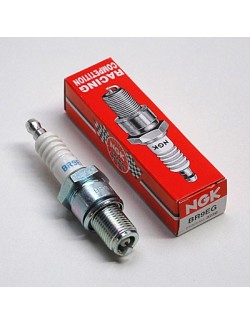

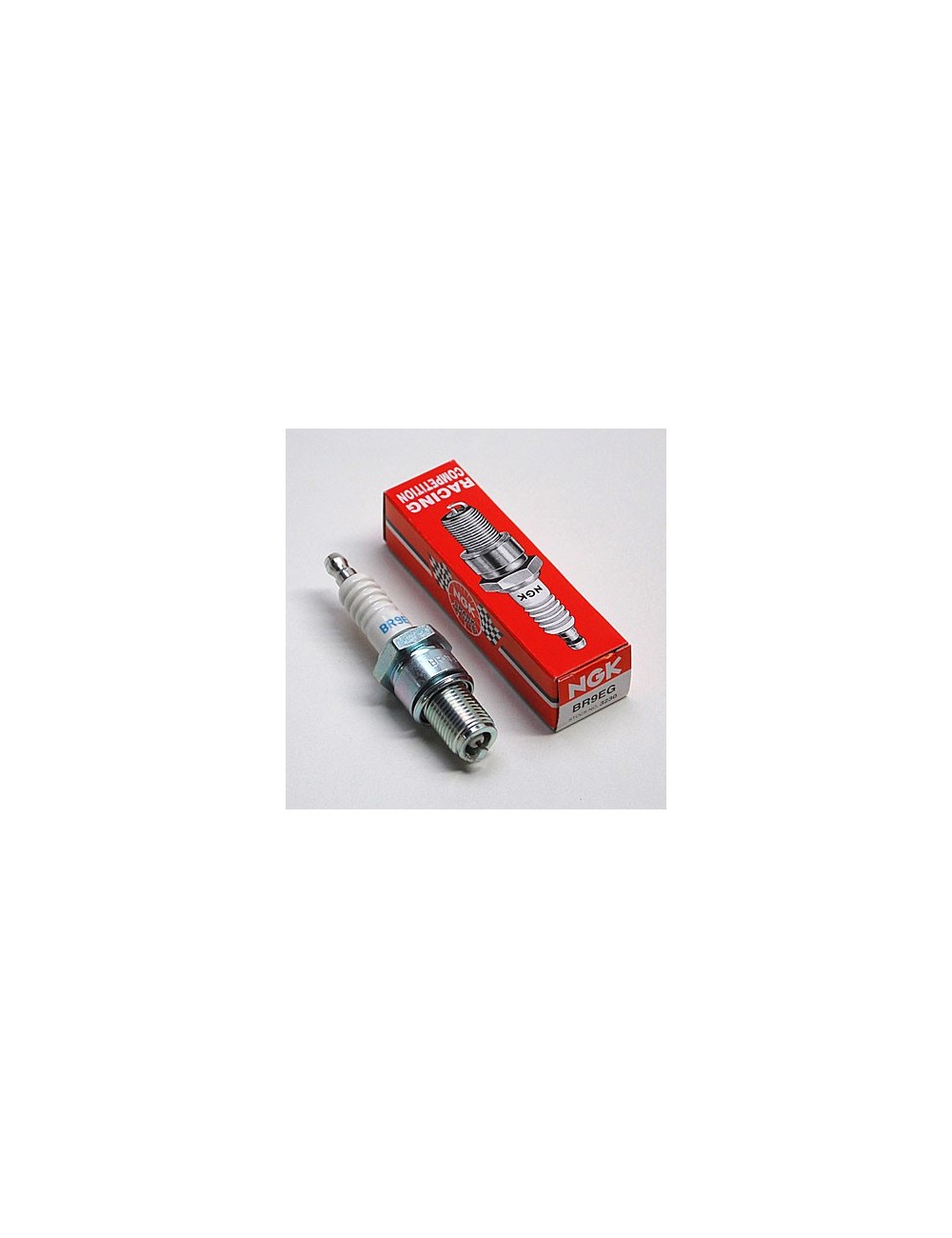

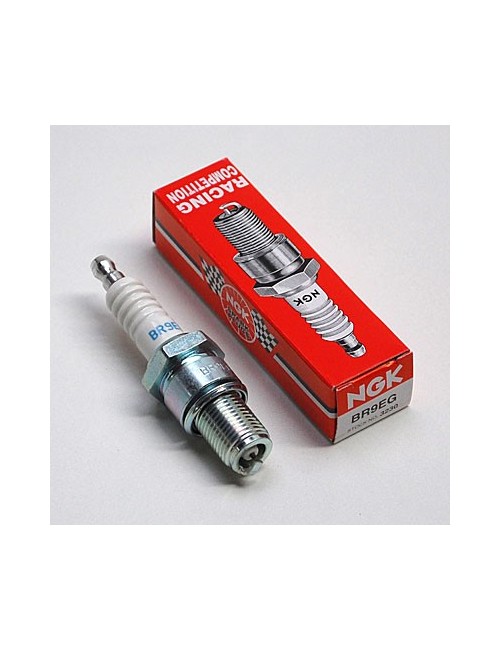

NGK BR9EG Candle

NGK BR9EG Candle

Manufacturer: NGK Manufacturer number: 3230

The bougie NGK BR9EG is specially designed to provide optimal performance in karting engines, including those of the Iame brand such as the X30 and KA100. Here are the detailed features of this bougie :

• Opening the key: 20.8 mm

  • This dimension allows easy installation and removal of the bougie Using a standard key.

• Exterior thread: 14.0 mm

  • The 14 mm thread provides secure attachment in the engine cylinder head.

• Thread length: 19.0 mm

  • The 19 mm length guarantees a solid and stable outlet in the engine.

• CONNECTION: SAE with screws

  • The SAE with screw connecting facilitates the connection of the ignition cables, ensuring an efficient transmission of the spark.

• Ignition position: 1.0 mm

  • The 1.0 mm ignition position optimizes fuel combustion, improving engine performance.

• Central electrode: Nickel

  • The nickel central electrode offers excellent conductivity and durability, even under intensive operating conditions.

• Mass electrode: 1 electrode

  • The single ground electrode provides a concentrated and powerful spark, essential for effective combustion.

• Antiparasitting: 5 KOHM

  • The antiparasitting of 5 KOHM reduces electromagnetic interference, improving the quality of the spark and overall engine performance.

• Seat: Flat trim

  • The flat trim seat ensures perfect sealing, preventing gas leaks and now the combustion pressure.

This bougie is ideal for karting engines requiring accurate and reliable ignition. Its robust design and high quality materials guarantee a long service life and constant performance, even in demanding race conditions. It is particularly suitable for IME X30 and KA100 engines, providing optimal combustion and increased reliability.
