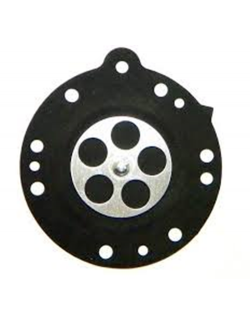

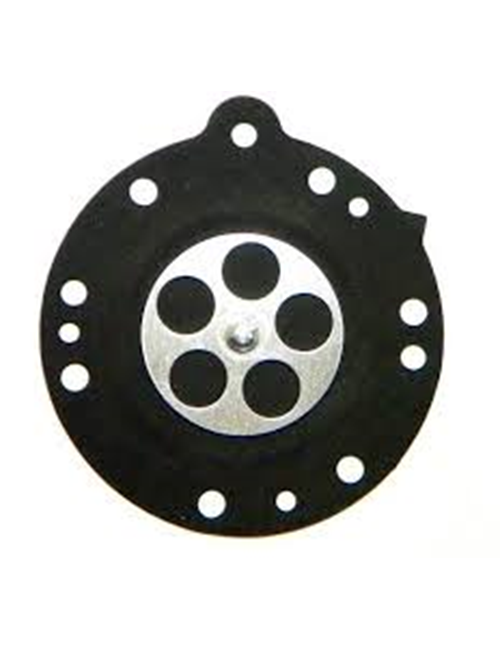

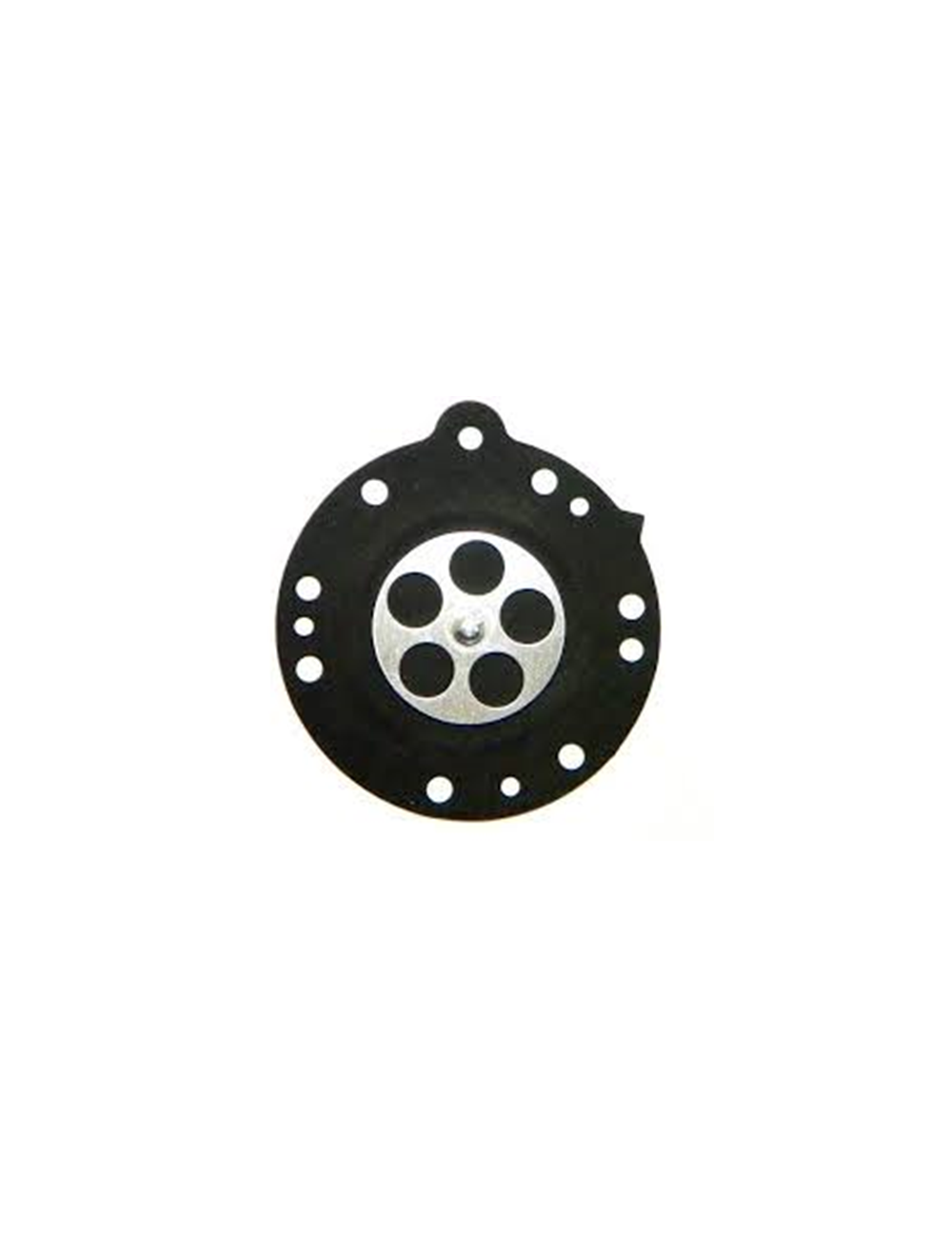

Tillotson's Black Essence Black Essence Carburetor Membranging is an essential part to ensure the smooth functioning and regularity of your carburation in karting. Subjected to gasoline flows and pressure variations, this membrane provides accurate fuel regulation to the engine.

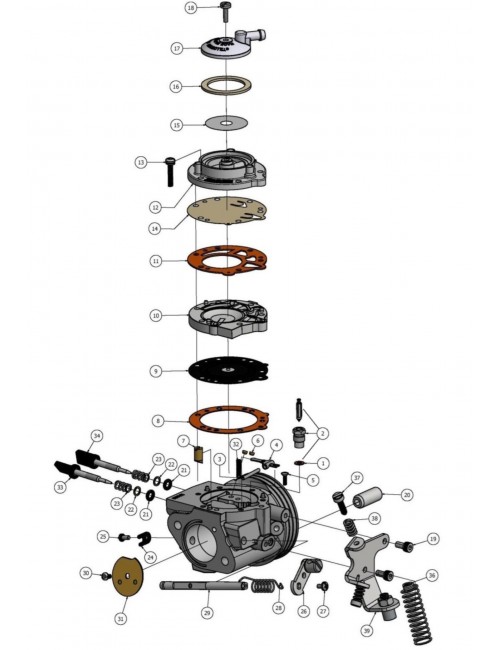

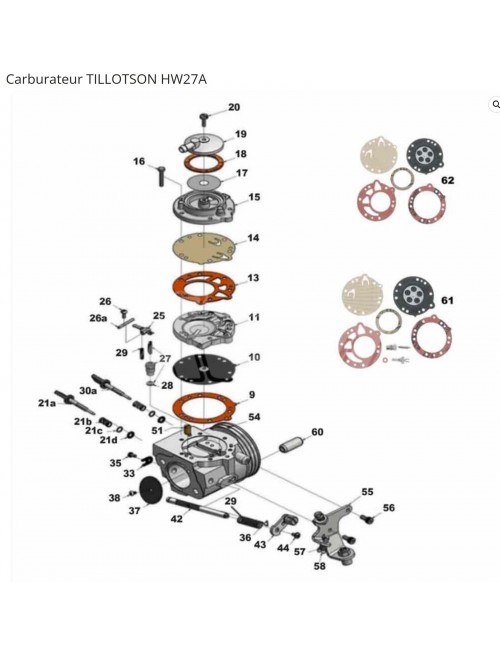

It adapts perfectly on the carburettors of Iame engines, ending precisely identified on the technical exploded views under the Landmark 10 for X30 and Gazelle models, and under the Landmark 9 for the KA100 model.

Main features:

• Product: Gasoline carburetor membrane

• Color: Black

• Brand: Tillotson

• Compatibility / benchmarks on exploded views:

  • Mark (10) For Iame X30 and Gazelle engines

  • Mark (9) for Iame KA100 engine

• Availability: In stock on Magickart.eu

The history and usefulness of the product (track side)

In karting, a stable carburation is the secret of a powerful engine over the entire diet range. With time and repeated contacts with gasoline, the carburetor membranes end up melting down, lose their elasticity or deteriorate, causing miscarriages or variations in wealth. Regular replace your Tillotson membrane guarantees an efficient fuel pump and frank releases at each turn output.

The mounting tuto (step by step)

To replace your carburetor membrane in the rules of the art:

• Disassembly: Remove the engine carburetor, then gently remove the pump cover by keeping not damaging the screws.

• Cleaning: Remove the old membrane and thoroughly clean the seal plane and the carburetor ducts with a suitable product.

• Setting up: Position the new Tillotson black membrane respecting the order of joints and valves recommended on the technique burst (marker 10 for X30 / Gazelle or marker 9 for KA100).

• Tightening: Reassemble the lid and screw moderately into the cross to ensure perfect seal without overwhelming the material.

Michel's Tip (Paddock Expert Council)

"Do not throw a drink distracted on your membranes at the beginning of the season! A tiring or hardening membrane is losing precision to your carburation, especially at the end of the handle. Always keep a tillotson membrane in advance in your toolbox to adhere to any unpinsed diet drop. "

FAQ SEO (Frequently Asked Questions)

• Q: For which engines is this tillotson membrane adapted?

  • A: It is designed for IME X30 engines, Gazelle (marker 10) and KA100 (marker 9).

• Q: Where is this piece on the exploded technical views?

  • A: It corresponds to the Landmark 10 for X30 and Gazelle engines, and Benchmark 9 For the KA100 engine.

• Q: Why does he have to regularly change his carburetor membrane?

  • A: With exposure to gasoline and pressure variations, the membrane loses its flexibility, which affects the correct supply of the engine and the stability of the carburation.
