Nut Bride M8 (8 mm 12 mm) TMKART

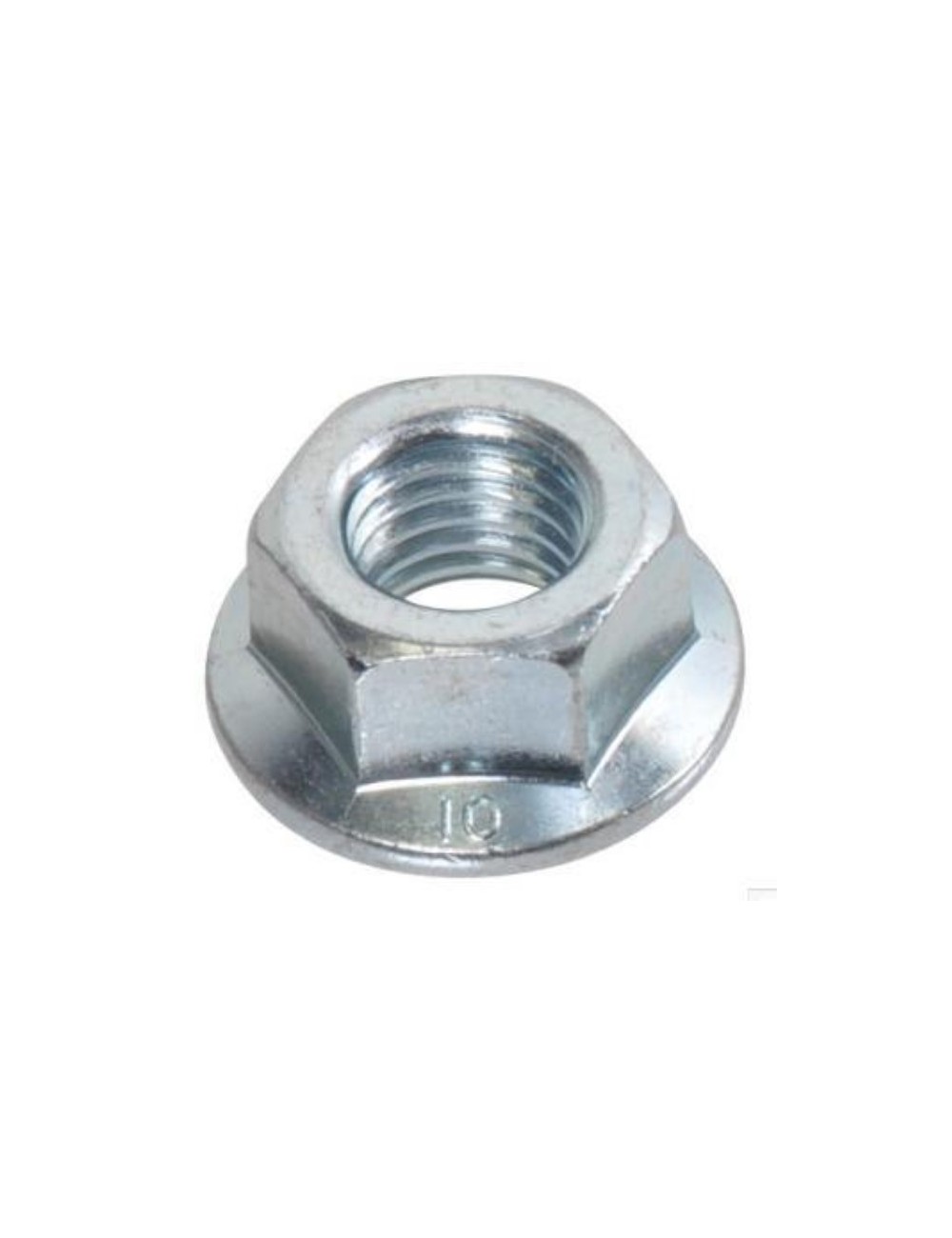

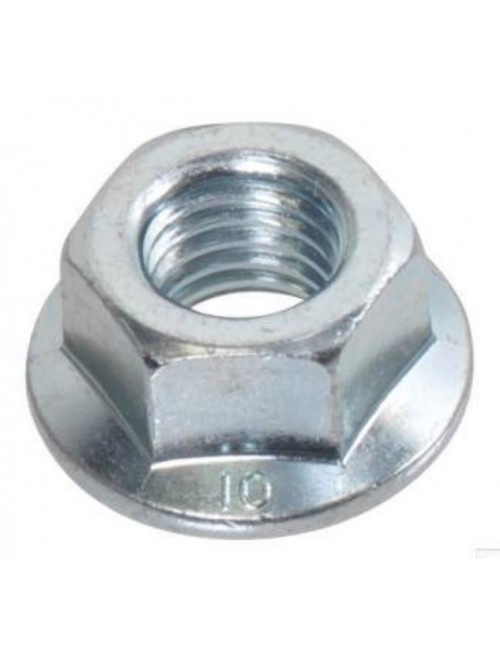

-Complete product of the original TM KART CH12 Nut M8 Nut - Part N ° 20 Exploded View Engine KZ-R3

Guarantee the absolute maintenance of your high-engine thanks to theOriginal TM KART CH12 Cylinder Cylinder Nut. Essential Assembly Part on Italian Trademark Competition Engines, this reinforced nut ensures the locking of your cylinder on the motor housings as well as the closing of your cylinder head.

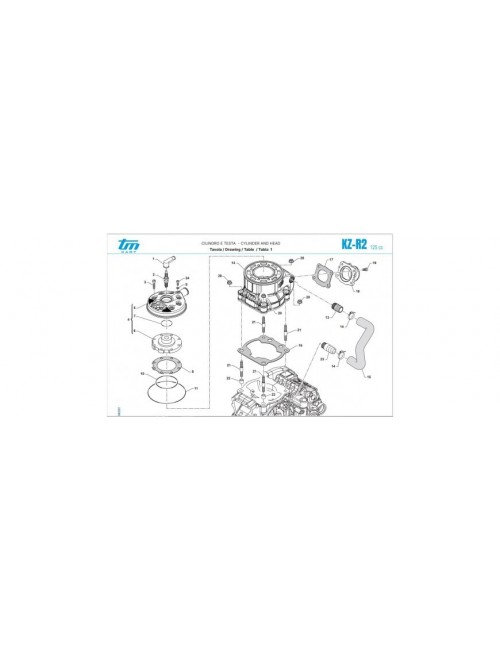

On the official Exploded View (Tavola 1 - Cylinder and Engine Head KZ-R3 Total Black), this nut carries the landmark n ° 20. Its integrated-specific base (enlarged flange) allows to spread the clamping pressure in a perfectly uniform manner around the stud (marker 21), avoiding crushing or marking the aluminum range of the cylinder (marker 12) or the Cylinder head. Footprint CH12 (12 mm key) offers an excellent grip for your torque tools during high-engine revision operations.

- The trick in Michel (the corner of the expert)

* "Hi the mechanos! The nut n ° 20 of the exploded view, it is the m8 nut with 12 mm base that plates your cylinder R3 against the bottom-engine and closes your cylinder head. As the cylinder heats and undergoes a huge thrust each Explosion, these nuts work enormously in extension.

My stand trick for a perfect and deformation cylinder tightening: cross tightening at torque wrench !

When you go up your cylinder or your cylinder head with these new M8 nuts, never tighten them blind with a flat key to PIF. First approach the 4 hand nuts, then apply the tightening torque advocated by TM Kart (usually around 22 to 24 nm) in stroke (in x) and in 2 or 3 progressive passes (for example 12 nm, 18 nm then 24 nm).

This ensures that the base joint (marker 16) crashes 100% homogeneously and that your Nicasil shirt is not twisting. A set of new base nuts and a tightening to the torque is the key to preserve your high-engine! "*

- Installation guide (Location n ° 20): step by step

- SEO FAQ (Frequently Asked Questions)

Q: Which component of the kz-r3 exploded view corresponds exactly this nut n ° 20 ?

A: On the TM Kart Technique Plate (Tavola 1 / Cylinder and Head), the Landmark no. 20 designates the 12 mm (CH 12) m8 (CH 12) nut nuts that come to screw on the studs (N ° 21) for blocking the cylinder (# 12) on the bottom-motor.

Q: Does this nut require an extra washer during assembly ?

A: Not. The specificity of this original nut is to directly integrate its own enlarged base / flange machined under the body of the nut. She plays the role of washer by perfectly spreading the clamping stress on the aluminum flange of the cylinder.

Q: Does this m8 CH12 nut suitable for previous generations of TM engines ?

A: Yes I do. The CH12 Footprint M8 / Cylinder Hollar nuts are the historic standard of TM Kart. They adapt perfectly on the KZ10, KZ10B, KZ10C, KZ-R1, KZ-R2 and KZ-R3 blocks perfectly.
