Summary: Master your carburation by temperature

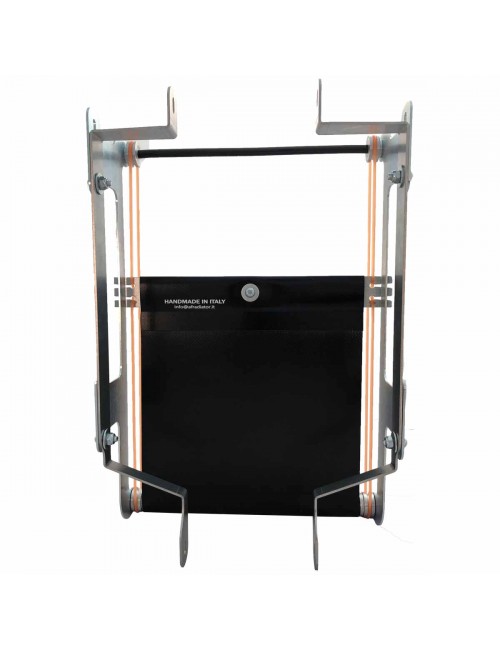

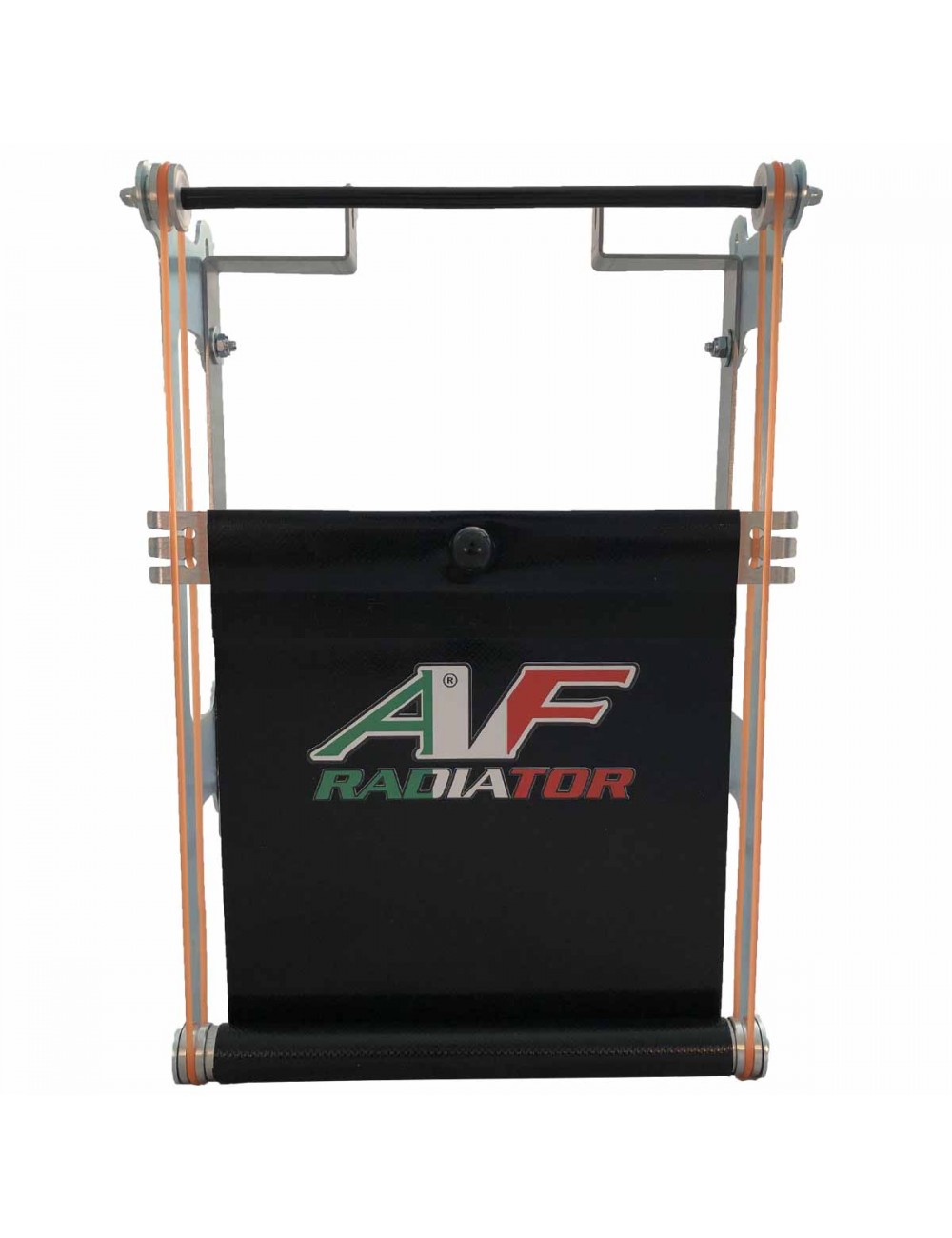

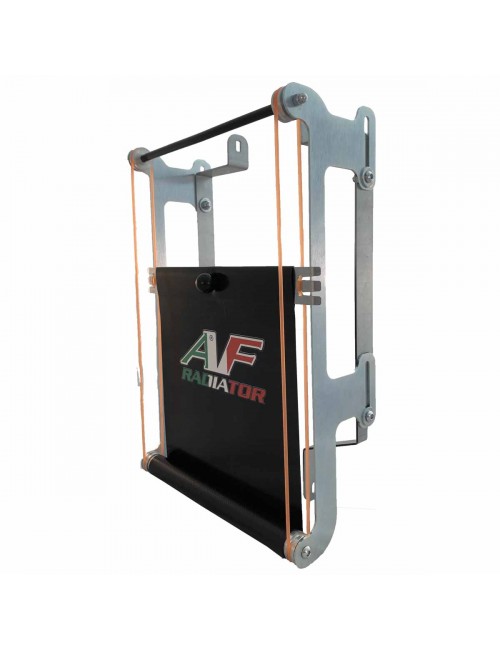

Engine IME X30 is very sensitive to temperature variations. The Radiator AF curtain is not a simple accessory, it's a performance tool. Thanks to its CNC finishes, it guarantees a fluid sliding, allowing you to adjust the opening of the radiator in an instant, even on the starting grid, to maintain your water at the ideal temperature.
- Technical specifications
| Feature | Specification |
| Compatibility | Radiators type X30 / Standard |
| Finishing | CNC (High Precision Machining) |
| Side openings | 2 slots of 5.5 cm |
| System | Identical radius pulleys (constant tension) |
| Weight (kg) | 1.2 kg |
| Dimensions | 38 × 25.5 × 11 cm |
- Installation and use tutorial
The installation must be rigorous to ensure that the system does not hang because of the vibrations.
Installation
-
FIXING: Position the curtain on the radiator. Use the two built-in supports, designed for maximum stability. Check that the structure does not block the water outlet pipe.
-
Alignment: Make sure the pulleys are perfectly aligned. The system must slide without any resistance.
-
Rod: Install the guidance rod. The design of this model prevents flexion of the fabric: Check that once mounted, the fabric is tense between the upper and lower rod.
Use on track
-
Heating: Totally closed curtain (or at least open) to mount rapidly in temperature.
-
During the race: Adjust the height according to the water temperature displayed on your Dashboard (Mychron /Unipro).
-
Weather conditions: Use the 5.5 cm side slots to pass a residual airflow if the ambient temperature is limited.
💡 Michel's trick
"The classic trap is to leave the curtain closed too long. The trick: Do not adjust your curtain depending on what the others do, but only depending on your engine temperature. If you arrive in grid, the engine must be at its optimum operating temperature (usually around 50-55 ° C for an X30). My Pro Council: If you feel that the curtain becomes hard to handle, do not force! Clean the CNC guides with a dry silicone spray. This will prevent the gum dust blocking slip mechanisms during the race. "
❓ FAQ SEO (Frequently Asked Questions)
Q: Why use a curtain rather than tape (tape) ?
A: The AF Radiator curtain allows "on-the-fly" management. If the temperature rises too much, you can open it rolling (if accessible) or very quickly on the pre-grid, unlike the tape that requires time and leaves glue residues.
Q: Is it compatible with all market radiators ?
A: It is designed for X30 radiator standards. However, always check the width of your radiator beam before purchase to ensure a perfect fit.
✅ Ready for the race ?
To complete your temperature management, also check:
-
[Sonde de température d'eau] (If it is faulty, your curtain is no longer useful).
-
[Spray silicone sec] (To maintain the sliding of your mechanisms).
