Tmkart KZ 10C R1 R2 R3 - Semi-Flat Asso Werke

The Asso Werke Semi-Flat Piston is the reference spare part for TM KART KZ10C, R1, R2 and R3 engines. It is also compatible with previous engines (K9, K9B, K9C, KZ10, KZ10B).

CAUTION: To use it on the previous blocks, it is imperative to mount the new associated dome, selectable in this same section of the site:

• Code Cup2641 (for KZ10C and KZ R1)

• Code Cupbp (for K9, K9B, K9C, KZ10 and KZ10B)

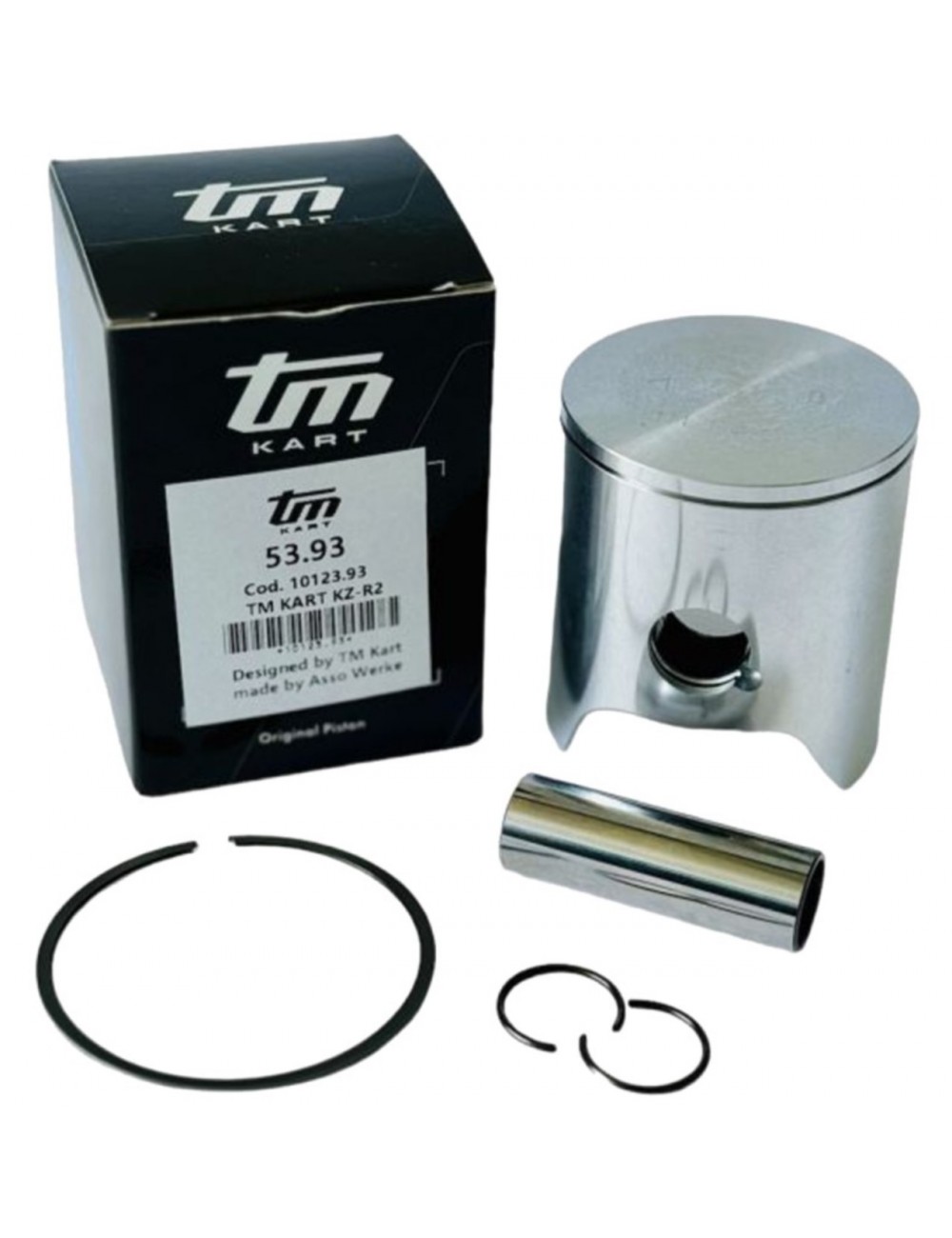

All pistons are supplied complete, comprising a segment (ring), an axis and two SEEGER segments.

Main features:

• Type of piston: Semi-Flat Asso Werke

• Main compatibility: Motors TM Kart KZ10C, R1, R2, R3

• Extended compatibility: Previous Engines (K9, K9B, K9C, KZ10, KZ10B) With the use of the required specific dome (CUP2641 or CUPBP)

• Composition of the kit: Comes with 1 segment (ring), 1 axis and 2 segment segments

• Availability: In stock on Magickart.eu

The history and usefulness of the product (track side)

In a gelling 125cc with gearbox engine, the piston undergoes extreme thermal and mechanical loads at each racing speed. Choosing a original Asso Werke semi-flat piston guarantees a perfect operating game, increased resistance to detonation and constant performance over the tracks.

The mounting tuto (step by step)

To replace your piston in the rules of the art:

• Preparation: Remove the cylinder head and the cylinder with care, then carefully clean the seal plane and the housing by closing the opening with a clean cloth to avoid any impurity drop.

• Disassembly: Remove the SEEGER segments from the piston axle, push the axle to release the old rod, then remove the old piston.

• Checking the dome (if applicable): If you mount this piston on a previous generation engine (K9 to KZ10B), be sure to install the new suitable dome (CUPBP code) or (CUP2641 for KZ10C / R1).

• Reassembly: Install the new segment on the ASSO Werke piston, respecting the direction, position the axis with its two new new SEEGER segments, and then engage the whole in the previously lubricated cylinder.

Michel's Tip (Paddock Expert Council)

"Never neglect the direction of piston mounting (exhaust-oriented arrow) and replace the two SEEGER clips with new disassembly. A tired or reused clip can east in full speed and completely destroy your high engine into a fraction of a second! "

FAQ SEO (Frequently Asked Questions)

• Q: Is the piston delivered alone or with its accessories?

  • A: All pistons are supplied complete with a segment (ring), an axis and two SEEGER segments.

• Q: Is it compatible with the old K9 or KZ10 type engines?

  • A: Yes, it is compatible with previous engines (K9, K9B, K9C, KZ10, KZ10B), but it is mandatory to mount the new dome: CUP2641 (KZ10C, KZ R1) or CupBP code (K9, K9B, K9C, KZ10, KZ10B).

• Q: What is the mark of this piston?

  • A: This is a Semi-Flated Asso Werke, distributed semi-flat piston for TM Kart engines.
