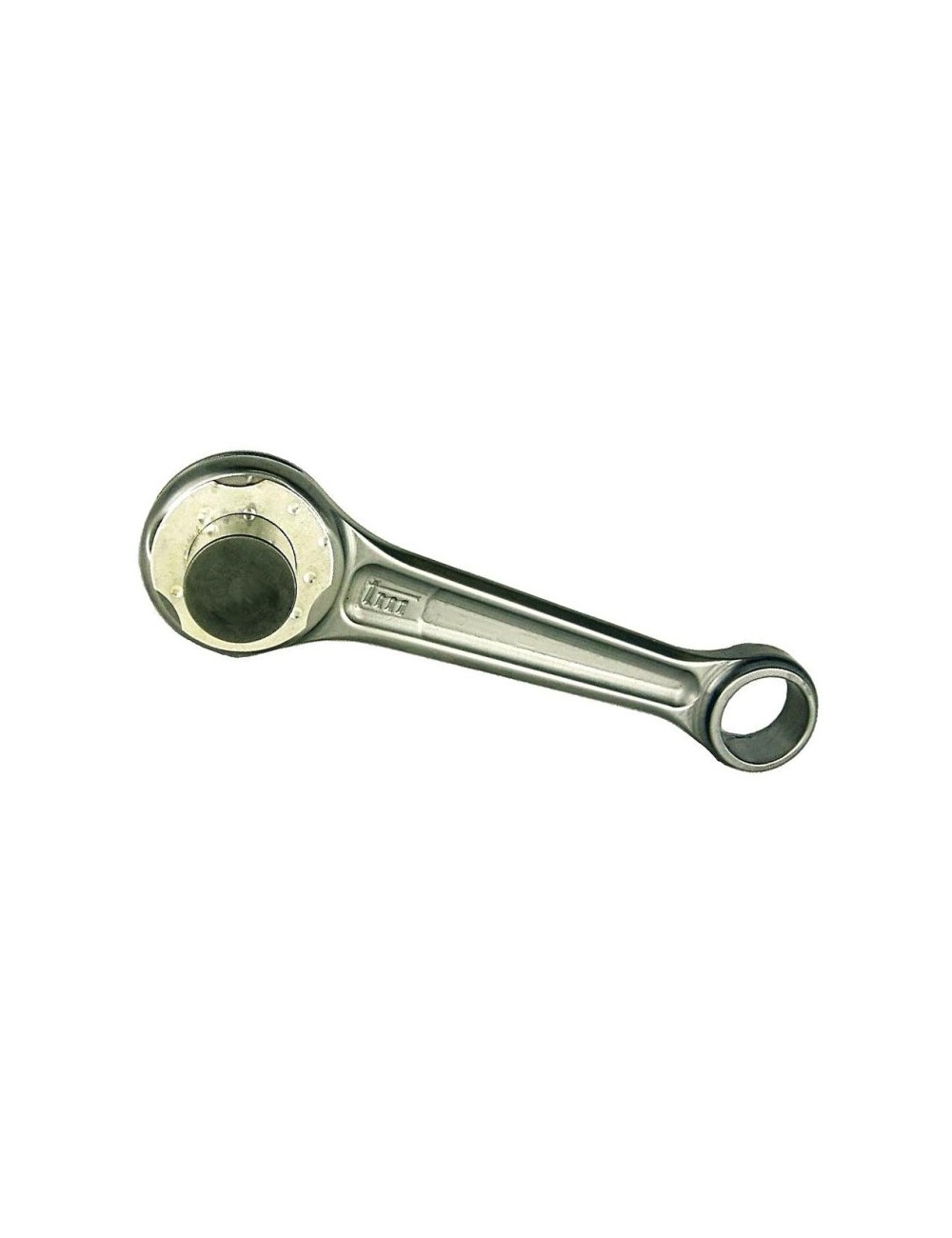

TM Racing Tie Kit Ø22mm Full Maneton KZ10-R1-R2-R3

The TM Racing Tie Kit Ø22mm Pull Maneton is a complete set developed to provide optimal performance and increased durability to your engine. Made of high-resistance steel treated to support the intense mechanical stresses of the competition, it integrates a full curse (without drilling) and a standard length of 109.8 mm.

This original TM connecting connection is perfect for KZR1, KZ10B, KZ10C, KZ10 and K9C engines (ES versions with electronic starter), and can also be used on other compatible blocks sharing the same wheelbase. Note: The warranty is valid only if the installation is performed by a karting professional.

Main features:

• Diameter of the rod: 22 mm

• Type of Marenet: Full (without drilling)

• Standard length (centerpiece): 109.8 mm

• Material: High resistance steel treated against wear

• Motor compatibility: TM Racing KZR1, KZ10B, KZ10C, KZ10, K9C (Versions ES)

• Contents of the kit: Complete rod Ø22mm, 22 mm coupling axis, adapted roller cage, 2 mounting blocks, sealing and mounting parts

• Availability: In stock on Magickart.eu

The history and usefulness of the product (track side)

In a KARTING KZ 125CC engine, the connecting bone-coat ensemble encases colossal acceleration and deceleration forces at each track. The choice of a TM Racing original connecting kit with full coach guarantees optimum power transmission, a reduction in friction and a foolproof resistance to the extreme conditions of the race.

The mounting tuto (step by step)

To install your rod kit in the rules of the art:

• Preparation: Remove the crankshaft from the engine crankcase and disassemble the old rod in the rules of the art.

• Verification: Scrupulously check the odds and the cleanliness of the litters before assembly.

• Assembly: Install the complete rod Ø22mm, the full coat, the roller cage and the mounting wedges provided in the kit.

• Professional pose: It is strongly recommended that you have this kit by a karting professional to ensure the validity of the warranty and avoid any risk of malfunction.

Michel's Tip (Paddock Expert Council)

"When refurbishing crankshaft on a KZ engine, do not neglect component. The use of this original TM bodice kit with full-handed co-robust gain, but always make sure to control the alignment and balancing of your crankshaft by a specialist before closing the housings! "

FAQ SEO (Frequently Asked Questions)

• Q: What are the engines compatible with this Ø22mm rod kit?

  • A: It is designed primarily for TM Racing KZR1, KZ10B, KZ10C, KZ10 and K9C (ES versions with electronic starter), as well as other 109.8 mm wheelbase engines.

• Q: What exactly contains the rod kit?

  • A: It includes the complete rod Ø22mm with solid coat, the 22 mm coupling axis, the adapted roller cage, 2 mounting blocks, as well as the sealing and fastening parts.

• Q: Is the warranty subject to assembly conditions?

  • A: Yes, the guarantee of this kit is valid only if the installation is performed by a karting professional.

Need clarification on compatibility with your engine model or installation tips? Do not hesitate to contact us!
