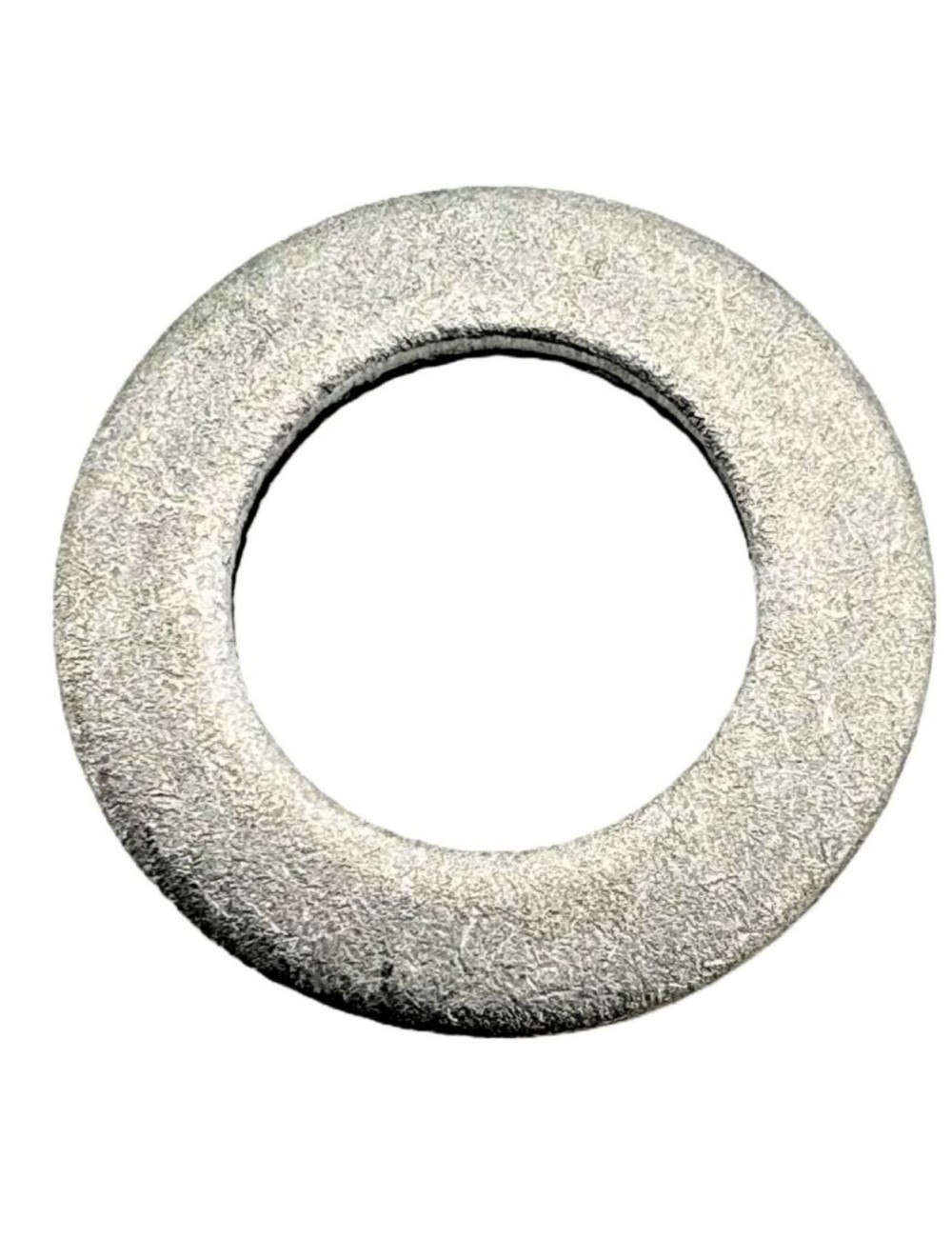

Guarantee the accurate integrity and timing of your low driver with the original crankshaft washer iame motor IME X30. Spotted at the exploded view number 84 and carrying the manufacturer reference 1500342.k, this original piece ensures rigorous mechanical positioning and prevents any friction wear on the crankshaft.
Product Type: Crankshaft wing / washer.
Engine compatibility: IME X30 (Junior / Senior / Master.)
Dimensions: Inner diameter 10.5 mm Outer diameter 18 mm Thickness 0.8 mm (Ø10.5 / 18 / 0.8.)
Origin: Original Party Part (OEM Iame.)
Manufacturer reference: 1500342.K
Position on Technical schema: Figure 84 (official exploded view X30.)
On a 2-stroke of high performance karting such as IME X30, each internal component is subjected to intense rotation forces and repeated axial loads. The blocking washers play a fundamental role by absorbing friction constraints and keeping strict functional games recommended by the plant.
Use an original washer with rigorously respected dimensions (10.5 x 18 x 0.8 mm) avoids the risk of marking excessive screws, surroundings or play that could harm the longevity of your crankshaft and your transmission.
"Michel, our technical expert, recommends you: when rehabilitating your lower motor or replacement of the crankshaft, always inspect the status of each wedding washer. Never mount a washer with traces of deep stripes, overheating or deformation. Clean it carefully and hose it slightly before reassembling to prevent grip during the first start. "
⚠️ Security Council: Be sure to scrupulously respect the location of each washer according to the buzzer (Figure 84) of your Iame X30 manual. A mounting error or forgetting a wedge washer can block the rotation of the movable crew or cause an internal major case.
Order your Iame X30 crankshaft washer (reference 1500342.k) now on Magickart.fr to maintain your engine in the rules of the art. Fast shipping.
Q: Where is this washer precisely on the Iame X30 engine ?
A: It corresponds to the figure 84 on the official technique of the IME X30 engine, assigned to stalling and guidance at the crankshaft.
Q: Is this washer a certified Iame origin ?
A: YES I DO. It is a part of the manufacturer origin (OEM) carrying the reference 1500342.K, ensuring high quality steel and exact dimensional tolerances.
Q: Can we drink an old washer when changing crankshaft ?
A: It is strongly recommended to replace the wedging washers with new ones in a heavy intervention on the bottom motor to ensure a perfect and unwanted support plane.
| Feature | Detail |
| Product type | Crankshaft washer / calving |
| Compatibility | IME X30 motor (all models) |
| Dimensions | Ø10.5 / 18 / 0.8 mm |
| Origin | Original Builder Part (OEM Iame) |
| IME reference | 1500342.K |
| Shot | Figure 84 |
| Conditioning | Sold individually |
| Maker | Iame S.P.A. |
| Contact Manufacturer | [Adresse e-mail ou postale si disponible] |
| Legal opinion | [Lien vers votre page d'avis juridique si nécessaire] |
| Age restriction | Any |
| SKU | [À insérer si connu, sinon laisser vide] |
| State | Nine |
| Key feature 1 | Rigorous machining tolerances according to IAME specifications |
| Key feature 2 | Optimal protection of litter against mechanical wear |
