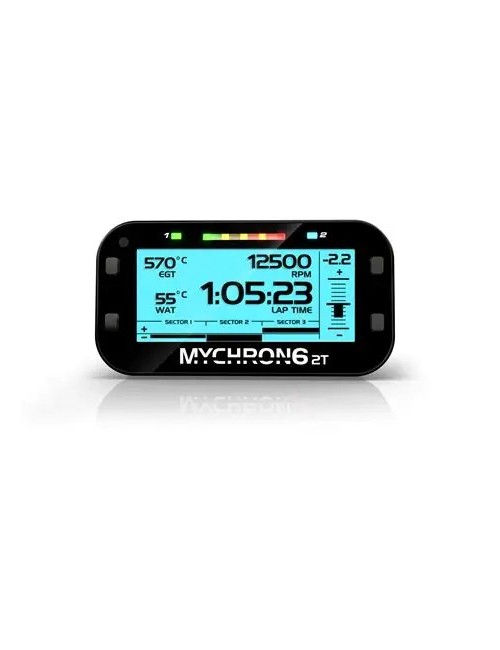

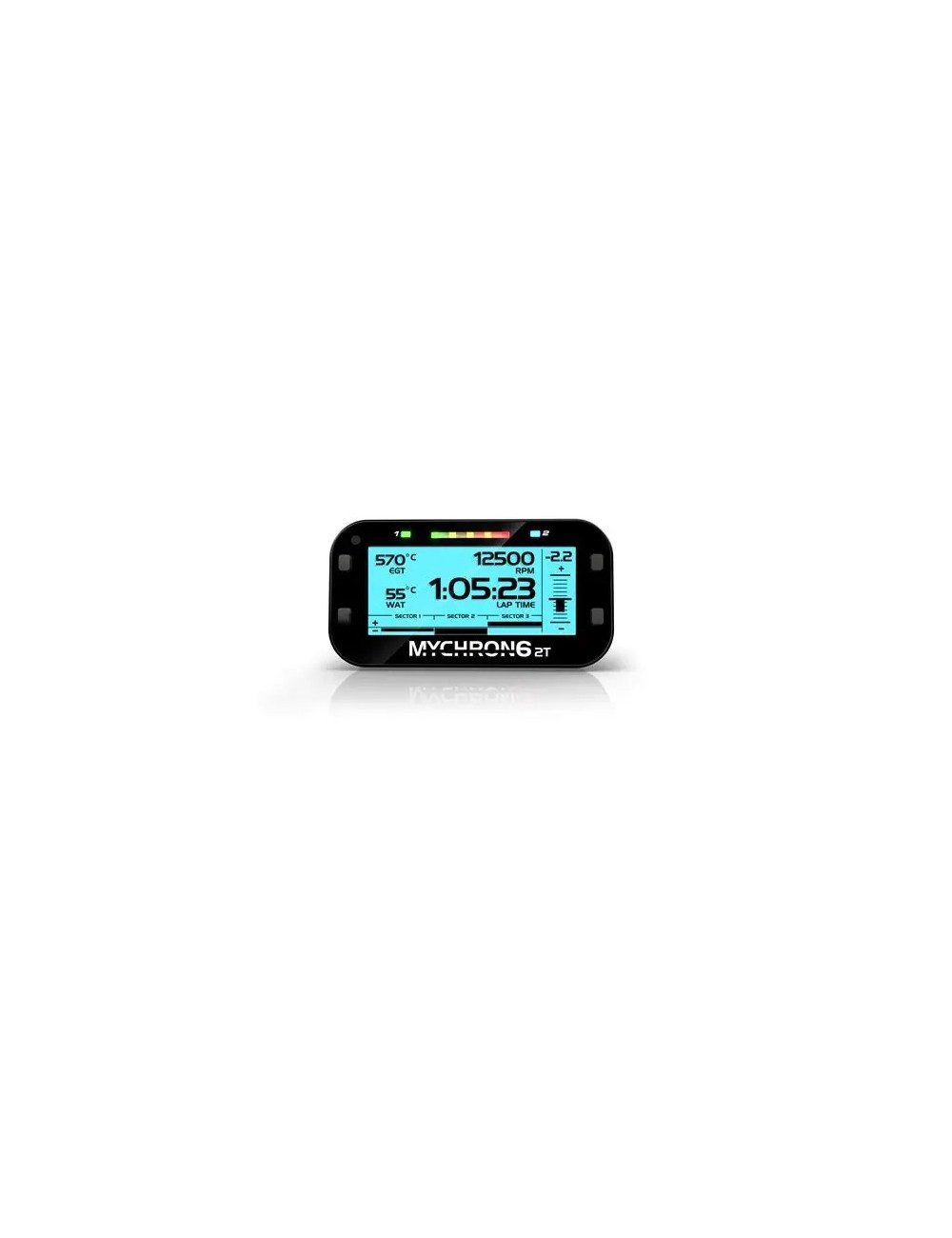

MyCHRON 6 2T Naked - Ultimate Karting Dashboard - GPS, WiFi, BT

The Mychron 6 2T is the new reference of data acquisition systems for karting. More powerful, faster and more connected than his predecessor, the Mychron 6 is designed for drivers that require the best. This "2T" version allows the management of two temperatures motor simultaneously.

⚠️ IMPORTANT NOTE: "NAKED" VERSION

This reference is sold in version "Naked" (only). This means that it is delivered with the essentials to work, but Without additional temperature sensors (water or exhaust) included in the pack. It includes:

• Mychron 6 2T

• Integrated GPS antenna

• The connecting cable for tachometer (RPM)

• USB cable for charging and PC connection

Description and technologies

• Total connectivity (WiFi, Bluetooth, GPS:) Transfer your data quickly and wireless to your PC or smartphone with WiFi integrated. Analyze your sessions with the Race Studio 3 software via the wifi connection or the supplied USB cable. Use the Bluetooth for future communications or with other accessories.

• Accuracy integrated GPS: The integrated GPS antenna (compatible with GNSS - GPS SYSTEMS, GLONASS, Galileo, Beidou) offers formidable precision. It automatically calculates your time (with accuracy of ± 0,02 seconds in most cases) and record your trajectories for fine analysis of your pilotage.

• High visibility color screen: His color graphic screen of 4,3 inches high contrast is perfectly legible, whatever lighting conditions (direct sun or night.) Customize the display pages to view the most important data for you.

• Smart LED alarm: Configure your alarms (temperature, RPM, etc.) on the 5 LED RGB ultra-light. They are fully customizable to visually warn you without you having to leave the track of the eyes.

• Robust and waterproof case: Designed to withstand the harsh environments of karting (vibrations, fuel, water,) the Mychron 6 has a nylon reinforced housing with waterproof metal connectors (IP67.)

Technical characteristics

• Display: Color screen 4,3 inch TFT, high resolution (480x272 pixels.)

• PC connection: WiFi or USB cable.

• GPS: Integrated GNSS (GPS, GLONASS, Galileo, Beidou.)

• Memory: 4 GB.

• Temperature inputs: 2 (Type k,) for two probes.

• RPM entry: 1.

• Food: Rechargeable internal battery Li-Ion (autonomy: about 10 hours) or 12V external power (not included in the Naked Pack.)

• Material: Reinforced nylon case.

• Dimensions: 145,7 x 85,2 x 35,8 mm.

• Weight: 370 g (battery included.)

• Sealing: IP67.

Compatibility

The Mychron 6 2T is compatible with all types of karts (2 stages, 4 stroke, KZ, Rotax, X30, OK, etc.) thanks to its many configuration options.

🔧 Michel's trick

"Michel, our data acquisition expert, advises you: the Mychron 6 is very easy to use, but the key to the analysis is the accuracy of the sensors. If you do not have them in another pack, be sure to add to the basket the water temperature sensors or Exhaust for your engine (sold separately). For mounting, make sure that the GPS antenna is not masked by a thick metal piece for optimal reception."

⚠️ Security Council: The installation of the RPM sensor on the ignition coil must be carried out with care. Check that the cable is not in contact with hot or moving parts of the motor to prevent premature wear or interference.

Order your MyCHRON 6 2T Now now on Magickart.com and transform your data into wins. Fast shipping.

📋 Technical summary

❓ FAQ: your frequent questions

Q: Why choose Mychron 6 compared to Mychron 5 ?A: The Mychron 6 represents a major breakthrough. Its main assets are a higher processor speed, connectivity Integrated wifi which makes data transfer much faster and simple than with the Bluetooth system alone of the M5, and an improved GPS module (GNSS) for even greater accuracy. It is also more evolutive for the future.

Q: Is the count-turn cable well included in this "naked" pack ?A: YES I DO. As specified in the description, the naked version includes the case, the battery, the USB cable, the GPS antenna and cable for Tower Account (RPM). You only miss the temperature sensors (water or exhaust) to exploit the two 2T inputs.

Q: Can I use my MyCHRON 5 temperature probes on the Mychron 6 ?A: YES I DO. The connectors for temperature probes (type k) remained the same. So you can use your old probes (water temperature, CHT, EGT) without problem.

Q: What is the autonomy of the internal battery ?A: Autonomy is about 10 hours, what is sufficient for a full day of rolling. It is easily recharged via the USB cable provided on an AC outlet or PC. It is also possible to power the Mychron 6 in 12V via an external battery if you wish (optional cable.)

Q: Can I export my data to Race Studio 3 software ?A: YES I DO. The Mychron 6 is fully compatible with Race Studio 3. The transfer of data is done very simply by WiFi or via the USB cable. You will be able to visualize your time in turn, your engine plans, and your GPS trajectories to progress.
