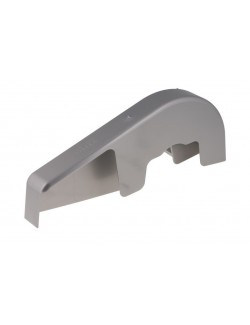

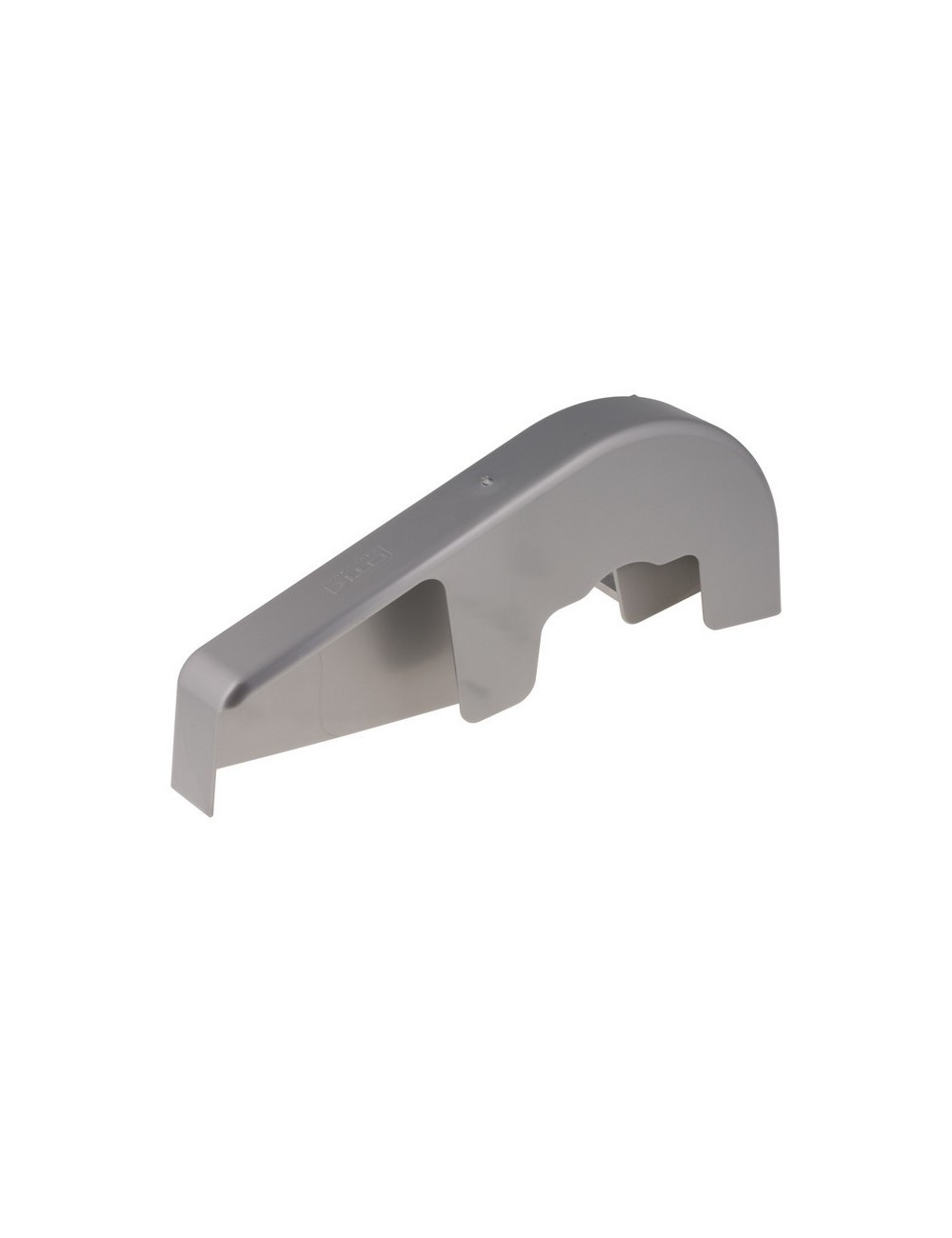

Integral Strings OTK

Integral Strings OTK – Safety and Cleanliness (Origin)

The Full-strings OTK is designed to perfectly wrap the transmission of your kart (pinion, chain, crown). Mandatory in most competitions, it provides maximum protection against projections of grease and debris. In the event of a high-speed chain failure, it plays an essential shield role to protect the driver and chassis.

Characteristics Technical:

• Compatibility: All chassis of the group OTK (Tony Kart, Kosmic, Exprit, Redspeed, Gillard, EOS).

• Design: Full model covering the whole upper and lateral part of the transmission.

• Material: High density plastic, flexible and resistant to impacts and hydrocarbons.

• Design: Aerodynamic profile designed not to disrupt the air flow around the engine.

• Origin: Certified item OTK Kart Parts.

Magickart Loyalty Program: By equipping your chassis with this original part, you collect loyalty points on your next order of consumables (chain, crown or grease bomb)!

Michel's advice (Magickart): Keep your back (and engine) dry!

"A poorly fixed chain is the best way to ruin a final. My expert advice: Always check that the chain shield does not rub against the crown, especially when passing through the vibrators. If it's too close, the heat of friction will melt the plastic.

The indispensables with your firewall OTK :

• Chain fastening kit: Make sure to use the original supports to avoid excessive vibrations.

• Chain fat Lexoil : A well greased chain lasts longer, but without this chain shield, all the fat ends on your combination OMP Hey!

• Wide washers: Use 'carrossier' type washers for fixing to prevent plastic from tearing with vibrations.

A little pro secret: For cleaning, do not use pure gasoline that tarnishes the plastic. A rag stroke with a little WD40 or plastic cleaner will give it its shiny appearance 'factory exit'. At Magickart, we don't laugh about safety: a clean full chain is the brand of a pro driver."

Tuto: Assembly and Alignment

1. Alignment Check: Before tightening, turn the rear shaft by hand to ensure that the crown does not touch any internal wall of the chain.

2. The safety game: Leave about 1 cm of play between the chain and the top of the crankcase to compensate for the beat of the chain in full load.

3. Fixing: Tighten the holding screws with medium net brake. Engine vibration tends to loosen the attachments on the engine support.

4. Quick access: Make sure the screws are easily accessible so you can change your crown quickly between two sleeves.

Why choose Magickart for your accessories OTK ?

• 100% Official parts: We guarantee the perfect mounting on your Tony Kart or Kosmic.

• Higher resistance: Unlike "low cost" models, plastic OTK keep its shape even after hours of engine heating.

• Customer Service: A doubt about the model (Integral vs Standard)? You are guided according to your engine category.

Need to protect your transmission? Do we validate your "Integral Channels"? Do you also want a "Fixing Kit" or a "fat bomb" to be ready at reception?
