Summary: Precision and ergonomics

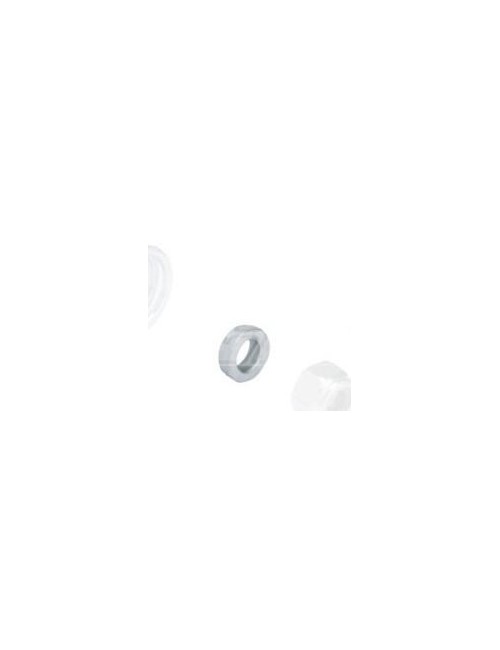

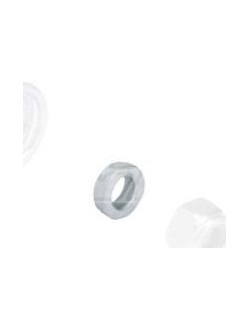

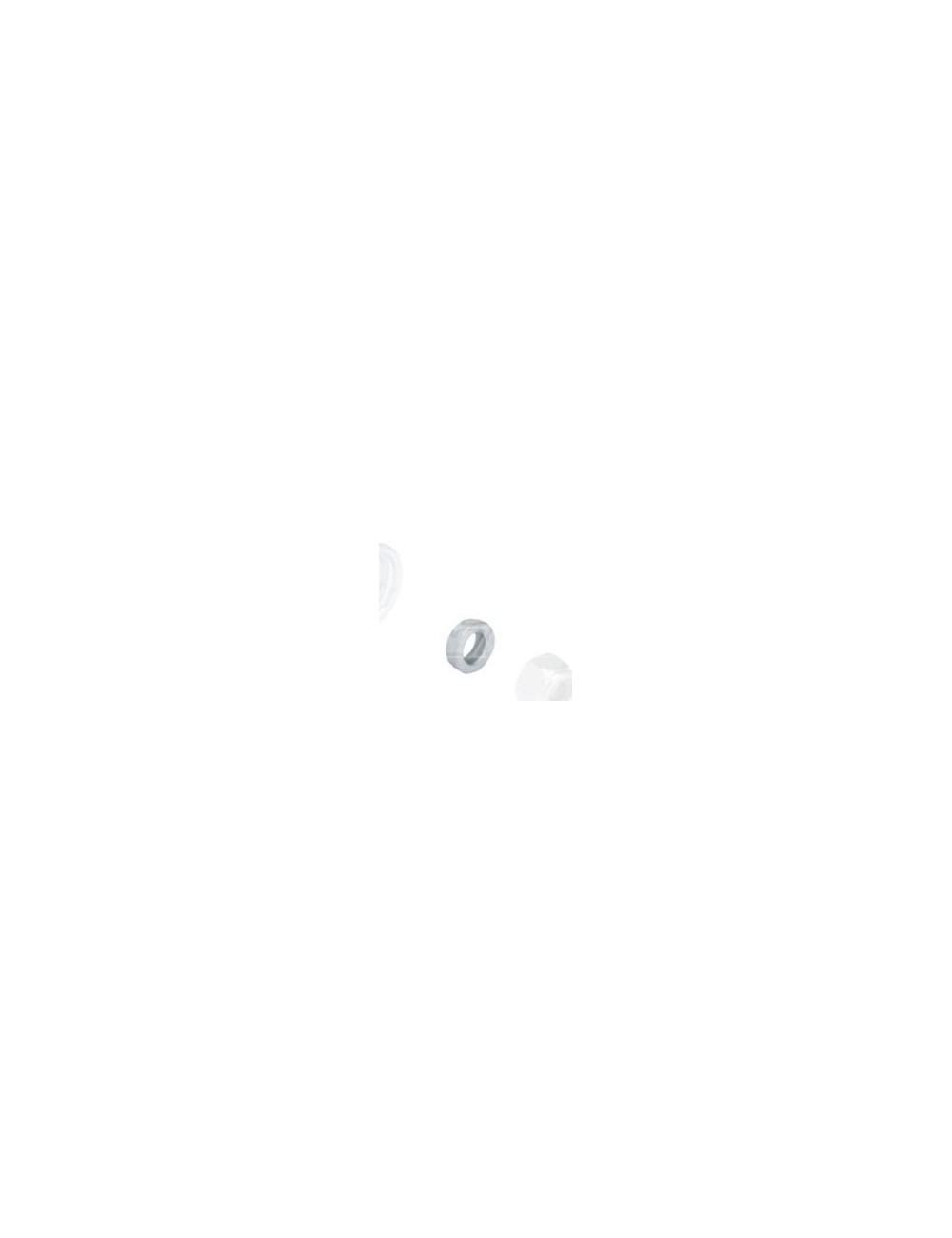

The spacer of ø10mm is placed on the axis of the steering column, usually between the attachment tab of the rods and the centering rings.
-
Height adjustment: It allows to mount or down the position of the steering wheel to adapt to the morphology of the driver (arm length).
-
Geometry of the rods: Its most technical role is to maintain the horizontality of the leadership rods. A bad stacking of spacers can create "bump steer" (the direction that opens or closes alone when the chassis works in torsion).
- Technical specifications
| Feature | Specification |
| Mark | OTK (Original Spare Parts) |
| Internal diameter | 10 mm (precise adjustment on the axis) |
| Thickness | 10 mm |
| Material | High quality aluminum (anodized or natural finish) |
| Compatibility | Tony Kart, Kosmic, vice, redspeed, gilliard |
- Mounting tutorial: Perfect alignment
-
Verification of the axis: Before putting on the spacer, make sure the axis of the column is not marked or twisted. The spacer must slide effortlessly.
-
Mounting order: If you use multiple spacers (eg one of 5mm and one of 10mm), always place the thick where the mechanical effort is most important to ensure better stability.
-
Symmetry: If you change the height to compensate for a rod angle, make sure the two rods (left and right) work with the same angle with the column.
-
Tightening: Do not tighten the column nut like a brute. The spacer must be held firmly, but the column must be able to pivot freely without hard point.
💡 Michel's trick
"We often use this 10mm spacer to mount the steering wheel when you have a big driver. The trick: Pay attention, the more you go up the steering wheel with spacers, the more you increase the lever arm on the column. My Pro Council: If you need more than 20mm spacers, check that the Nylstop nut at the end of the column takes on all its net. Security above all: a steering wheel that stays in your hands because the nut jumped, it's not ideal for taking the rope! "
❓ FAQ SEO (Frequently Asked Questions)
Q: Can we stack several 10mm spacers?
A: Yes, it's current to adjust the driving position. However, make sure that the length of the column axis is sufficient to engage the safety nut.
Q: Is it compatible with other brands (CRG, Birel)?
A: If the axis is 10mm, it will rise. But the spacers OTK are specifically machined to align with the Tony Kart steering bear design.
Q: Why is my spacer marked?
A: If you see circular marks, it's because your column has play and the spacer rubs abnormally. Check your teflon column rings.
0017.001
5 Items
Specific References
The spacer of ø10mm is placed on the axis of the steering column, usually between the attachment tab of the rods and the centering rings.
-
Height adjustment: It allows to mount or down the position of the steering wheel to adapt to the morphology of the driver (arm length).
-
Geometry of the rods: Its most technical role is to maintain the horizontality of the leadership rods. A bad stacking of spacers can create "bump steer" (the direction that opens or closes alone when the chassis works in torsion).
