Full Sheath Guidance Kit 40 ° Dellorto

Presentation: Total fluidity for your gas cable

The 40 ° dell'orto sheath guidance kit is designed to screw directly onto the cap (lid) of the carburetors of the brand (very common on the engines Rotax Max, OK, KZ or PHBG / VHSB typeburettors).

• 40 ° angle ideal: This specific angle makes it possible to redirect the accelerator sheath to the floor and the pedal without creating breaking or a sharp angle at the immediate output of the carburetor.

• Anti-grip safety: By avoiding the pinches of the sheath, the metal tube guarantees that the cable slides to perfection. This eliminates the risk of gas cable that "glue" or stays stuck in the open position.

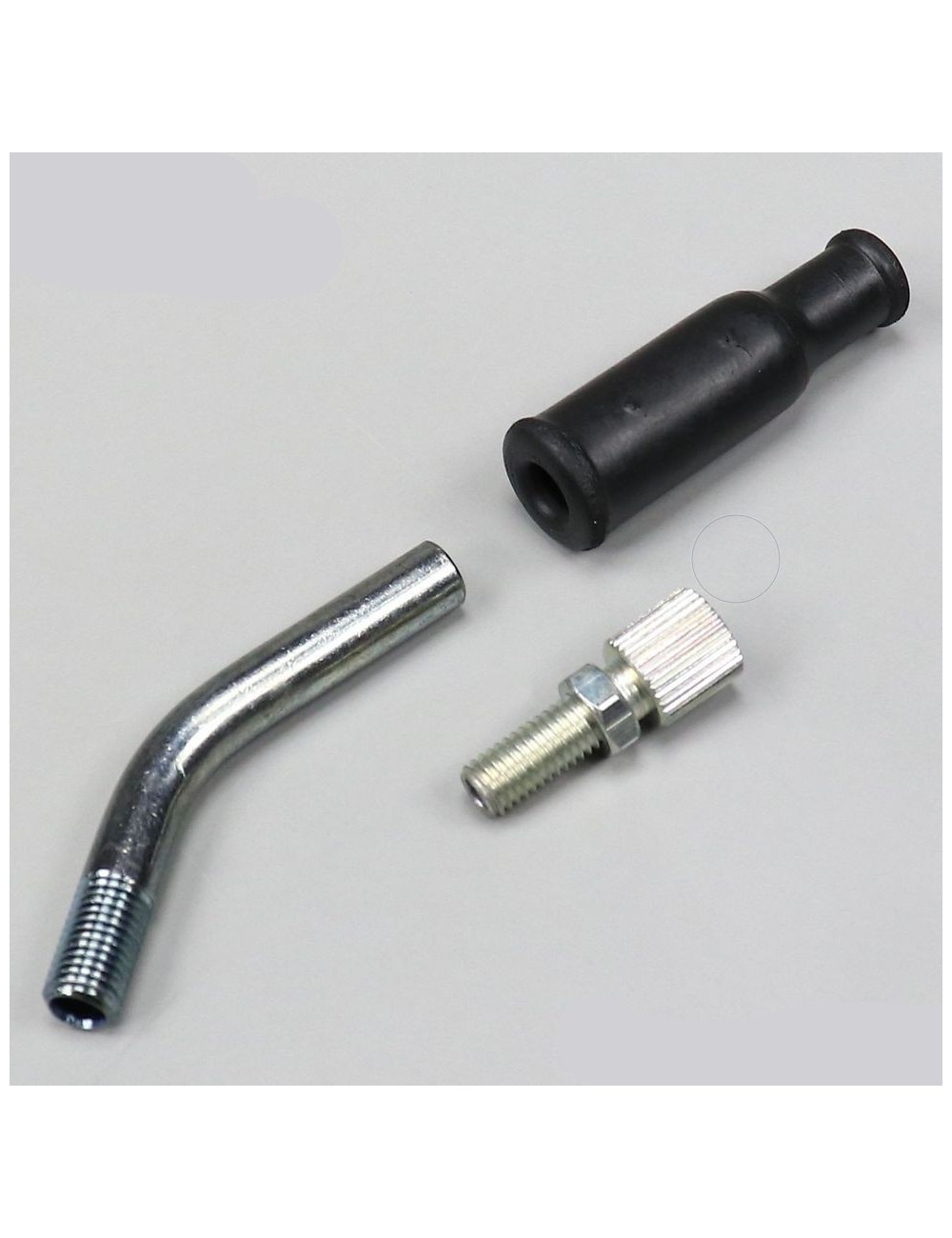

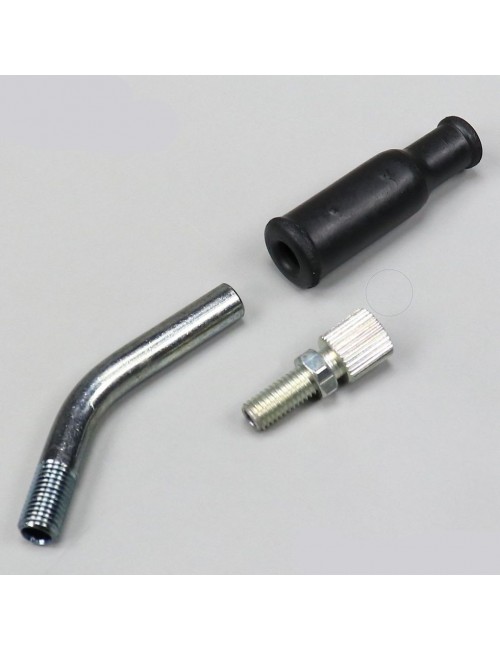

• Ready to mount kit: Comes complete with the metal elbow, the voltage screw (cable tensioner), lock locks and the waterproof rubber protective cap.

- Technical specifications

- Installation & Adjustment Tips

1. Installation on the hat: Screw the threaded base from the guide kit to the top cover of your carburetor.

2. Adjusting the voltage: Use the integrated threaded tensioner to adjust the guard to your accelerator pedal. Always leave a micro-game from 1 to 2 mm to the pedal to be sure the bushel goes well with slow stop background.

3. Sealing: Slide the black rubber cap on the junction between the sheath and the metal tube. This prevents water (in case of rain) or dust to infiltrate inside the carburetor.

💡 Michel's trick

"A gas cable that stucks because of a poorly guided sheath, it is the tail-tail assured at the end of the straight line, or worse, a motor that remains accelerated thoroughly! The trick: The elbow at 40 ° is perfect for motor configurations where the carburetor is very close to the seat or tank because it directs the sheath directly downwardly. My Pro Council: When mounting, put a fine drop of verseline oil or silicone lubricant inside the metal elbow before passing your new gas cable. The Feeling at the pedal will be of absolute flexibility! "

❓ FAQ SEO (Frequently Asked Questions)

Q: Is this kit compatible with the DELL'ORTO VHSB 34 carburettor of the engine Rotax Max?

A: Yes, quite. This is one of the most common mounting on the engines Rotax (Max, Junior, DD2) To prevent the sheath from rubbing against the battery holder or driver seat.

Q: Are there other angles for this guidance kit?

A: Yes, Dell'Orto also offers rights duct guides (0 °), 90 ° (right angle) or at 70 °. The choice of 40 ° is the best compromise on the majority of Kart chassis to keep a natural and constant curve.
