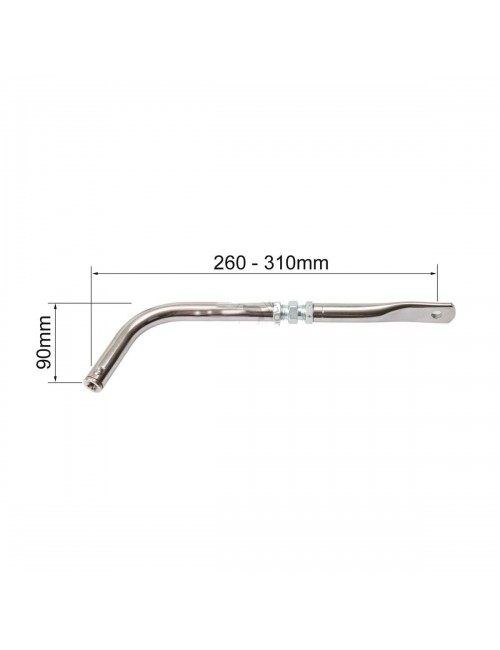

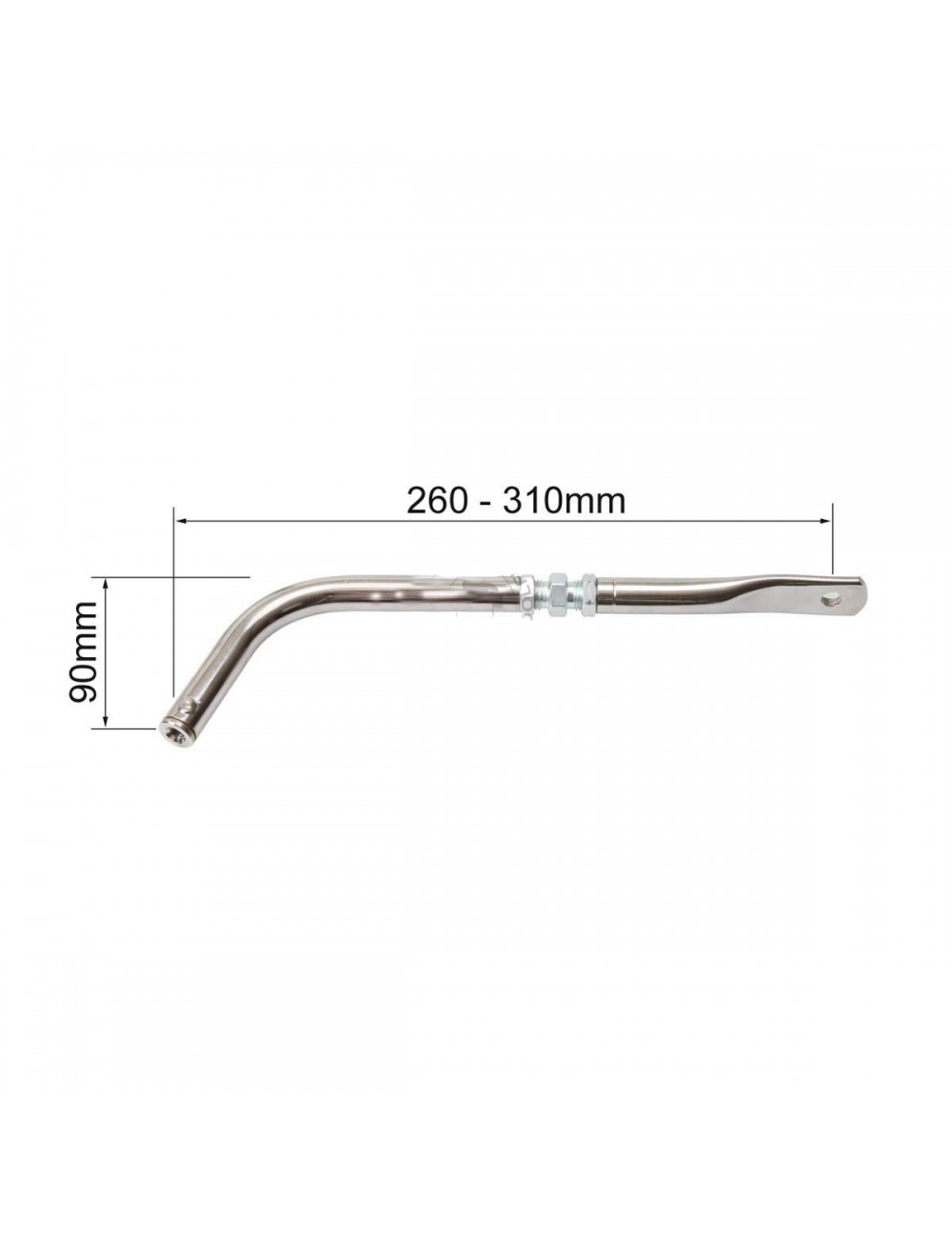

Curved adjustable seat stiffener (long type: 260 mm to 310 mm)

Refine the dynamic behavior of your chassis and reinforce the maintenance of your tub with this adjustable seat stiffener and long type curved.

Designed to secure the tubular frame to your karting seat, this link accessory allows the rear rigidity to optimize the load transfer and adhesion into the track.

Description and technical characteristics

• Product Type: Seat stiffener / Reinforcement bar.

• Form: Curved (with an export of about 90 mm), ideal for marrying the tub shapes and bypass peripheral components.

• Adjustment range Length: Of 260 mm to 310 mm, allowing micrometric adjustment thanks to the central thread system and its locking nuts.

• Material: Robust steel treated to withstand strong torsion constraints in competition.

📖 Role of the seat stiffener in competition

In karting, the seat is not just a support for the driver: it is an integral part of the development of the chassis. Stiffness brought by stiffeners directly influences how the kart is supported in turns.

A curved and adjustable model provides essential mounting flexibility to adapt to the pilot morphology and the geometry of the hull. By changing the voltage and the number of fixing points, the mechanic can adjust the behavior of the chassis:

• On a high adhesion track (grip:) The use of stiffeners makes it possible to stiffen the structure to release the rear of the kart.

• On slippery track: A more flexible fit promotes motricity.

🔧 Michel's trick

"Michel, our technical expert, recommends you: when installing this curved stiffener, be sure to position the fixing screws by interlaying large flat washers on either side of the seat fiber to distribute the forces and avoid tearing. Adjust the threaded length (between 260 and 310 mm) for the bar to come in natural support without pre-constrain or veiling the tub before final tightening. "

⚠️ Security Council: Remember to regularly check the tightening of the adjustment nuts. The intense vibrations of a karting motor can cause progressive loosening, modifying the dynamic behavior of your machine.

Order your adjustable seat stiffener Curved 260-310 mm now Magickart.fr to optimize your chassis settings. Fast shipping.

❓ FAQ: your frequent questions

Q: What is the usefulness of the curved shape of this stiffener ? A: The curvature (having an offset of 90 mm) allows easy circumventing the bulky elements such as the fuel tank or motor components, while ensuring an optimal attachment angle on the tubable wall.

Q: How is the length adjustment ? A: The setting is done directly via the central threaded axis equipped with counter-nuts, allowing to vary the total length of 260 mm to 310 mm to fit perfectly with your assembly.

Q: Does this stiffer suit all types of karts ? A: YES I DO. It adapts universally on the vast majority of the competition and leisure chassis of the market, since the fixing rating requires a length of between 260 and 310 mm.
