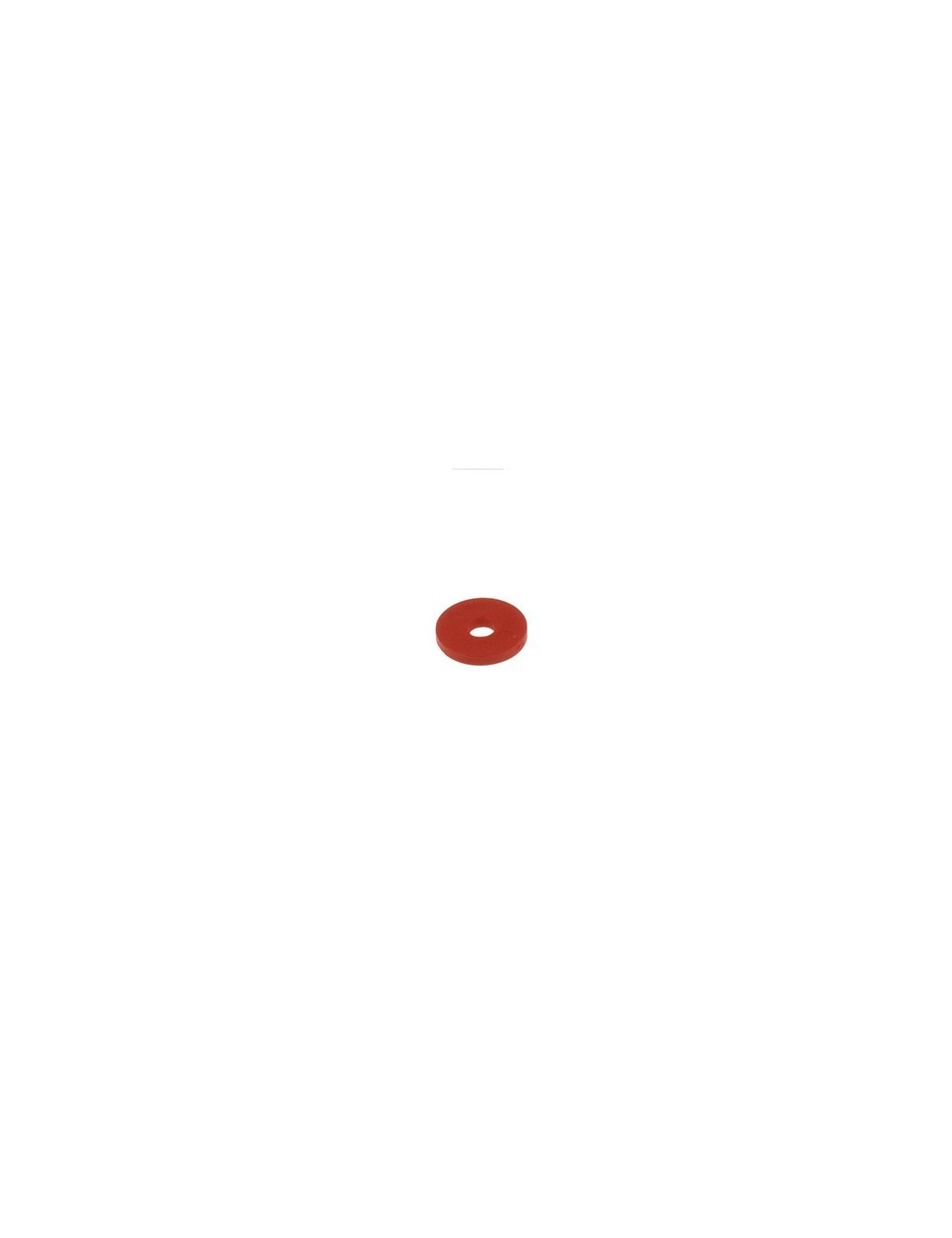

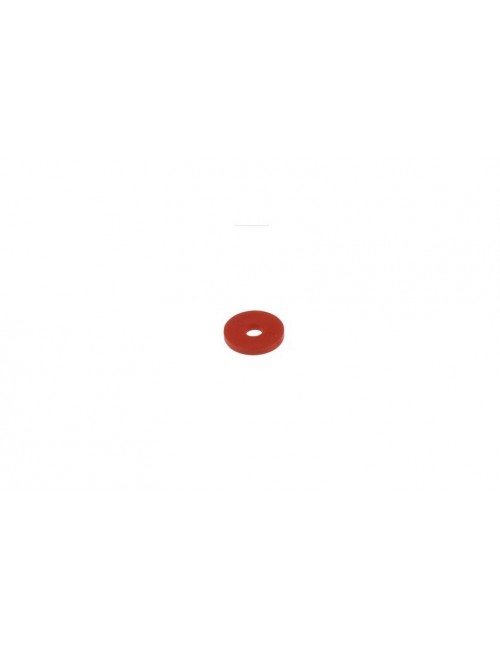

Silent block Ø 6 x 20 mm OTK

Presentation: the shock absorber of your floor

The Floor SilentBloc OTK (Often called Floor Rubber Washer) Intercribles between the chassis tube and the floor (steel or carbon). Although it is a simple wear piece, its role is crucial for the longevity of your material.

• Vibratory absorption: It filters the high frequency vibrations of the motor and the twists of the chassis, preventing the floor from cracking or tearing around the mounting holes.

• Color option: In black (discreet, original look) or in Red (Perfect for matting with some decorations or add a Racing key).

• Sustainable material: Designed in hydrocarbon resistant elastomer rubber or polyurethane, engine heat and repeated friction.

- Technical specifications

- Mounting tips

1. Sandwich mounting: For maximum efficiency, place the silentblock between the floor and the fastening pin of the chassis tube.

2. Moderate tightening: Use m6 m6 milling screws combined with bowl washers OTK and Nylstop nuts. Do not tighten excess to not completely crush the rubber, which must maintain its flexibility to cushion.

3. Finish: Remember to add M6 nutspots OTK over the nut under the chassis to perfect the assembly.

💡 Michel's trick

"A floor mounted 'iron against iron' on the chassis, it is the assurance of seeing it to crack at the end of two sessions because of the vibrations! The trick: Silentblocks of 6x20 mm end up crashing, drying and hardening with time and moisture. My Pro Council: Enjoy the dismantling of your floor when winter cleaning or after a race in the rain to replace the entire rubber washer kit. For the price it costs, it avoids ruining a high-end carbon floor! "

❓ FAQ SEO (Frequently Asked Questions)

Q: Is this silentbloc universal for other brands?

A: Yes, although it is dimensioned from the standards OTK (Ø 6x20 mm), it can be used on any karting floor (sodikart, CRG, Birelart) using 6 mm fixing screws.

Q: Should we put a silentblock above and below the floor?

A: The original standard mount places the silent bloc between the floor and the chassis. However, some drivers add a fine rubber washer on top to further protect carbon composite floors.
