Kelgate chassis adjustment tools

Professional precision for the geometry of your kart

The Kelgate chassis adjustment tools are designed to offer a precise, fast and reproducible measurement Kart geometry. Used by competition teams, preparers and demanding pilots, these laser systems optimize the train, to control the Rectitude of the chassis and ensure a perfectly healthy mechanical base before any adjustment.

Thanks to a robust design and proven technology, Kelgate tools have become a must in the Karting Chassis setting.

Why precisely settle the chassis of a kart

A badly aligned chassis or a loan before regulated entails:

• An input loss and turn output

• An imprecise or unstable direction

• Premature wear of tires

• Incoherent and hard to reproduce settings

Kelgate systems are used to intervene accurately on key parameters:

• TOE (pinch / opening)

• Camber (camber)

• Caster

• Rectitude of the chassis

• Torsion detection, curvature or crab frame

Kelgate R3 Laser System - Front Train Setting

The Kelgate R3 Front Laser System is dedicated to the precise adjustment of the Train Front Karting.

Main functions

• Instantaneous measurement of the toe and camber

• Direct magnetic fixing on the counter-battle axles

• Immediate reading once the management is centralized

• Fast and reproducible settings

CASTER option

• Integrable Caster gauges directly on the device

• Playing the Caster by simple rotation of the steering wheel

• No additional tool required

The Kelgate R3 is the ideal tool for refining kart behavior depending on the grip, circuit and pilotage style.

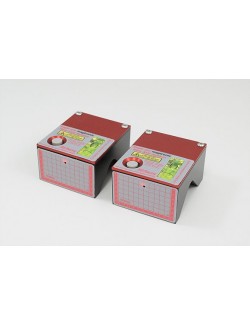

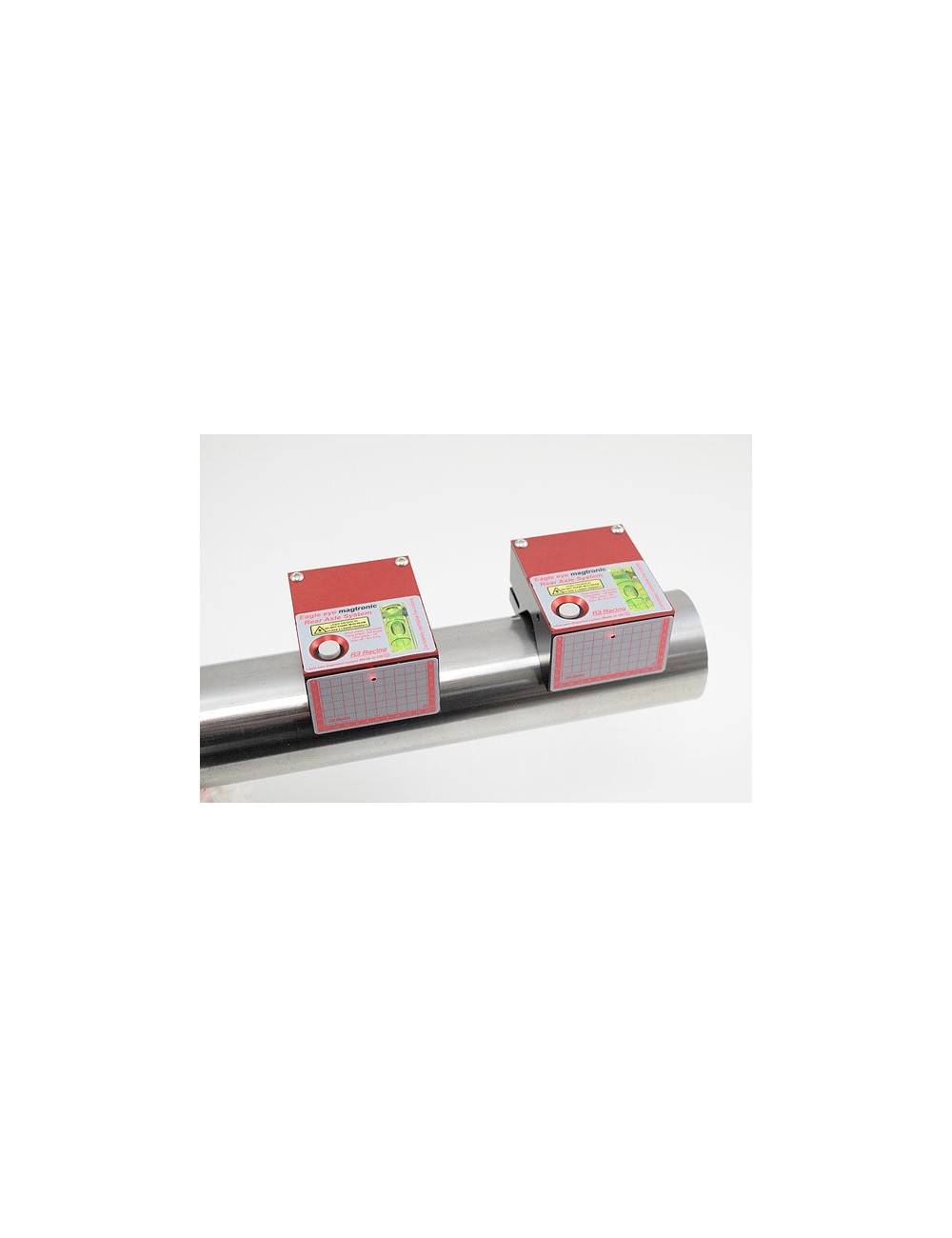

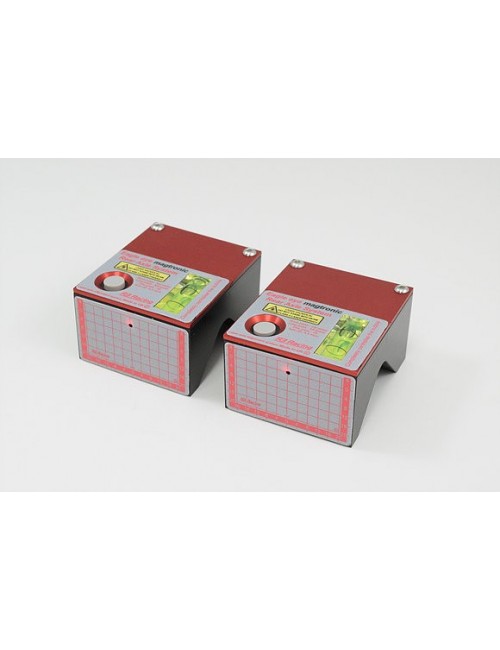

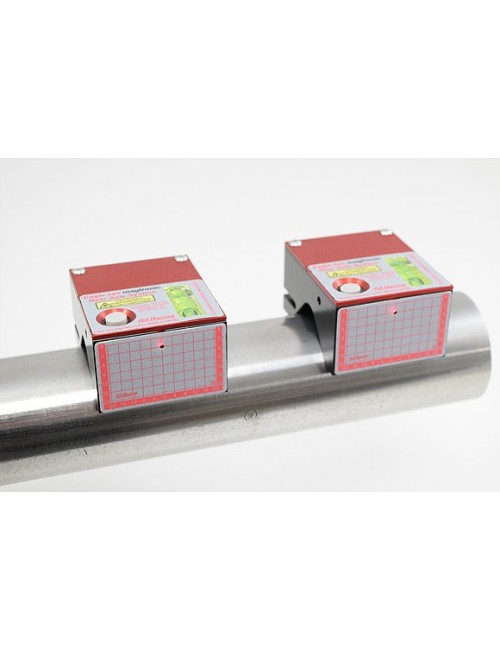

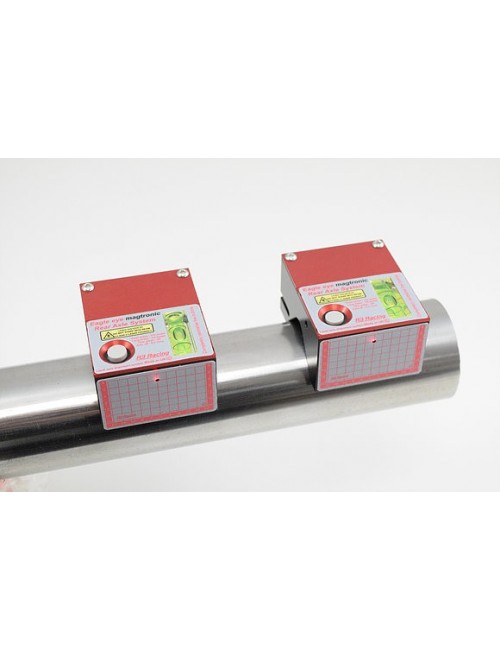

Kelgate R3 Magtronic Rear Laser System - Chassis Control

The Kelgate R3 Magtronic Rear Laser System is used in addition to the front system to check the overall chassis rectitude.

Main functions

• Magnetic fixing on the rear axle

• Simple and fast upgrade

• Detection of:

  • twisted chassis

  • Crab chassis

  • folded rear axle

  • Twist or structural curvature

This control is essential before any geometry adjustment to ensure reliable and consistent measures.

Master Kelgate Laser Kit - Complete Setup Solution

The Kelgate laser master kit Group:

• The front laser system

• The rear laser system

• All accessories needed for complete use

It allows a Integral Kart Analysis, from the front train to the frame structure, and constitutes the most comprehensive solution for the frame.

Quality of manufacture Kelgate

• Laser units machined in Aluminum of aeronautical quality

• High resistance to shocks and wear

• Constant precision in time

• High-end finish adapted to intensive use in Paddock and workshop

Documentation and support

Each Kelgate system comes with:

• Of Complete instructions

• A clear explanation of KART adjustment principles

• One step-by-step guide For proper and reliable use

Who are for Kelgate tools for

• Competition pilots

• Karting Teams and Mechanics

• Chassis preparers

• Driving schools

• Clubs and specialized workshops

Advantages of Kelgate chassis adjustment tools

• Professional precision

• Significant time saving during settings

• Reproducible settings from one session to another

• Direct improvement of kart behavior

• Essential tools for competitive performance

Recommendation for use

To fully exploit the capabilities of Kelgate tools and ensure a correct interpretation of the measures, their use is recommended for Karting Professionals or experienced users mastering the bases of the chassis setting.

MagickArt Council

A well-solved kart always starts with a straight chassis and one precise train. Kelgate tools provide a healthy and reliable basis, which is essential to get the most out of your equipment.
