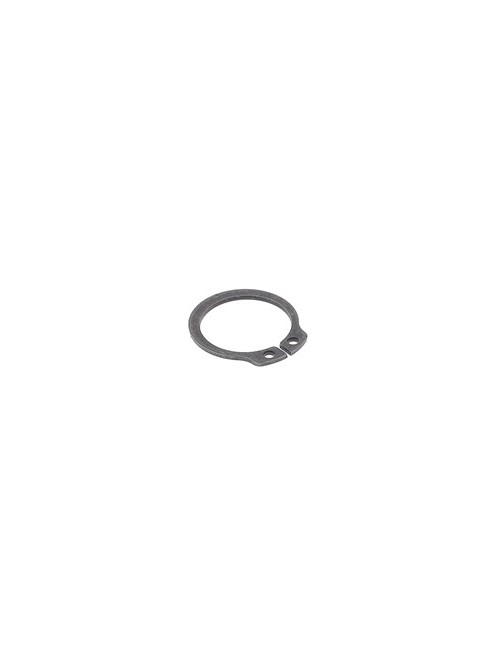

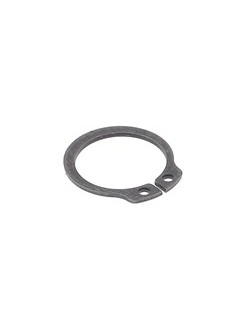

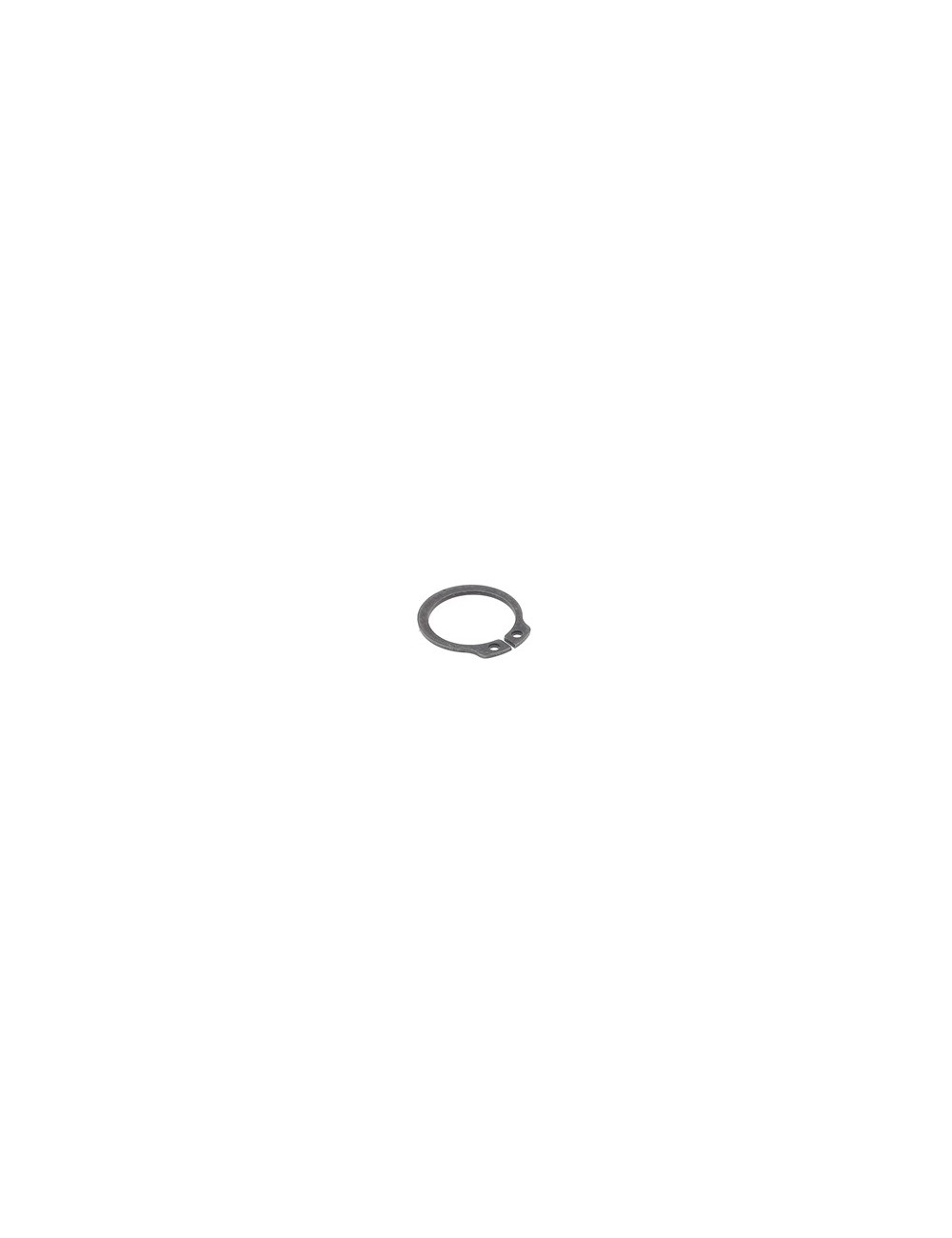

Clips Ø 20 mm - TM Racing box output sprocket
The Ø 20 mm circlips (landmark 33 On exploded TM Racing views) is designed to secure the box output gear on the secondary shaft. Its function is simple: prevent the gear from moving laterally or to detach from the vibration and changes in brutal reports.
Made of high quality spring steel, it offers optimal tension to stay in place in the shaft groove.
Technical specifications:
-
Reference TM: Mark 33 (Exploded Views KZ motors).
-
Diameter: Ø 20 mm.
-
Compatibility: All motors TM racing gearbox (K9, K9B, K9C, KZ10, KZ10B, KZ10C, KZ-R1, KZ-R2).
-
Material: High resistance treated steel.
-
Position: Mounts at the end of the secondary tree to block the box output pinion.
🎁 Magickart Fidelity Program: Even for small essential parts, you rate loyalty Magickart for your next gears or box oil!
💡 The Michel Council (Magickart): low price security!
"It's the room at 1 euro that can cost you a motor or a fall. My expert advice: A circlip should never be reused indefinitely. By dint of mounting and dismounting it to change your sprockets, it ends up losing its elasticity and can jump.
The indispensable with your pinion clips:
TM box output sprocket: Enjoy it to check the wear of your sprocket teeth. A worn gear uses your chain prematurely.
Circlip clamp (operating): Always use a quality circlip clamp to not deform the clips when mounting.
Calibration washer: Check that the washer behind the clips is not marked.
A small secret secret: once the clips mounted, turn it into his throat with the clip. If he turns freely while remaining well engaged, it is that it is perfectly in place. At Magickart, we always have 2 or 3 in advance in the toolbox! "
🛠️ Why choose the original TM Racing clips?
-
Accurate adjustment: The thickness of the clips is calculated exactly for the TM shaft groove, avoiding any axial gangs of the pinion.
-
Certified voltage: Unlike standard hardware clips, TM steel is intended to withstand high diets (more than 14,000 rpm).
-
Total safety: Avoid catastrophic chain outlets due to a gear that is thrilled.
Why choose Magickart for your Racing TM parts?
-
KZ specialist: We have all the pieces of the exploded view in stock, from the smallest circlips at the complete housing.
-
Technical expertise: Doubt on assembly? We know the TM engines by heart.
-
Express delivery: Order your clips and get them quickly so as not to miss your next session.
Need to secure your transmission? We slide some in your order?
TM49216
