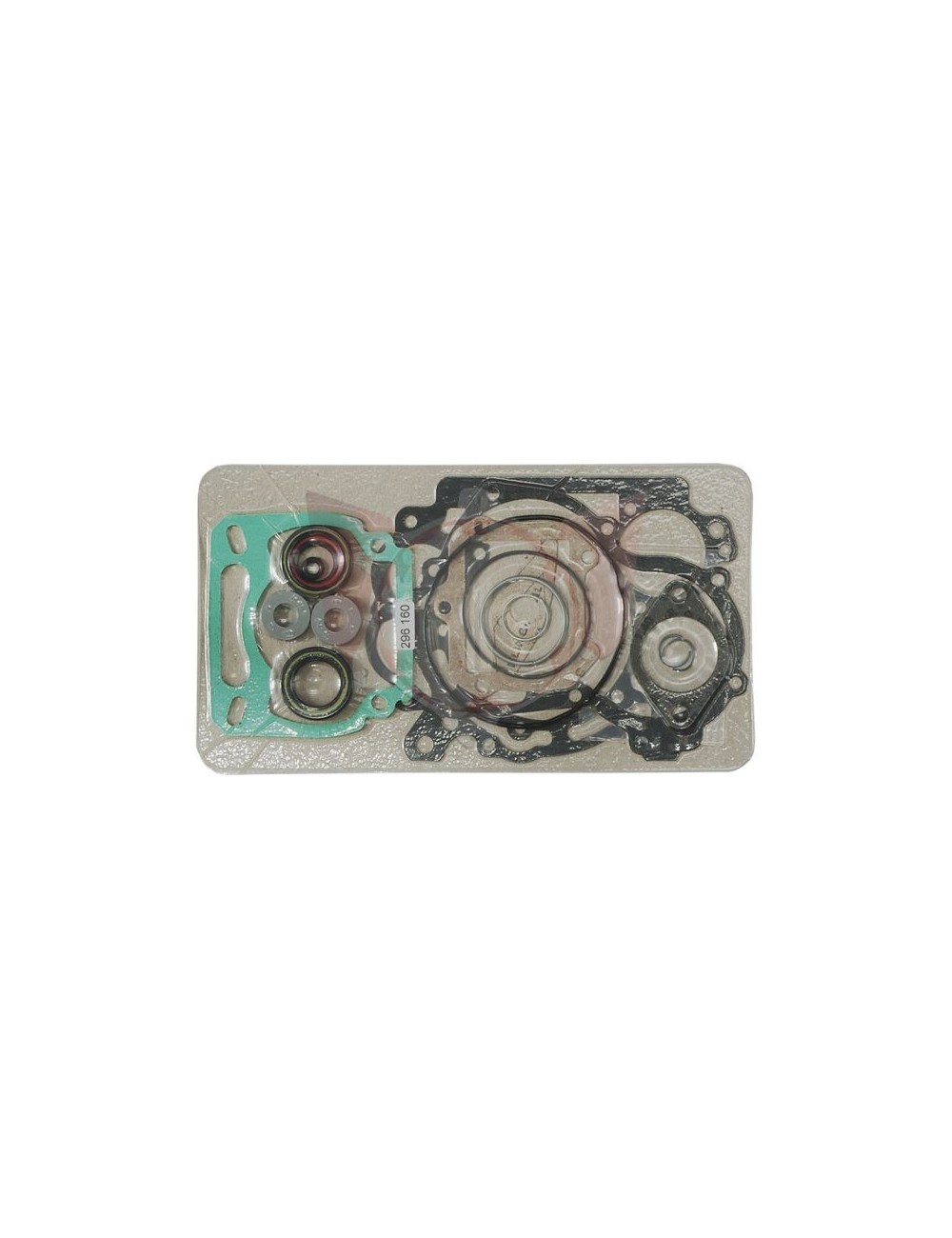

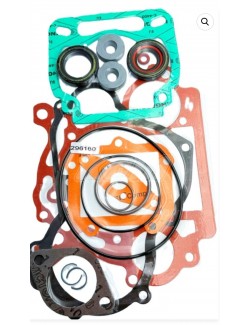

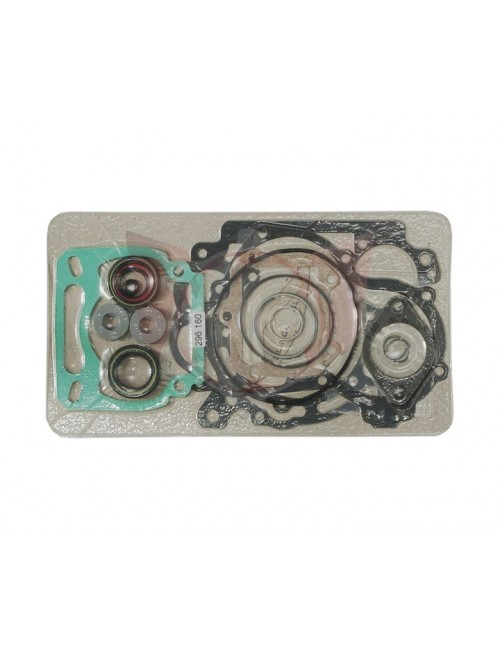

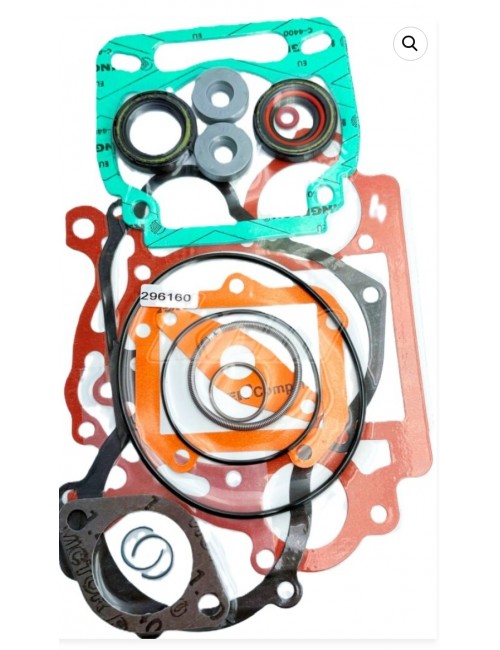

Complete pouch for engine Rotax Evo

Kit composition (PRO detail)

This pack contains all the sealing elements for perfect metrology:

Low engine sealing & transmission

• 2x 230195: Spi joints of water pump (double water / oil sealing).

• 1x 230425 & 1x 930675: The two spis crankshaft seals (clutch and ignition side).

• 1x 430460: O-ring of crankshaft pinion (essential to avoid box oil leaks).

• 1x 650494: Central housing seal (block tightness).

• 1x 650470: Carter cover gasket (clutch).

High engine & cylinder head

• 1x 430782 & 1x 250160: O-Rings of cylinder head (internal and external) for the cooling circuit.

• 1x 250280: O-ring of cylinder head.

• 1x 250521: Flap box seal.

• 1x 250271: Reinforced exhaust seal.

• 2x 945635: Piston circlips (axis safety).

Squish Calibration (base joints)

• Complete kit of 4 thicknesses: 0.3mm (650480), 0.4mm (650483), 0.5mm (650481), and 0.8mm (650482). Allows you to adjust your room volume accurately.

💨 Exhaust valve (specific EVO)

• 1x 250231: Valve seal.

• 1x 230260: O-ring of valve stem.

• Membrane springs: Small (838255) and large (939280) for a perfect responsiveness of the opening.

💡 Michel's trick

"This is the kit to have in its trailer before attacking the season! When you redo your engine, do not make the saving of a 5-ball spi seal. My advice: for the Basic seals, begins by mounting the 0.5mm, Measure your squish with tin, and adjusts with the other thicknesses provided to fall stack on the regulatory value. And do not forget: the crankshaft spis joints mount with a suitable socket for not returning the lip, otherwise it's the air intake at first start! "

🎓 Tuto: the key points of the revision EVO

1. Exhaust valve: The replacement of the two springs (small and large) is crucial on the EVO so that the membrane works without folds and that the valve opens in a linear way.

2. Sense of spis: The spring of the spi seal must always be oriented towards the interior (pressure side).

3. Cleanliness: Before laying silicone cylinder head seals (430782), Make sure the gorges are immaculate. No joint paste here, the silicone works by crushing!

✅ Why choose this full pocket?

• Time saving: No need to look for each reference one by one.

• Safety: Everything is planned, from the biggest attached to the smallest O-ring.

• Performance: Allows fine squish adjustment with different base thicknesses.

Note Magickart: This set of original parts guarantees the conformity of your engine for all national and international competitions Rotax.
