Alfano Durite Adapter for Temperature Sensors 17mm A-261

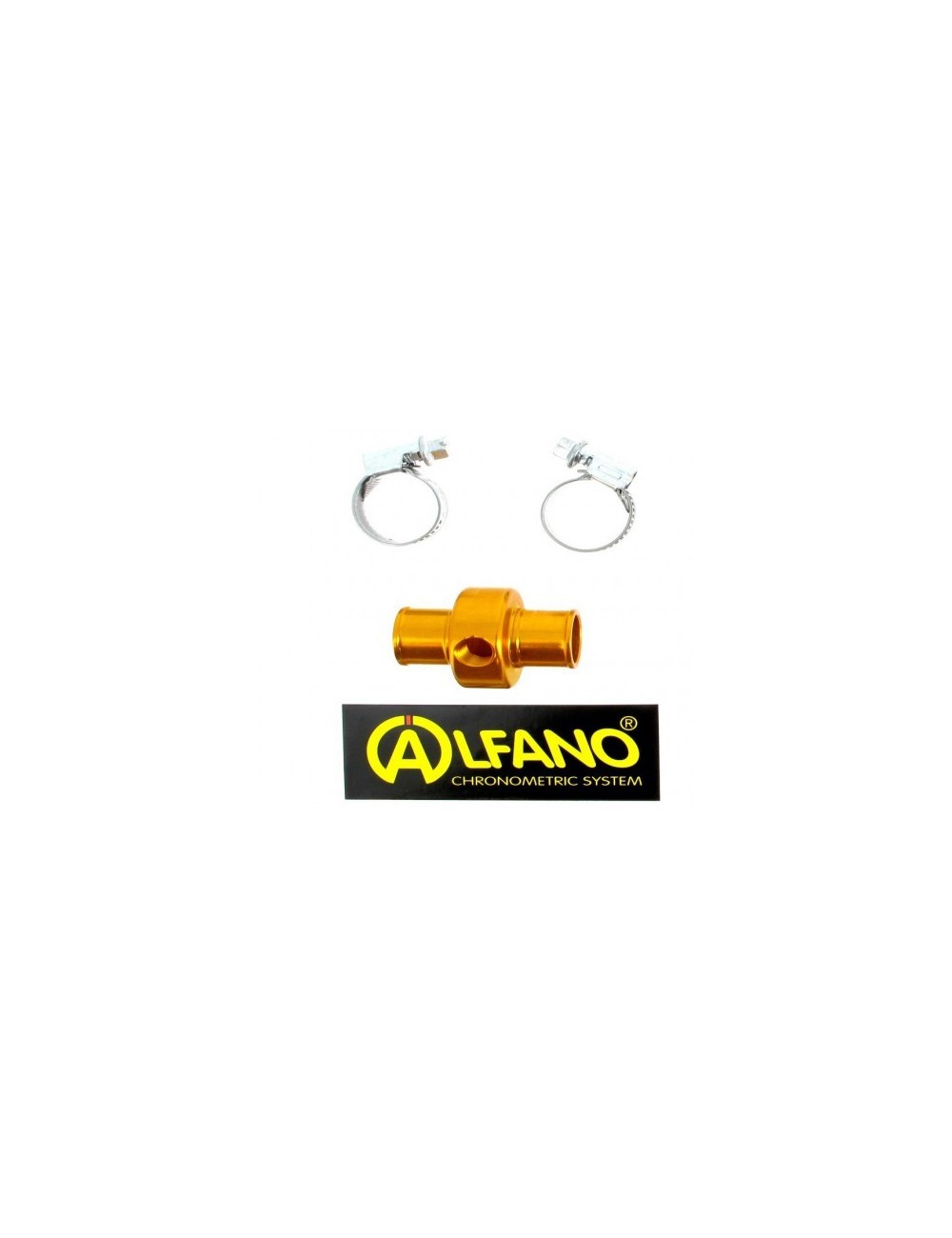

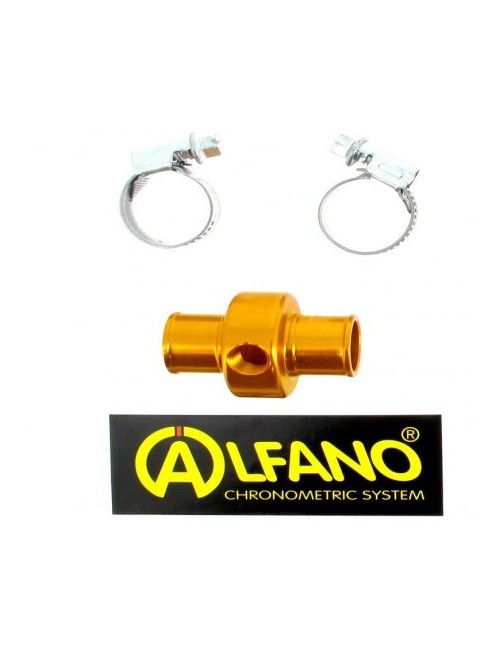

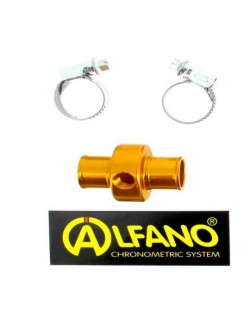

Alfano Durite Adapter for Temperature Sensor – 17 mm (Ref. A-261)

Adapter Alfano A-261 is designed for demanding drivers who want a precise reading of the coolant temperature on their display (Alfano 6, Admiral, etc.). This anodized aluminium connector intersects directly on your cooling hose to screw your thermal probe.

Specifications Technical:

• Reference: A-261 (Origin Alfano).

• Diameter of Durite: 17 mm (Standard for the majority of 125cc karting engines like the Rotax Max, X30, KZ).

• Thread Sensor: Compatible with water temperature sensors Alfano standards.

• Material: High quality aluminium, lightweight and corrosion resistant.

• Included: 2 stainless steel clamps for waterproof and secure mounting.

Magickart Loyalty Program: By buying this product, you collect up to 3 loyalty points. Your cart will total 3 points which can be converted into a discount voucher of €0.30 at your next order!

Michel's Council (Magickart): Precision above all!

"Install a Alfano Without a water probe, it's like driving blind. My expert advice: Don't be mistaken in diameter! The 17 mm is the standard, but check the inside of your durite. A too small adapter will create a leak, too large a risk of tearing the hose to the clamp.

The essentials with your A-261 adapter:

• Temperature sensor Alfano (NTC): If you don't have one yet, it's her who screws herself into this adapter.

• Cable extension Alfano : Depending on the location of your water pump, plan an extension to properly connect the probe to your steering wheel.

• Cooling liquid Lexoil : Take advantage of the opening of the circuit to restore clean, limestone-free liquid.

A little pro secret: When mounting, put a small fillet of Teflon or Blue joint paste on the probe thread before screwing it into the adapter. This ensures perfect sealing even under high hot pressure. At Magickart, we don't want to see drops of water on your rear tire!"

Tuto: Mounting the adapter in 5 minutes

1. Preparation: Wait until the engine is completely cold. Purgate some of the coolant.

2. Cut: Choose a straight section on your durite (usually at the head end). Cut the durite clean.

3. Insertion: Slide the two collars provided on the length tips, then insert the adapter Alfano.

4. Lock: Tighten the collars firmly but without completely crushing the rubber.

5. Finalization: Screw your probe into the adapter, reload the liquid and check the absence of leakage by heating the engine on the trolley.
