Summary: Adjustable bond

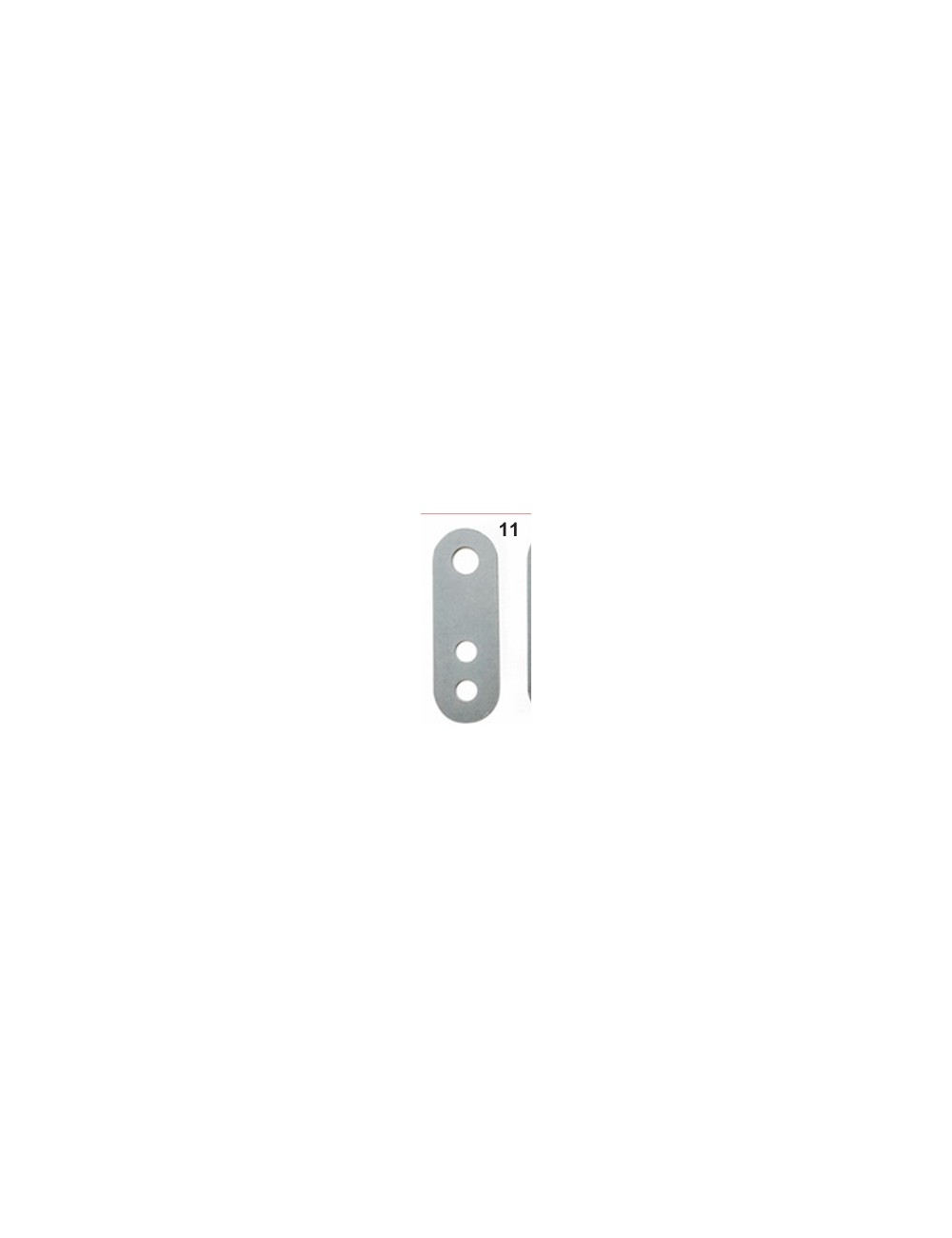

This perforated plate (marker 11) serves as a fixing bridge. Its multiple holes allow a precise adjustment from the position of the system barrier with respect to the crown. Depending on the size of your crown (more or less large), you may need to slightly shift the systemworm so that it does not touch the channel while remaining close enough to ensure its protection function.
Using this CRG GENUINE PARTS, you have the guarantee that the distance (distances between the holes) correspond perfectly to the fixings of your chassis CRG, thus avoiding having to ripple or tinker the room.
- Why choose the original plate CRG ? ?
-
Perfect distance: The holes are machined at the exact odds of the factory CRG. This facilitates mounting without mechanical stress on the chassis.
-
Optimal rigidity: Made of quality steel, it will not bend under the vibrations, ensuring that your chain carrier remains perfectly aligned with the back shaft.
-
Anti-corrosion treatment: Resists the difficult conditions of the track (moisture, lubricant projection, dust).
-
Versatility: Oblong or multiple holes make it easy to adapt protection to different transmission configurations.
💡 Michel's trick
"This small plate is often ignored, but it is very important for alignment. The trick: When you go down your stringwind, do not tighten the screws on this plate thoroughly from the start. Position your String Carrier, make sure it has a 5 to 10 mm game all around the crown and the chain, and then tighten the plate. My Pro Council: If you change a crown (ex: go from 25 to 27 teeth), always check that the chain carrier does not rub the new crown with the adjustment holes of this plate. If it touches, shift a hole! "
- Technical specifications
| Feature | Specification |
| Type | Support plate / link bar |
| Use | KZ String Equipment Adjustment RR |
| Material | Treated steel |
| Origin | CRG GENUINE PARTS |
| Compatibility | Chassis CRG (Road Rebel, etc.) |
❓ FAQ SEO (Frequently Asked Questions)
Q: Why are there several holes on the plate ?
A: To adjust the position of the stringware. As the crown sizes vary in kz, you have to be able to move forward or back down the barrier to always be well positioned without touching the mechanics.
Q: Is this plate compatible with the DD chassis (monovitese) ?
A: It is specific to the KZ mounting with the fast disassemble system system. For DD models, the fixing system is often different.
✅ The "puzzle" is complete !
You have now listed all the necessary parts for the perfect mounting of your KZ "Quick Release" chain protection system:
-
Milking screw (REP 5) + Cuvetr (REP 5) + Washer (REP 5)
-
Stink (Rep 6)
-
Support plate (REP 11)
-
Pivot (REP 14)
-
Pin clip (REP 15)
Do you want me to compile you the complete list of these references with the quantities recommended for a "ready to go up" command on Magickart ?
SZ0.04811
