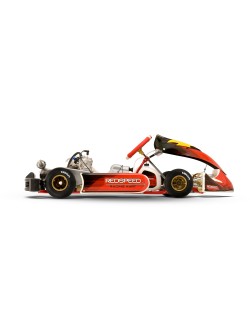

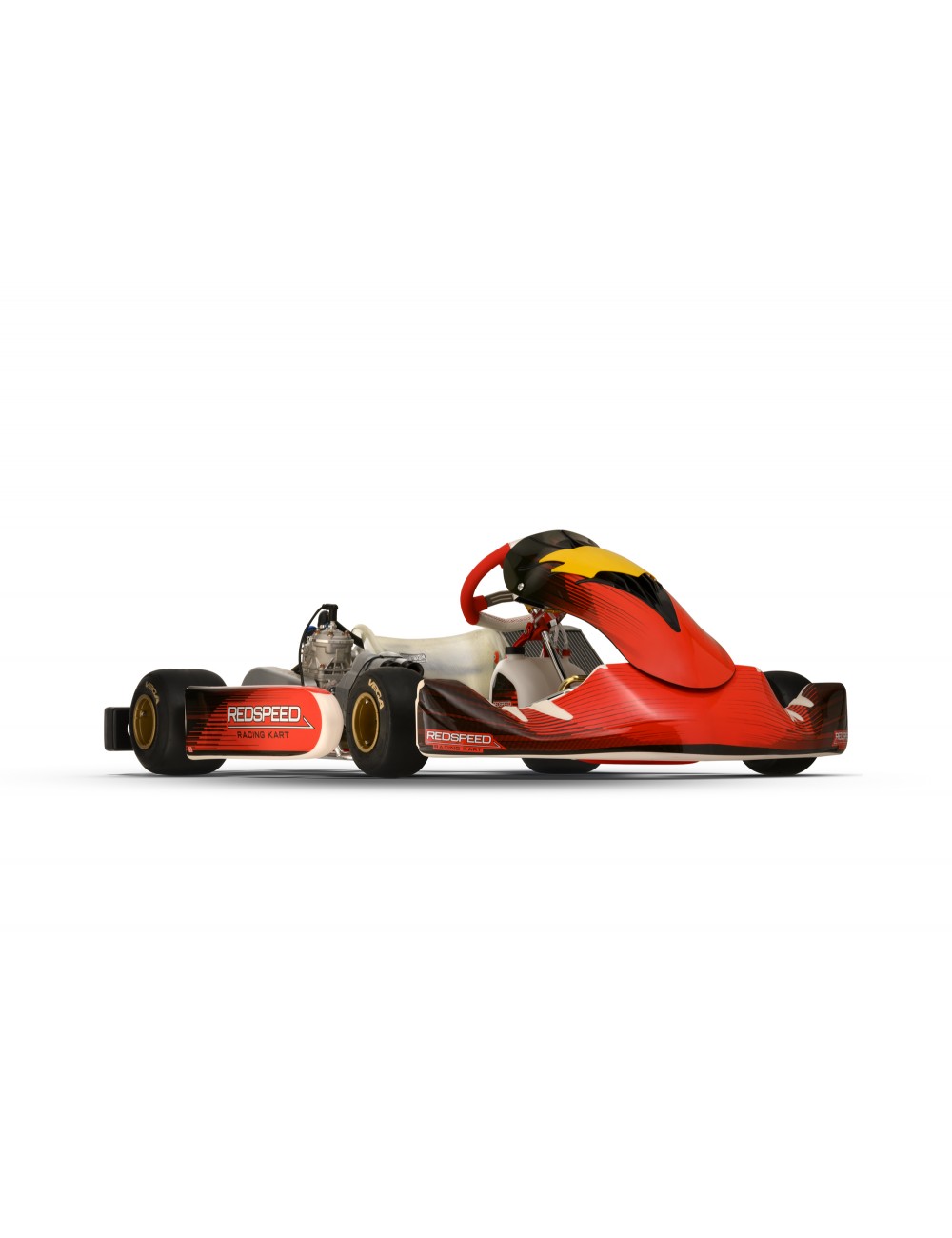

CHASSIS OTK REDSPEED RX R (BWD ø brake disc 180mm)

The chassis OTK REDSPEED RXR is a high-end model designed for categories RotaxX30,KA100 developed by the group OTK Kart Group, one of the most successful and rated manufacturers in the world of competitive karting.

Made of chrome-molybdenum steel with tubes of Ø30 mm, this chassis offers an excellent compromise between rigidity, steering precision and performance on all types of circuits. Its design allows a very high precision of adjustment, making it a chassis particularly appreciated by drivers and competition teams.

Teamed BWD rear brake system with Ø180 mm disc, it guarantees a powerful, progressive and constant braking even under the most demanding conditions. The many processed and anodized aluminium and magnesium components ensure lightness, reliability and performance.

Technical specifications

• Chassis material : chrome-molybdenum steel

• Tube diameter : Ø30 mm

• Rear axle : Ø50 mm – type N

• Axle mounting : 3 forged bearings with 4 screw fastening

• Brake system : Rear BWD with Ø180 mm disc

• Fuses : Ø25 mm with eccentric adjustment

• Wheels : magnesium type MXJ with gripsters

  • 130 mm front

  • 212 mm rear

• Weight of chassis : 49.2 kg (without tires)

High-end components

The chassis is equipped with many GOLD color anodized parts, Group signature OTK :

• Aluminium footrests

• axle bearings

• Steering wheel

• Brake bracket

• Double brake pumps

• Magnesium moulds

  • 80 mm front

  • 92 mm rear

These components guarantee rigidity, lightness and mechanical accuracy, indispensable in competition.

Original equipment

The chassis comes complete with many equipment:

• Flying SPECIAL GRIP REDSPEED 4 branches in embroidered suede

• Plastic rear bumper OTK M10 in 3 parts

• 2 flat chassis stiffeners

• Side pontoons OTK M10

• Front bodywork OTK M11 (bead spoiler + black nassau panel)

• Complete decor kit REDSPEED (carrossing and flooring)

• Adjustable footrests

• Fiber seat flat bottom

• Removable chain

• Engine platinum and crown holder Of magnesium

• Tank OTK 8.5 litres

• Oval front stabilizer

• Exhaust media

Benefits

• Competition chassis developed by OTK Kart Group

• High adjustment accuracy and excellent grip on the track

• Components Magnesium and processed aluminium

• Rear brake BWD Ø180 mm powerful and efficient

• Configuration used in many international competitions

Magickart Exclusive

At Magickart, you have a choice between buy your new chassis or long term rental.

The long term rental allows drivers and teams to have a new chassis without immobilizing a major investment.

Magickart is currently one of the only ones offering this long-term rental service for karting chassis.

To know conditions and different formulae, thanks for contact the Magickart team directly.
