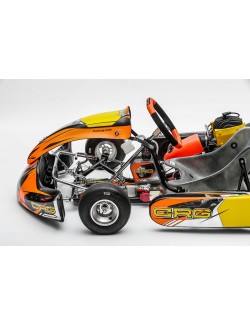

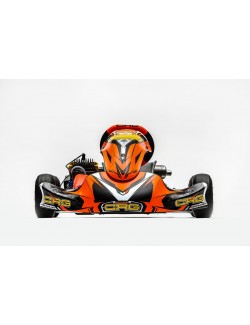

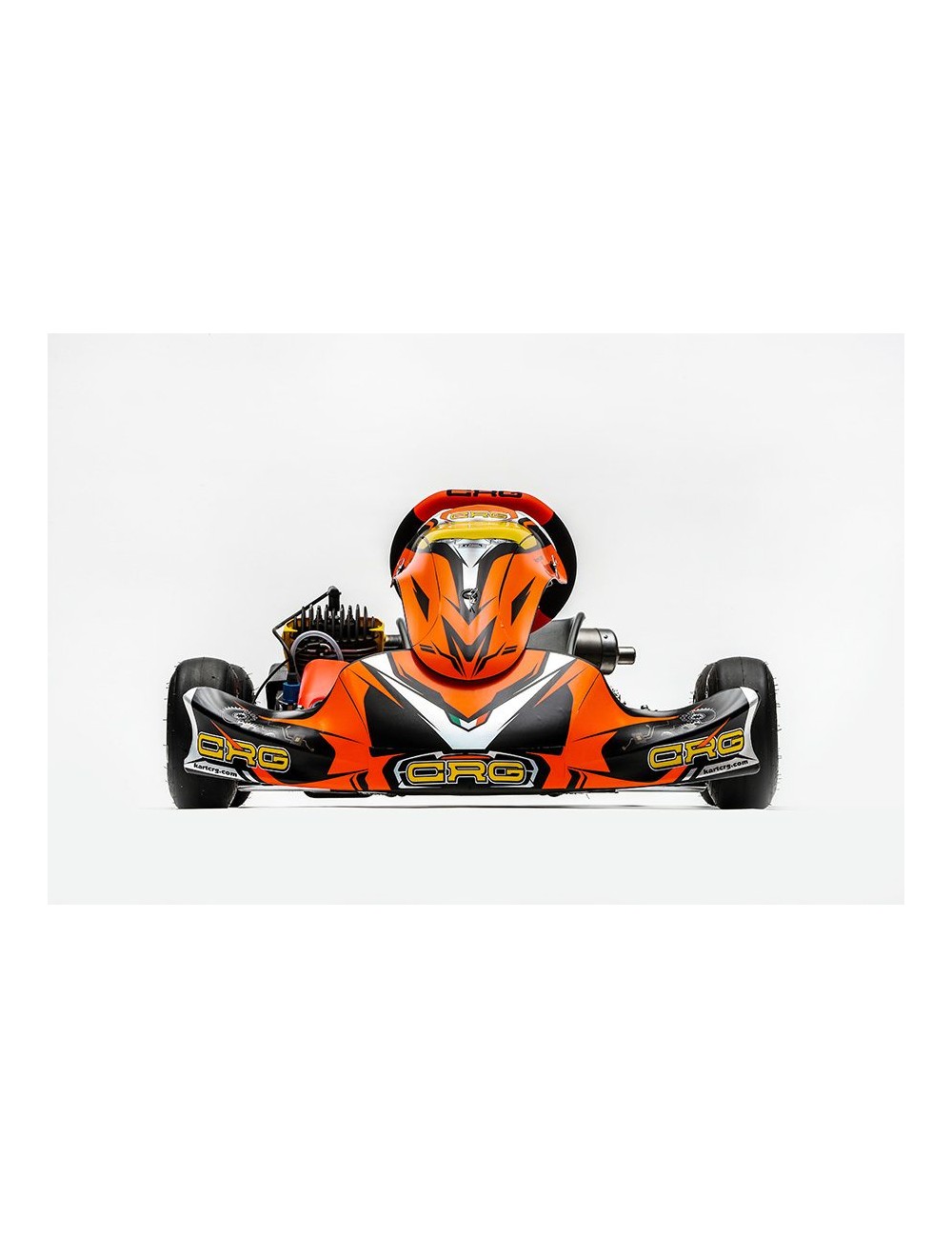

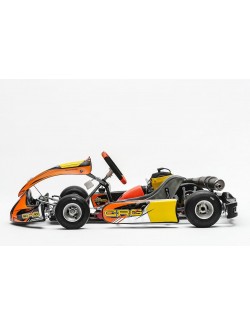

Black Mirror chassis – CRG Kart

The Black Mirror chassis from CRG Kart is designed in 28 mm chrome-molybdenum steel tubes, offering both rigidity and performance. It has an FIA certification for the MINI category, both for national competitions (WSK) and for major single-brand trophies such as RotaxIAME and ROK.

Its main strength lies in its exceptional balance from the original configuration. Easy to handle, it allows young drivers, even beginners, to quickly find good sensations, regardless of the type of tires or the circuit.

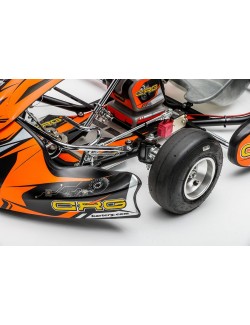

The Mini Black Mirror adopts a 950 mm wheelbase and integrates solutions directly from the competition. It is possible to adjust the height of the rear axle as well as the height of the front rockets in order to adjust the chassis perfectly. At the front, the carrossing and hunting settings are easy thanks to Sniper's exclusive system, which is known for its precision and speed of adjustment.

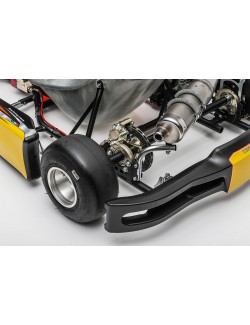

The VEN 12 floating disc brake system Ø162 mm (smelter and steel) equips the entire racing range, ensuring a powerful and constant braking. The chassis comes complete with MK20 slings and sticker kit.

On the equipment side, this model also features high-end components such as magnesium rims, ensuring performance and reliability in all conditions.

Technical specifications

• Category: Mini – Cadet

• Approval: 002-CH-18

• Ø Tubes: 28 mm

• Wheelbase: 950 mm

• Rear width (B2): 600 mm

• Front width (A2): 646 mm

• Ø Axle: 30 mm

• Brake system: Hydraulics / VEN 12

• Brake disc: Floating steel Ø 162 mm

• Tank capacity: 3.0 L

• Flying: Black / Orange Ø 340 mm

• Rear hubs: Aluminium

• Headquarters: Resin

• Wheels: 110 / 140 aluminium
