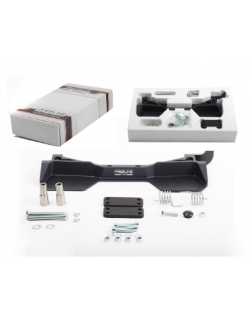

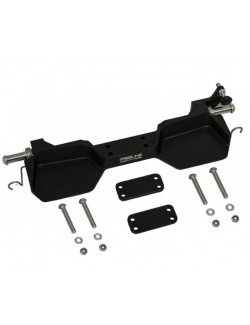

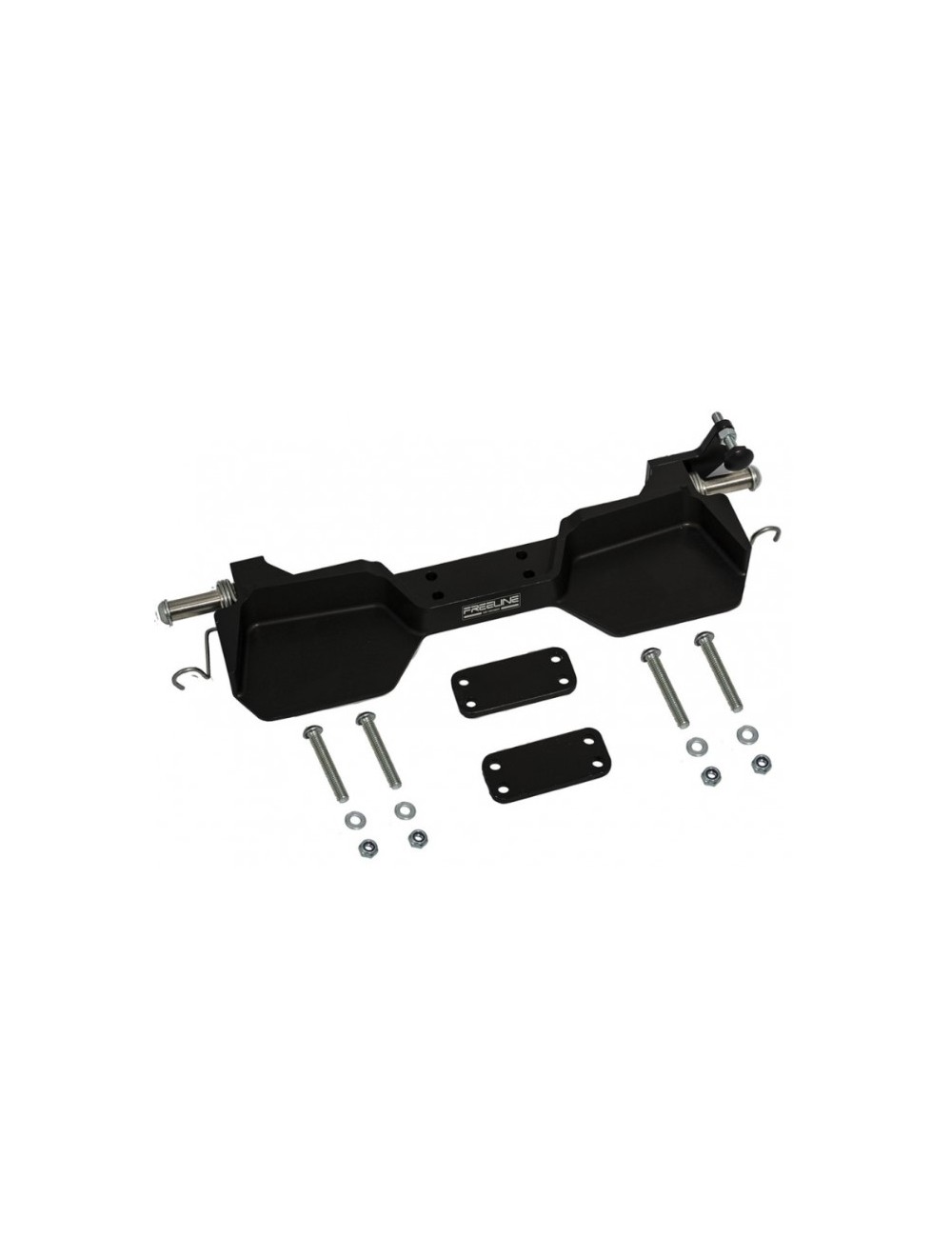

BIRELART-CL REGULATORY PEDALIER

This high-end adjustable pedal system, machined in the mass (Ticket), is a piece of technical gold from the competition department of Birel ART. It allows to adjust the distance of the pedals with millimetre precision thanks to a sliding support anchored directly on the steering column support.

This is the ultimate solution to ensure an ergonomic driving position, better braking control and more precise acceleration without having to change the frame.

Characteristics Technical:

• Compatibility: Chassis Birel ART, Charles Leclerc (CL), Ricciardo Kart.

• Manufacture: Aluminium cut in mass (Billet) for absolute rigidity and feather weight.

• System: High-precision sliding support allowing the whole pedal to move forward or backward.

• Anchoring: Robust mounting on steering column support.

• Finish: High quality anodization in official colours.

CAUTION: This kit includes the adjustment system and sliding support. Pedals are not included. You must reuse your original pedals or order them separately from our site.

The Council of Michel (Magickart): Comfort is the tenth best!

"A pilot who pushes on his legs to reach the pedals is a pilot who tired quickly and lacks precision. My expert advice: This kit is a revolution for growing drivers. Rather than tinkering with unstable holds, you move the entire pivot point. This keeps a natural feeling under the foot.

Essentials with your adjustable kit Birel ART:

• Pedals Birel Original ART: Make sure you have the compatible pedals for a 'Plug & Play' mounting.

• Long accelerator cables: As you push the pedal, you may need a higher cable length.

• Clips 5mm (Omega): Take advantage of this to put new clips on your axes during pedal transfer.

A little pro secret: Lightly grease the sliding rails before mounting. This allows ultra-fast adjustments between two sleeves if you change your driver or refine your position. At Magickart, we know that a good position is the basis of performance in the League!"

Tuto : Installation and adjustment

1. Dismantling: Remove your current pedals from the chassis.

2. Fixing the support: Install the "Billet" support on the steering column tube. Do not tighten it up immediately.

3. Sliding: Drag the system to find the ideal distance. Check that the pilot's heels are naturally resting on the stops.

4. Locking: Once the position is found, firmly block the fixing screws.

5. Verification: Make sure the brake rod and accelerator cable work freely throughout the race, without a hard spot.

Why choose Magickart for your accessories Birel ART?

• Origin Certified: Authentic piece of the group Birel ART (Lissone, Italy).

• Look Racing: The mass-cut finish gives your cockpit an incomparable "Usine" look.

• Expert Support: Do you have any doubts about mounting your chassis model? Michel is here to help you by phone or email.

Ready to optimize your driving position? We validate this "Billet" kit for your Birel ART?
