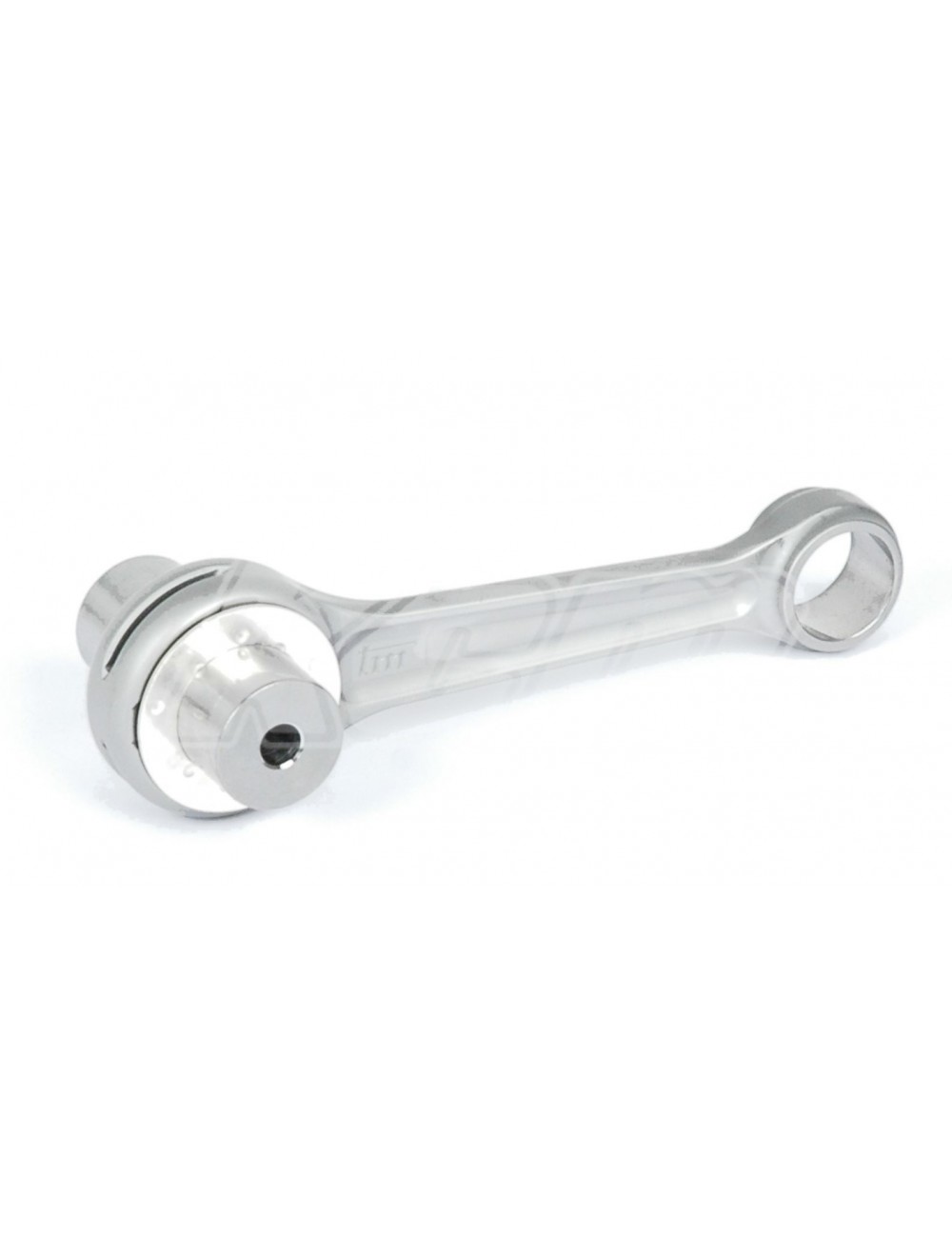

KNILE KZ 10B -R1-R2-R3 22 CPL Complete axis

Summary: robustness at the service of the crankshaft

The Rod 22 cpl with full axis (full) is the solution chosen by many motorists seeking to maximize the rigidity of the embiellent. Unlike pierced versions, the solid coast is a contact surface and uninterrupted structural mass.

This kit is designed to support huge engines combustion pressures TMKART KZ10B, R1, R2 and R3. It guarantees minimal deformation of the extreme carbon coat, thus preserving the perfect alignment of the crankshaft masses during brutal acceleration phases.

- Why choose the TMKART Full Full Axis Kit?

1. Maximum rigidity: The absence of drilling in the curse avoids any micro-flexion, ensuring increased longevity of crankshaft bristles.

2. Graduate steel quality: Wrought in a high-strength steel with cemented surface treatment for exceptional rolling hardness.

3. Universal compatibility: Adapts to all crankshafts of the efficient line: KZ10B, R1, R2 and the new R3.

4. Stable balancing: The mass full of the coleton participates in the inertia and the vibration balance of the bottom-engine.

💡 Michel's trick

"The full axis is the 'Old School' choice that has been proven! My Pro Council: If you opt for the full-axis on your R2 or R3, Make sure you have a perfectly adjusted carburation and a high quality mix. Small trick: Since the axis is not drilled to force the passage of the oil, the rod counts on the lateral lubrication slots of its head. It is therefore crucial that your wedlock new and your side game is perfectly adjusted (between $ 0,40 $ and $ 0,50 $ mm according to the series) to leave the oil flow freely. "

- Mounting & Maintenance Guide

• Installation: Requires a precision hydraulic press. Crankshaft centering must be controlled to the comparator (round-round lower than $ 0,02 $ mm).

• Complete kit: Never mix new and used components. Use the set of kit (rod, axis, cage and washers) to ensure reliability.

• Interval: In competition, a preventive replacement all 30 to 40 hours is strongly recommended to avoid metal fatigue.

- Technical specifications

• Brand: TMKART (Origin Italy).

• Reference: 22 CPL (complete kit).

• Axle (Marenet): Full (not pierced).

• Motor compatibility: TM KZ10B / KZ10C / R1 / R2 / R3.

• Composition of the kit: * 1 rod body 22.

  • 1 full-rectified coast.

  • 1 cage with connecting rod head (silver).

  • 2 Side friction washers treated.

✅ Why buy at Magickart?

• Factory direct: 100% TMKART parts, the guarantee of Italian performance.

• Specialist delivery: We know that every minute counts for your revisions between two races.

• Technical assistance: A question about editing? Our experts are there to help you.

Note Magickart: The full-axis version is ideal for pilots favoring the gross structural strength of their basty motor.
