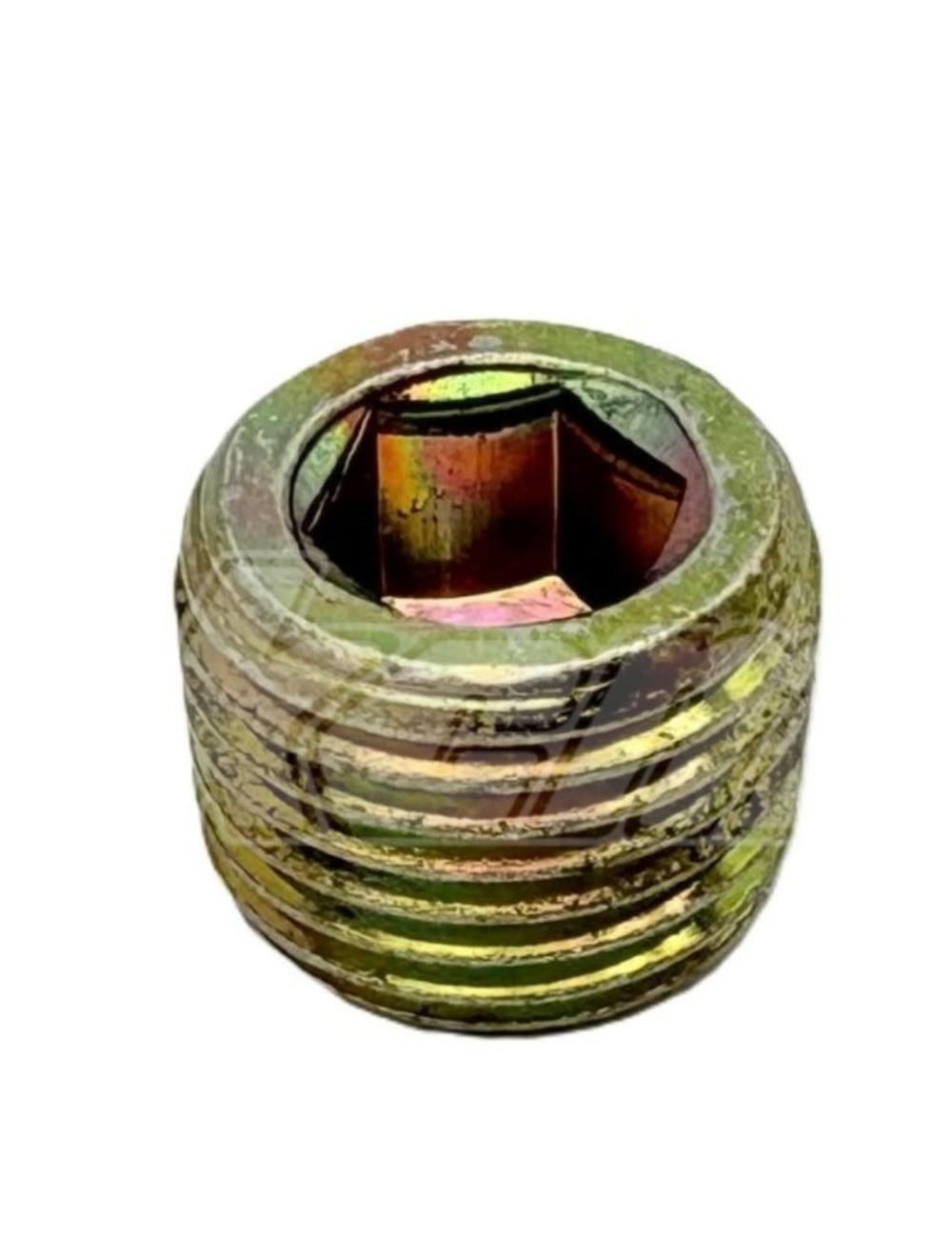

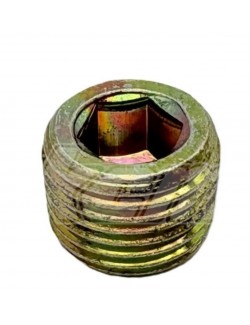

Rotax 1.8 torque plug 10 mm (16)

Full description of the product (H1: Cylinder head cap Rotax 10 mm "1.8 Torque" - original piece)

The cylinder head cap Rotax 10 mm (engraved 1.8 torque) is a spare part of origin manufacturer (Original Rotax Racing). It is designed to tightly seal one of the threaded cylinder head orifices (cylinder cover) on all the engines of the range Rotax 125 Max (Micro, Mini, Junior, Max Senior, Max Master and DD2).

Machined according to strict micrometric tolerances, this brass plug or high strength alloy has a thread of 10 mm. Its flat head includes plant engraving "1.8 Torque", indicating the pilots and mechanics the regulatory torque recommended by the plant (1.8 N · m) not to damage the aluminum thread of the cylinder head. This plug ensures absolute sealing of the liquid cooling circuit, avoiding any pressure drop or heat transfer leak at high speed.

Technical characteristics:

• Engine compatibility: All engines Rotax 125 Max (monovite and dd2)

• Thread diameter: 10 mm (M10)

• Safety marking: Engraving "1.8 Torque" on top

• Function: Waterproof closure of the cylinder head cover / water circuit

• Origin: Certified Original JAG Rotax (Mandatory for technical conformity in the race)

- 3. Tip in Michel (the corner of the expert)

* "Hi the artists of the key 10! This little cylinder head cap, he looks all stupid, but his engraving '1.8 Torque' is there to save you the bet. The cylinder head of a Rotax is aluminum, a tender material. If you tighten this plug like a deaf to the eye, you will make the net of your cylinder head at all the blows, and there is the drama (and a new cylinder head to pay) !

My old old trick: always use an O-ring or a new sealing washer Whenever you touch this cap. Do not go back with old crushed seal.

For tightening, if you do not have a small graduated torque wrench at 1.8 n · m under hand in the stands, make a tightening 'contact' by hand, then give just a small quarter turn closed to the key, without forcing with the wrist. It's very enough to crush the gasket and make the circuit tight without attacking the aluminum! "*

- 4. The replacement guide: step by step

❓ 5. FAQ SEO (Frequently Asked Questions)

Q: What does the registration "1.8 Torque" engraved on the cap ?

A: This registration indicates the maximum tightening torque recommended by the manufacturer Rotax, which is 1.8 Newton meter (N · m). Observe this value avoids irretrievably damage to the aluminum internal threads of the cylinder head cover.

Q: Is this 10 mm plug delivered with its seal ?

A: This product corresponds to the original cap (complying with the nomenclature of the spare parts Rotax). We strongly advise you to control the O-ring or the appropriate sealing washer in addition to guaranteeing a perfect waterproofness of the water circuit.

Q: Is it authorized in the official competitions Rotax Max Challenge (RMCF) ?

A: Yes I do. With regard to a formal piece of origin recorded in the manufacturer's catalog Rotax, This cap is 100% compliant with national and international technical regulations for all official races.
