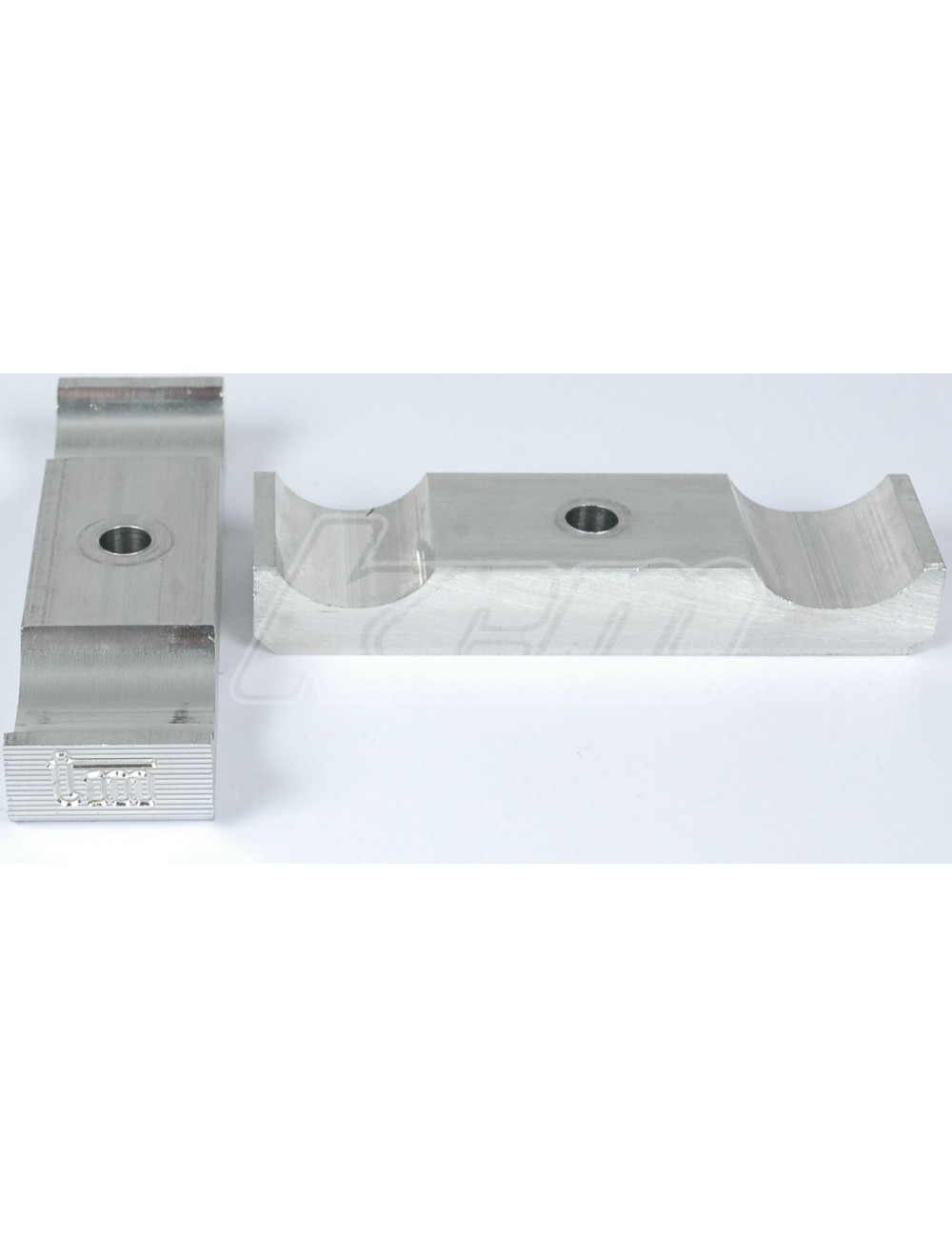

PLATIN BRIDGE TMKART

Kart Platinum Bride (Ref: 50014) – Origin Factory

The platinum flange TM Kart is the specific part necessary to firmly anchor your KZ engine to your chassis. Made of high quality aluminum directly in the factory TM Kart In Pesaro, it ensures a rigid and reliable connection, capable of collecting the phenomenal torque of the competition engines.

Its design "Part of Origin" ensures perfect alignment with the holes of the official TM plate, thus avoiding unnecessary mechanical stresses on the engine crankcase and parasitic vibrations.

Specifications Technical:

• Make: TM Kart (Certified part of origin).

• Official reference: 50014.

• Material: High-strength aluminium.

• Entrax: Standard TM Kart (approximately 90-92 mm).

• Compatibility: * Engines: TM K9, KZ10, KZ10B, KZ10C, KZ-R1, R2 and R3.

  • Chassis: All tubes 30 mm or 32 mm (depending on the plate used).

• Packaging: Sold individually.

Magickart Loyalty Program: By securing your engine with original parts, you can combine loyalty points Magickart, perfect for your future needs in screws or lubricants!

Michel's Council (Magickart): Secure your editing!

"Platinum flange is not chosen at random. If it is not perfectly adapted, it can split or, worse, distort your plate.

My expert advice: Be careful, these flanges are sold individually. For a complete engine assembly, don't forget to order two! The original TM is the only one that ensures uniform clamping on the chassis tube.

The essentials with your TM flanges :

• High resistance M10 screws: Never reuse marked screws. A moving KZ engine is a chain that jumps immediately.

• Engine Platinum TM Magnesium: The perfect duo for maximum stiffness and feather weight.

A little pro secret: Check the clamping of your flanges after each driving session. At Magickart, we don't laugh with the motor fastening: the origin TM Kart is safety above all!"

Tuto: Assembly and Alignment

1. Positioning: Place the plate on the chassis tubes.

2. Insertion: Slide the flanges (sold by unit) under the tubes.

3. Approach: Tighten the screws by hand until contact is reached.

4. Alignment: Line your pinion and crown perfectly before the final block.

5. Lock: Tighten evenly so that the flange perfectly plates the tube.

Why choose Magickart for your pieces TM Kart?

• 100% Official: We are distributor parts factory TM Kart to guarantee your performance.

• Permanent stock: Essential part always available for immediate departure.

• Pro's advice: A team of enthusiasts to confirm compatibility with your equipment.

Need an impeccable engine mount? Get your original TM Kart flanges ready
