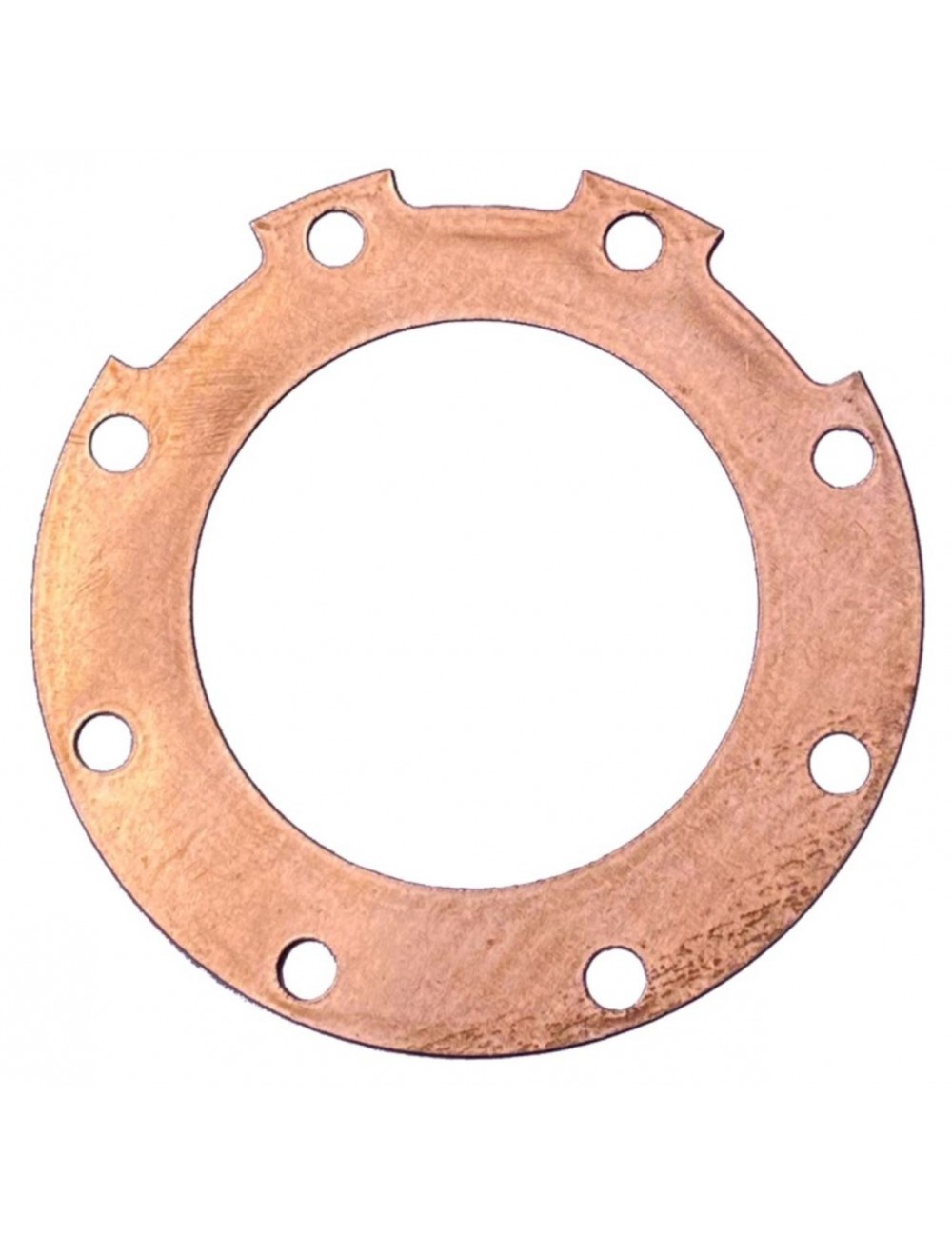

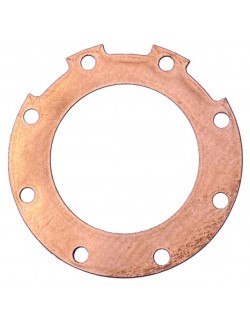

Copper cylinder head gasket KZ-R2 0.10 TM-KART

Summary: the standard of performance

The Copper cylinder head gasket 0.10 mm is probably the most used thickness by KZ drivers. It is the ideal adjustment base for the engine Tmkart kz-r2. This seal makes it possible to obtain a powerful volumetric ratio while maintaining a necessary thermal safety margin during the disputed finals.

Thanks to its pure copper composition, it provides ultra-fast heat transfer to the cooling circuit, thus avoiding the phenomena of detonation (rattling) that often occur with joints of less good quality.

- Why choose the thickness 0.10 mm?

1. The ideal balance: This is the perfect transition thickness. It offers more compression than a 0.20 mm without being as radical and demanding than a 0.05 mm.

2. Official quality TMKART: Cut according to the exact specifications of the plant to fit perfectly to centering the cylinder head and cylinder.

3. Thermal material: Copper ensures a stable seal even under very high exhaust temperatures.

4. Versatility: Suitable for the majority of standard cylinder head domains to reach a squish close to $ 0,95 $ mm to $ 1,00 $ mm according to your base seal.

💡 Michel's trick

"The 0.10 seal is the 'Swiss knife' of your KZ engine! My advice: If you do not know where to start your SQUIS settings on an R2, PARS on a 0.10 mm basis. This is the thickness that forgives the most while offering performance high level. Small trick: Before putting it, checks that it is perfectly flat. If it has been stored at the bottom of a toolbox and it is gondolate, gently straightening it on a clean glass. The tightness of a seal as thin depends at 100% of the flatness of your surfaces! "

- Mounting & Volume Guide

• Preparation: Degrow the support surfaces to acetone. No trace of oil should remain between copper and aluminum.

• Measure: After tightening to the couple ($ 10-12 $ NM), always make a pewter measure to validate that your real squish matches your expectations.

• Tightening: Always carry a cross tightening (in star) to crush the joint in a uniform manner over the entire circumference.

- Technical specifications

• Brand: TMKART (original room).

• Compatibility: KZ-R2, KZ-R1, KZ10C, KZ10B.

• Material: High copper high conductivity.

• Thickness: 0.10 mm.

• Bore: 54 mm.

✅ Why buy at Magickart?

• Builder warranty: You receive the official TMKART piece, not a copy.

• Secure shipping: We deliver our joints in rigid packaging to prevent them from being pleased.

• All thicknesses available: Also find 0.03 / 0.05 / 0,15 and 0.20 mm to refine your settings.

Note Magickart: A copper cylinder head gasket never reuses. Once crushed, he loses his ability to deform to seal. Change it to each disassembly!
