By buying this product you can collect up to 84 loyalty points. Your cart will total 84 points that can be converted into a voucher of €8.40.

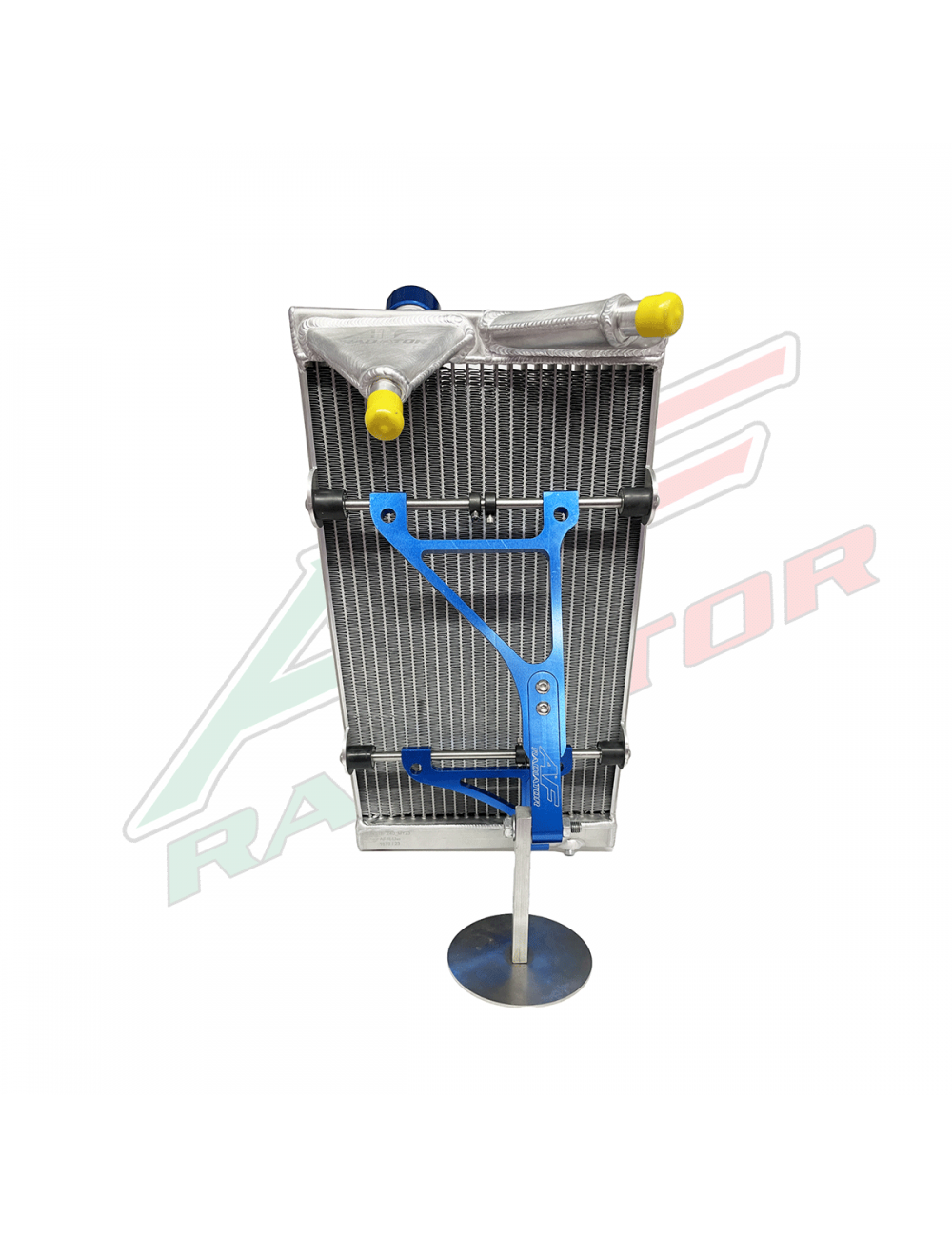

Karting Radiator AF R Uno Standard - AF Radiator
The Radiator AF R UNO Standard represents excellence in cooling for karting. He is Designed and manufactured 100% in Italy by the AF Radiator experts, using HIGHTECH MATERIALS FROM THE WORLD COMPETITIONS GTensuring a very high level of performance and finish.
Each radiator is fully handmade, with special care brought to every detail, to ensure constant quality and optimal thermal efficiency. Despite its high technological level, the ROIER R UNO STANDARD displays a extremely reduced weight of only 1.6 kg, making it one of the lightest radiators in its class.
Design and technology
The ROIER AF R UNO STANDARD benefits from advanced technical solutions:
-
Corroded very close and very light, greatly increasing the heat exchange surface
-
Double-flow system with "U" forced recirculationensuring homogeneous heat dissipation
-
Entrance and outlet of V-shaped water, designed to direct the liquid on the entire radiator mass and exploit the entire available surface
-
Uniform fluid distribution, ensuring constant thermal stability of the engine
All these features makes it possible to obtain a Perfect compromise between cooling efficiency, weight and reliability, indispensable in high level competition.
Applications and compatibility
The standard AF R radiator is recommended for all categories of karting, including:
-
OK
-
Kz
It is used and recommended in the Karting Championships, the Italian Cup, the Italian Championship, the European Championship, the World Championship, as well as in WSK, ACI and FIA competitions.
Dimensions and weight
-
Dimensions: 430 × 240 × 40 mm
-
Weight: 1.6 kg
Amenities provided
The standard AF R Radiator is delivered complete with:
-
Caps
-
CNC machined aluminum supports, cut in the mass
-

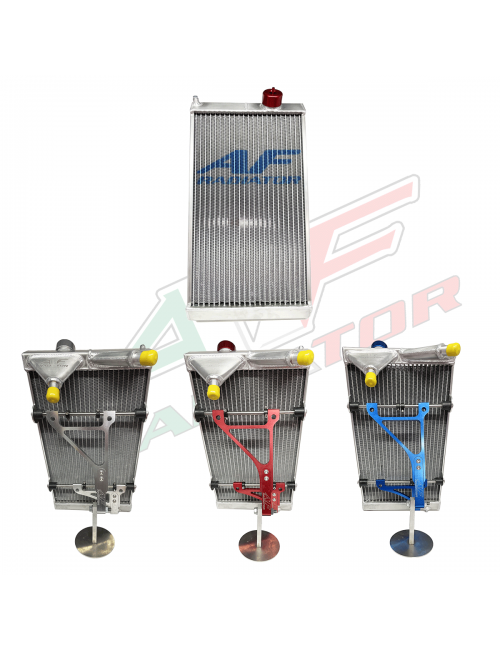

Supports available in Red, blue and silver
Benefits
-
100% Italian manufacture
-
HIGHTECH MATERIALS FROM THE GT COMPETITION
-
Very high cooling efficiency
-
Extremely reduced weight
-
Hi-quality craft finish
-
Suitable for national and international competition
Mounting tips
To ensure optimal performance and preserve the reliability of the engine, it is recommended that the radiator assembly be entrusted to a karting professional, in particular for a competitive use.
Comparative sheet - Radiator AF radiators
R Uno Standard / H1 Standard / H2 BIG / AF2
| Features | R UNO STANDARD | H1 standard | H2 Big | Af2 |
|---|---|---|---|---|
| Mark | AF RADIATOR | AF RADIATOR | AF RADIATOR | AF RADIATOR |
| Range | Premium ultra light | Versatile | High performance heat | High-end competition competition |
| Manufacturing | 100% Italy, Handicraft | Italy | Italy | Italy |
| Categories | OK / KZ | OK / KZ | OK / KZ | OK / KZ |
| Technology | Double flow + recirculation in "U" | Bi-flow | Bi-flow | Flow optimized by geometry |
| Cooling principle | Corrged close + V Input / Output | Forced recirculation in U | Forced recirculation in U + increased mass | Large radiation surface |
| Radiant heart | High ultra light density | Light | Extra Light (upper volume) | High efficiency |
| Cooling capacity | Very high | Very good | Excellent | Very high |
| Thermal stability | Excellent | Very good | Excellent | Excellent |
| Hot conditions | Very good | Good | Very high | Very high |
| Aerodynamic | Optimized | Optimized | Optimized | Advanced |
| Dimensions | 430 × 240 × 40 mm | 435 × 242 × 48 mm | 435 × 290 × 48 mm | 440 × 300 mm |
| Weight (kg) | 1.6 kg | 1.94 kg | 2,25 kg | Non-communicated |
| Cap | Included | Included | Included | Included |
| Media | CNC aluminum | CNC aluminum | CNC aluminum machined in the mass | Standard accessories |
| COLORS MARKETS | Red / Blue / Silver | Red / Blue / Silver | Red / Blue / Silver | Standard |
| Ideal seasons | All seasons | Spring / fall / winter | Summer | Summer / strong heat |
| Recommended use | High level competition | Competition / training | Strong heat competition | Elite competition |
Fast synthesis for the customer
-
R UNO STANDARD : Ultra light premium radiator, ideal for pilots looking for the best compromise between weight and thermal performance.
-
H1 standard : Versatile and light radiator, excellent value for money for wide use.
-
H2 Big : Radiator designed for high temperatures, with upper water capacity and cooling.
-
Af2 : High-end radiator focused on maximum thermal performance and advanced aerodynamics.
Board assembly
To ensure optimum efficiency and preserve the reliability of the engine, the assembly of these radiators must be carried out by a karting professional, especially in a competitive setting.
RUNO23STD
