By buying this product you can collect up to 8 loyalty points. Your cart will total 8 points that can be converted into a voucher of €0.80.

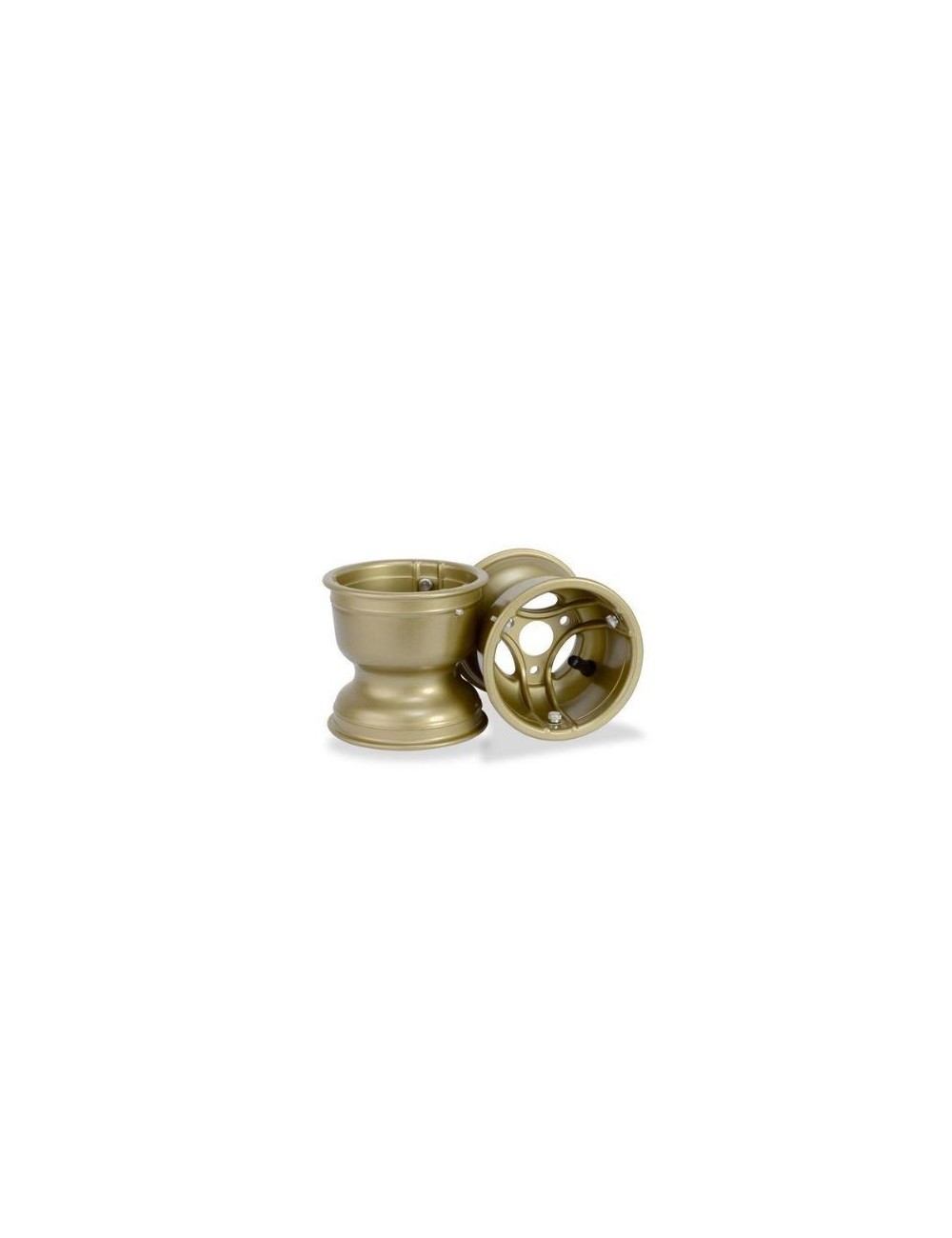

The magnesium rim OTK MXJ 130 mm is the absolute reference that team teams the largest chassis of the group OTK (Tony Kart, Kosmic, wished, Redspeed, LN Kart). Designed for high-level competition, this high-end front rim combines maximum structural lightness and ideally calibrated rigidity.
Thanks to the exceptional thermal properties of magnesium, the MXJ rim ensures a Excellent heat dissipation, thus stabilizing the pressure and temperature of your tires throughout the sleeves. It is particularly recommended in the fresh track conditions or when the use of hard gum requires a fast temperature rise and an optimal grip.
Material: High quality magnesium (ultra-light and robust)
Width: 130 mm (standard before)
Fixing distance: Standard 3 holes / 58 mm
Packaging: Sold individually (delivered with its valve and its gripsters / locking screw)
Compatibility: Universal with almost all market chassis hubs (3x58 center distance), With the exception of group chassis CRG (which use a specific fixation distance).
"Hi the pistards! The MXJ in magnesium is the rim passes everywhere as soon as the track lacks a little grip or it is fresh. On the other hand, attention to magnesium: it is a noble material but which does not like stagnant moisture. \ N \ NMON TIP When you change your tires: Always put a small dry cloth stroke inside the rim to remove mounting paste and moisture residues. And when screwing the retention gripsters (the small screws for not that the tire Allay), go Mollo at the tightening, no need to tighten like a deaf on pain of fooling the thread in the magnesium!"
Lubricate the heels slightly from your front tire with specific mounting paste for karting. Thread the tire on the MXJ rim respecting the direction of rotation indicated on the side of the gum.
Inflate the tire until the heels come to clip perfectly on the edges of the rim. Warning: Never exceed the maximum pressure recommended by the tire manufacturer for this operation.
Once the tire is perfectly clipped and in place, gently screw the Gripsters screws (provided) into their housings provided on the rim side to block the tire heel.
Clean the support face of your front hub. Place the rim on the 3 studs (3x58 mm distance). Tighten the 3 crossed and uniform wheel nuts, ideally with a torque wrench to avoid distorting magnesium.
Q: Why is this rim not compatible with the group chassis CRG ?
A: The group CRG (Also including Maranello, Dino, etc.) brands historically use a different drilling distance for its front hubs. Rims OTK have a standard 3-hole center center center centerpiece, incompatible with hubs CRG specific.
Q: What is the difference between the rim OTK MXJ and the MXC model?
A: The mxj rim is the standard "versatile" model, ideal for generating rapidly grouped grip or slippery. The MXC model is more typical for highly elanted high heat or track conditions ("absolute grip") to prevent the tire from overheating.
Q: Is the rim delivered ready to rise?
A: Yes, every rim OTK MXJ 130 mm is delivered complete with its tubeless valve installed as well as its heel locking screws (Gripsters) and their seals.
The LECONT LOH tyre is a must choice for demanding karting drivers. Approved from 2024 to 2026 in the KZ category, this tire is manufactured in Italy by Lecont, a company recognized for its quality and expertise in the production of competitive tires.
Karting tire Mojo D5 CIK is a CIK approved tire, specially designed for Max Senior, Max Masters, DD2 and DD2 Masters categories. It is used for brand cup Rotax France as well as for the Rotax Max Challenge International Trophy (RMCIT), Euro Trophy and Winter Cup Rotax89. This tire is recognized for its performance and durability, making it a privileged choice for high-level karting competitions.
The Iame X30 Water Pump - S125 Aluminum is one original partnerspecially designed for Iame X30 and S125 karting engines. Made in High strength aluminum, this pump ensures a optimal cooling engine, guaranteeing constant performance and an maximum reliabilityeven in the most demanding conditions of competition.
This new aluminum version replaces the old blue plastic pump, offering a Sustainability and superior resistance. Thanks to his Aluminum alloy molded body, it attaches to all chassis with a Diameter screw 6 or 8 mm max. His 33 mm wide base permit solid support and an optimal tension of the belts.
Designed for Resist wear and corrosion, this pump is indispensable To maintain a stable temperature engine, avoiding the risks of overheating and extending the life of internal components.
piston TM Racing 10085 Represents the elite of engine technology for KZ categories. Designed specifically for the last generations of engines (KZ10C until R2), this model to Flat sky (zero degrees) is the absolute weapon to optimize combustion. Equipped with a Eightened segment of 0.8 mmIt drastically reduces internal friction, releasing more power at high speed.
Theroller bearing 6206 – BC1-3342B (former 6026)is acrankshaft bearingused on enginesIAME X30 products after 2021. It replaced the classic ball bearing that was found on previous generations of this engine.
The TM Racing KZ 10C R1 R2 - Semi-Flat is an indispensable spare part for KZ engines, offering optimal performance and increased durability. Designed to improve the filling of the motor housing, this semi-flat piston is compatible with KZ10C, KZ R1, and KZ R2 engines. Trust Magickart for quality products and exceptional customer service.
The magnesium rim OTK MXJ 130 mm is the absolute reference that team teams the largest chassis of the group OTK (Tony Kart, Kosmic, wished, Redspeed, LN Kart). Designed for high-level competition, this high-end front rim combines maximum structural lightness and ideally calibrated rigidity.
