| Specification | Technical details |
| Product type | Adjustable radiator holder carved in the mass (CNC) |
| Mark | IAME (Original Genuine Parts) |
| Motor compatibility | IME X30 & IAME S125 |
| Radiators compatibility | Size models 410 x 186 mm and 410 x 230 mm |
| Material & Finishing | Aluminum High Quality Machined CNC / Black anodization |
| Total weight | 500 g (Ultra-light and rigid design) |
| Equipment included | Water recovery, Transparent hose, complete screws |
Designed to meet the requirements of pilots in search of performance and reliability, the original Iame radiator holder is specially developed for engines IME X30 and S125. Made of high quality aluminum machined in the mass (CNC), it combines lightness, robustness and adjustment accuracy for optimal mounting on any type of karting chassis.
Thanks to its adjustable structure, this support fits perfectly with the majority of water radiators with dimensions 410x186 mm or 410x230 mm. It allows to adjust to the orientation and position of the cooling matrix to optimize the airflow and maintain an ideal engine temperature during the most intense race conditions.
To ensure an ever cleaner cooling system and compliant with the environmental circuit standards, this kit is comes complete with its water recovery vase. It can channel any overpressures and cooling liquid spills by launching, avoiding any slippery projection on the track or on your tires.
* "Hi the passionate of the X30 and the S125! A good radiator bracket made in the mass like this model Iame CNC, that is what makes the difference between a stable cooling system and a sheet metal ted that twists the first vibrator. With its 500 G On the scale and its black anodized finish, it's the beautiful machined piece !
My stand mechanical trick for perfect mounting: the guidance of the overflow hose and the timing of the silent bloc !
When installing the small water recovery vase supplied in the kit, be sure to adjust the length of the transparent hose overflow. Cut it without leaving a 'belly' too long where the liquid could stagnate. It must smoothly descend from the radiator cap to the bottom of the container.
Second small tip: At the corner adjustment of your radiator (410x186 or 410x230 mm), press the CNC bracket only once the radiator is positioned in its natural alignment with respect to the seat. By removing any twisting constraint on aluminum, you preserve the radiator fasteners and you guarantee cooling to the top session after session! "*
Put the kart on his carriage. Locate the ideal position of the Iame CNC bracket on the chassis or tub tube taking into account the size of your radiator (410x186 mm or 410x230 mm).
Attach the radiator to black anodized aluminum support using the supplied hardware. Adjust the desired inclination to maximize air penetration.
Mount the water recovery vase on its dedicated location on the support. Follow the tip in Michel: Connect the transparent hose of the radiator cap to the bocal recuperator without tight elbow.
Check that the radiator does not ride against the left rear tire or the tub. Block the hardware firmly. Your Iame set is ready for the track !
Q: Is this radiator support compatible with other engines than the X30 Iame and the S125 ?
A: Although specially developed by Iame for block geometry X30 and S125, This adjustable media can adapt to most chassis equipped with standard radiators with 410x186 mm or 410x230 mm dimensions (Rotax, OK, Modena ...), subject to the necessary space along the seat.
Q: What exactly contains the delivered kit ?

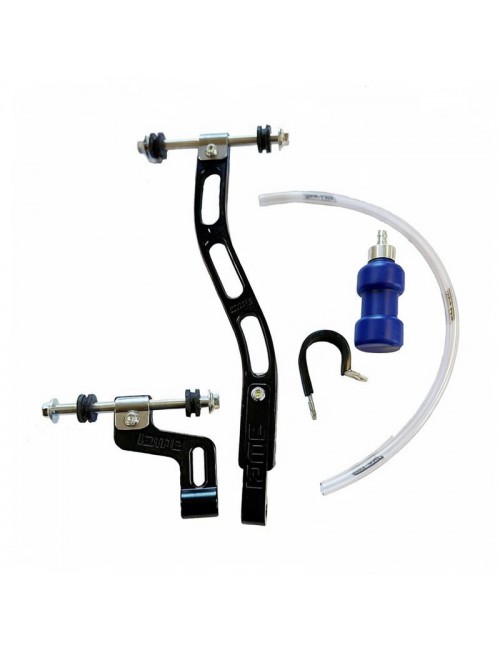

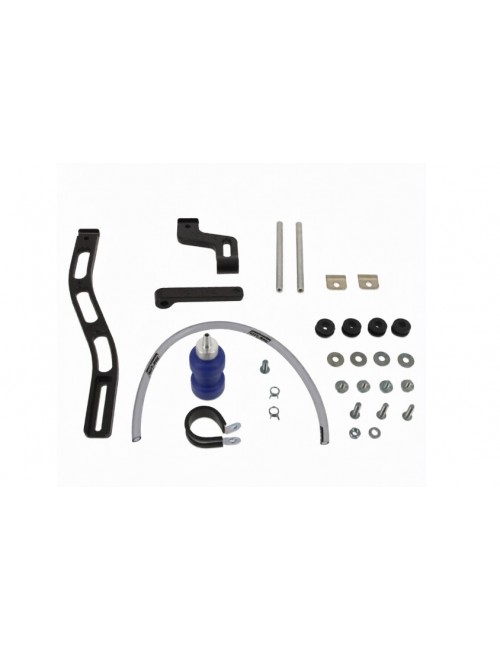

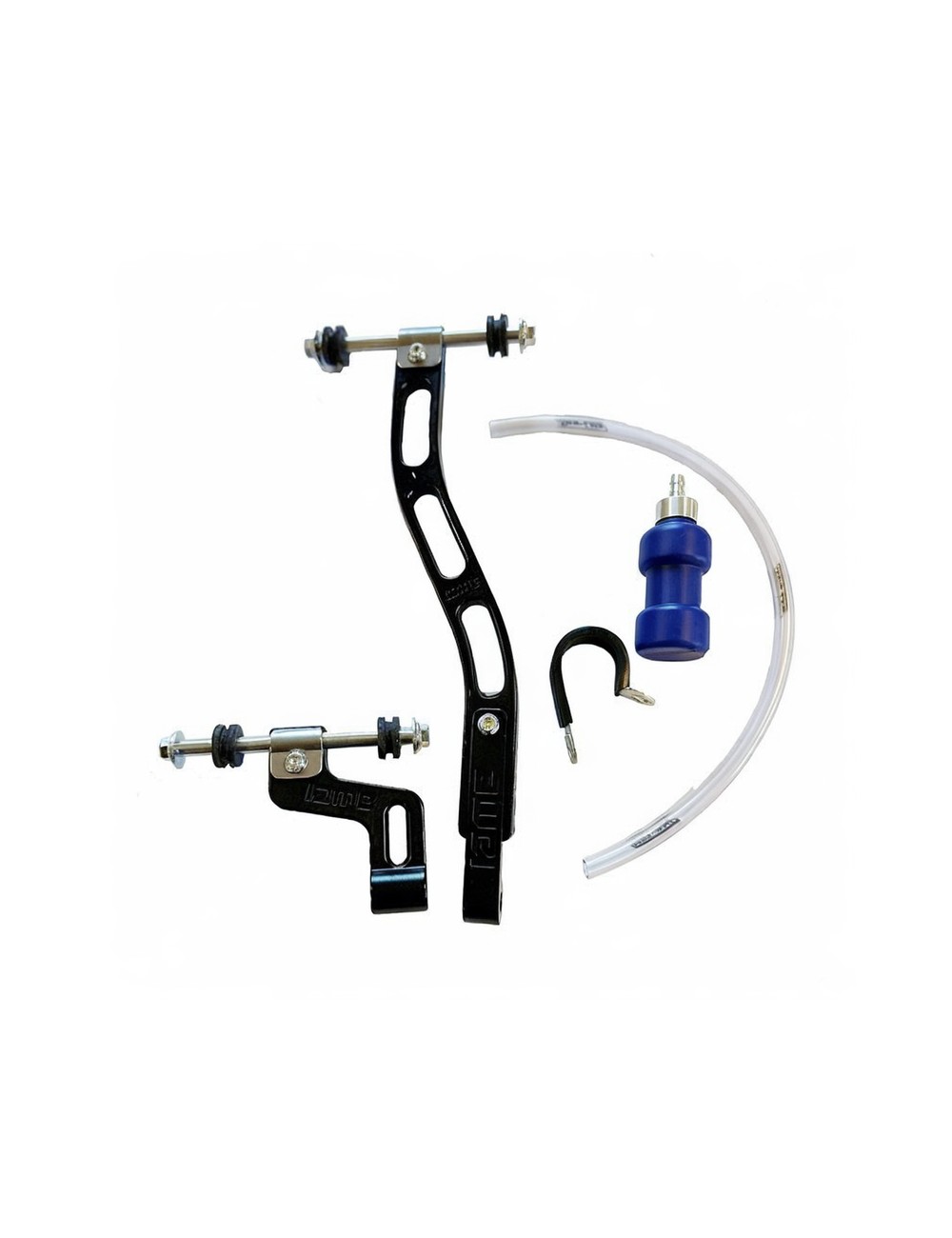

A: The kit includes the entire CNC machined aluminum radiator support (black anodized), the small vase / jar water recovery, the transparent connection hose and all the stainless steel hardware required for complete mounting.
Q: What is the difference between a 410x186 mm and 410x230 mm radiator for this support ?
A: The 410x186 mm dimension corresponds to a standard radiator (ideal for mid-season and moderate temperatures), while the 410x230 mm size denotes a wider radiator (large volume for strong summer heat). The adjustable design of this Iame support can accommodate these two formats without modifying the basic anchor.
