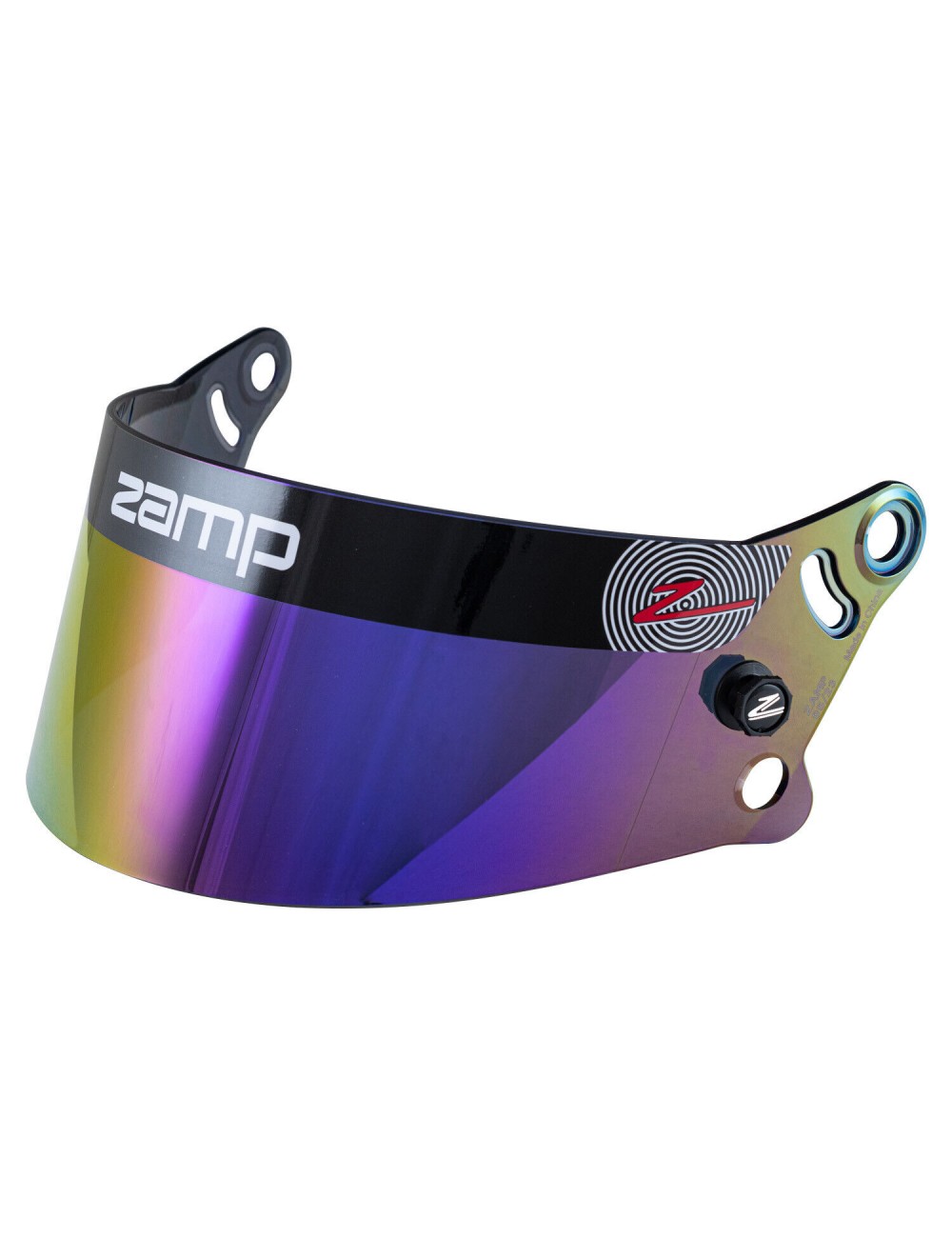

Zamp Violet screen Prizm Z-20 series FIA

Zamp Z-20 series protections are specially designed to fit all Zamp RZ series helmets. These 3 mm thick Zamp Z-20 shields are equipped with detachable rods and anti-fog coating, offering maximum visibility and protection. The Zamp Violet Prizm Z-20 Series is compliant with FIA standards, ensuring optimal safety and performance for karting drivers.

Technical specifications

Benefits

• Optimal visibility: The Prizm purple colour improves visibility under various light conditions, reducing glare and increasing contrast.
• Maximum protection: Made of high quality polycarbonate, this screen offers excellent impact resistance and debris protection.
• Comfort: Lightweight and ergonomic, it ensures optimal comfort even during the longest races.
• Anti-Buea treatment: The built-in anti-fog treatment prevents the formation of water, guaranteeing clear vision at any time.
• UV protectionProtects the eyes from harmful UV rays, providing additional protection for pilots.
• FIA compliance: Meets FIA safety standards, this screen is approved for competitive use.
• Facility: Designed to easily adapt to Zamp RZ series helmets, with detachable rods for quick and simple replacement.

Use

The Zamp Violet Prizm Z-20 Series screen is ideal for all karting drivers, from amateurs to professionals. It is particularly useful in competition where visibility and protection are top priorities. This screen is designed to provide optimal protection while ensuring clear and undisciplined visibility, allowing drivers to focus fully on their performance.

Replacement Instructions

1. Preparation: Place a towel on a flat surface and place the helmet on it.
2. Withdrawal of Pivot Tenders: Remove the pivot tensioners from the shield on either side. This is the smallest screw on the sides of the shield.
3. Removal of Pivot Screws: Remove the pivot screws from the shield on either side. This is the biggest screw on the side of the shield. Use a coin to loosen/tighten these screws for better results.
4. Removal of Shield: Remove the shield. Use a cloth towel to wipe the rubber seal and where the visor is mounted on the helmet for better results.
5. Installation of the New Shield: Place the new shield on the helmet. Make sure the two white washers between the visor and the helmet are in place before relocating the visor.
6. Fixing Pivot Screws: Screw the pivots of the shield (larger screw) by hand to hold the shield in place. Once put on by hand, use a coin and tighten until they are properly adjusted with the helmet shell. Don't squeeze too hard.
7. Fixing Pivot Tenders: Hands-on the pivot tensioners of the shield, then tighten to the desired tension for the shield movement.

Important Note

• Do not use electrical tools: It is important not to use electric tools or too tight screws when changing protections to avoid damaging the shield or helmet.
• Do not use transparent film: Do not place the transparent film (provided on all standard visors) on Prism visors. This could damage the visor coating.

Conclusion

The Zamp Violet Prizm Z-20 Series FIA is an essential protection and performance accessory for all karting drivers. Its compliance with FIA standards, optimal visibility and maximum protection make it an ideal choice to ensure optimal protection and clear visibility on the runway. Lightweight and comfortable, this screen is easy to install and use, ensuring maximum protection and performance.

Don't wait and equip yourself with the Zamp Violet Prizm Z-20 Series FIA screen for optimal protection and visibility on the track !
