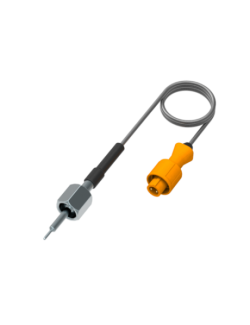

Alfano Temperature sensor type "K" (high quality) A-2151

Full description: the accuracy serving the timer

WHY CHOOSE THE TYPE PROBE K A-2151 OFAlfano ?

1. Instant responsiveness: Thanks to its peak design, the probe transmits the temperature variations to your screen Alfano Without latency, crucial during acceleration phases.

2. Robustness "Heavy Duty": Its reinforced shield protects the internal wires of the electromagnetic interferences of the ignition and the radiant heat of the pot.

3. Connector Pro: Equipped with the specific form Alfano For a direct connection to the systems Alfano 6, Adm, Pro III EVO (with extension if necessary).

4. Help with the carburation setting: It allows to find the ideal jet: too hot = too poor (risk of clamping), too cold = too rich (loss of power).

💡 Michel's trick

"The guys, the exhaust sensor is your engine life insurance! But beware of the installation: the sensor must be inserted at the correct depth in the collector (about the center of the gas flow). My advice: Do not tighten the fitting like a deaf And never bend the cable with a bright angle. If you make too tight curvature rays, you will break the internal filaments. And a last thing: if your temperature is over 650 ° C on a Rotax, quickly enrich your carburation, you are about to pierce the piston! "

🎓 TUTO: installation and connection

1. Drilling: The collector must be pierced to accommodate the probe fitting (often already present on the exhausts Rotax).

2. Positioning: Insert the probe so that the end is in the middle of the exhaust tube.

3. Sealing: Make sure the tightening olive is well positioned to prevent gas leakage that will distort the measurement.

4. Cable passage: Attach the cable along the chassis with Rilsan necklaces, leaving enough soft for motor movements on its silentblocks.

✅ Features

• Reference Alfano : A-2151

• Sensor type: Thermocouple type K

• Measuring range: 0 ° C to + 1000 ° C

• Compatibility: Alfano 6, Alfano Adm, Alfano Pro III EVO.

• Quality: Professional range (high resistance)

Note Magickart: Remember to check if you need the cable extension (Ref A-3401) depending on the location of your Alfano on the steering wheel.

Technical specifications

Feature	Details
Sensor type	Thermocouple type K (EGT)
Max temperature	1.200 ° C / 2.192 ° F
No net	Metric 12 x 1.5mm
Cable length	35 cm / 13.7 inch
Compatibility	Alfano 6, Pro III, Pro III EVO, ADM BX4, BX4 GPS, ADM BX 10

---

⚠️ Important notes for editing

Verification of the pot: Make sure your exhaust manifold already has the intended location. If this is not the case, you will need to obtain theSoldering nut (Ref a-272a) Available on our shop.

Connection: This sensor necessitates a Extension (Ref a-3401) To be connected to your Alfanoor a Y adapter (Ref a-2190) If you already use a water temperature sensor. Find these items in the "Accessories" tab below.

---

💡

---
