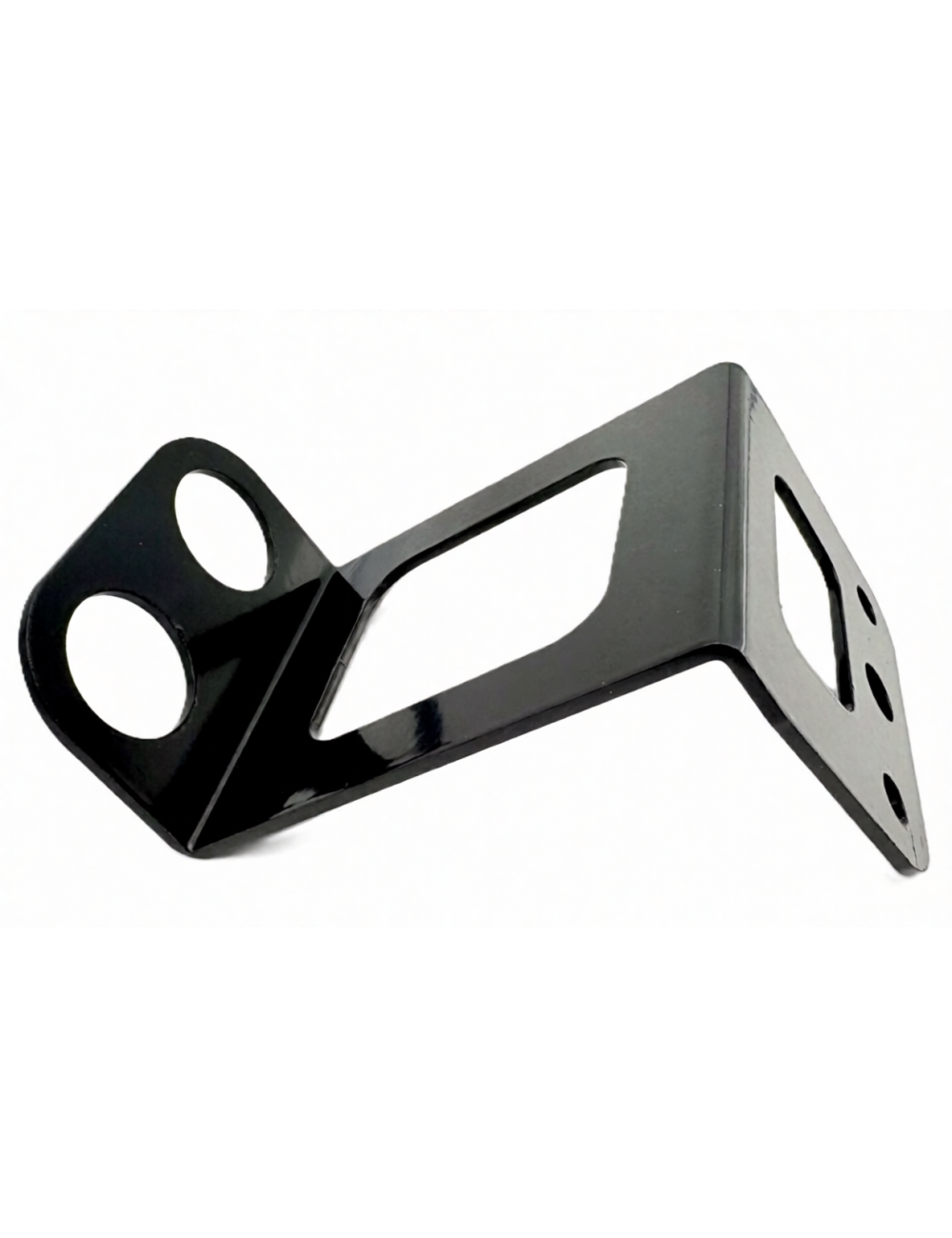

Supports 2 Buttons Hella - IAME X30 & KA100 - Origin

Secure and organize the control system of your karting with this original Iame Contactors Support.

Designed specifically for engines IME X30 (generation 2020 and +) and IAME KA100, this support makes it possible to fix the two essential contactors to the engine management cleanly and securely:

• The push button black for the start-up.

• The rocking button (or pusher depending on the model) red for thestop engine.

This original piece guarantees a robust installation, an optimal accessibility for the pilot and technical compliance with the settlement of Iame monotype categories.

Description and compatibility

• Original Party Party (OEM:) Made by Iame S.percent.A., certifying a manufacturing quality, an irreproachable finish and a perfect fit on your X30 and KA100 engines.

• Compatibility:

  • Iame engines X30 (all versions: Senior, Junior, Master, etc..) Perfectly adapted to the recent electric beam generation (2020+.)

  • Iame engines KA100.

• Function: Serves as a fixing plate for the two main contactors (Hella or Type Hella.) It usually mounted on the dashboard (flange) of the chassis, in the immediate vicinity of the steering wheel for use in the race.

Technical characteristics

• Part type: Support / Platinum of contactors / Dashboard.

• Usage: Fixing start and motor start and stop buttons.

• Capacity: 2 locations (1 for the black button, 1 for the red button.)

• Material: [To be inserted if known, ex: Anodized aluminum]

• Packaging: Sold individually, naked support (without the buttons or wiring.)

• Origin: Original Iame piece.

📖 Michel's trick

"Michel, our motorist expert, recommends you: When installing your contactors support, make sure that it is securely attached to your dashboard to avoid any vibration that could loosen the buttons nuts. I also advise you to put a brake tip. Low net (Loctite type 222) on the threads of contactors once in place for more security.For the connection, locate the ground and power wires for the black (momentary contact) and the ignition cutoff wires for the red button (Contact holding or impulses according to the CDI X30 / KA100). A bad connection could damage your electronic box.

⚠️ Security Council: Make sure the buttons are perfectly accessible and identifiable by the driver, even in an emergency situation. The red stop button must be operational and its position should not be obstructed by the steering wheel or other kart elements.

Order your original Iame contactors now on Magickart.fr to make your engine controls. Fast shipping.

❓ FAQ: your frequent questions

Q: Is this support compatible with the X30 engines before 2020 ?A: Yes, physically, the support can be mounted on the old versions of the X30 engine. However, it is specifically designed to accommodate the generation of standardized contactors and beams by IAME from 2020. If you have a very old model, check the drilling diameter of your current buttons.

Q: Is the support comes with the buttons ?A: Not. The support is sold naked (platinum alone.) Red and black contactors (Hella switches) as well as wiring are sold separately on our site.

Q: Where is this support exactly on karting ?A: It usually attaches to the left flange (or sometimes straight) of the chassis, which acts as "dashboard," just behind the steering wheel. It is positioned so that the driver can easily reach it with the left (or right) hand without letting go away.

Q: Why use an Iame original room rather than an adaptable part ?A: The original Iame parts are made with a strict specifications for materials and dimensions. This guarantees perfect compatibility with the original Hella buttons and excellent vibration resistance, avoiding that the support does not breaks or the buttons do not loosen in the race.
