Ø20 TM R1-R2-R3 clips

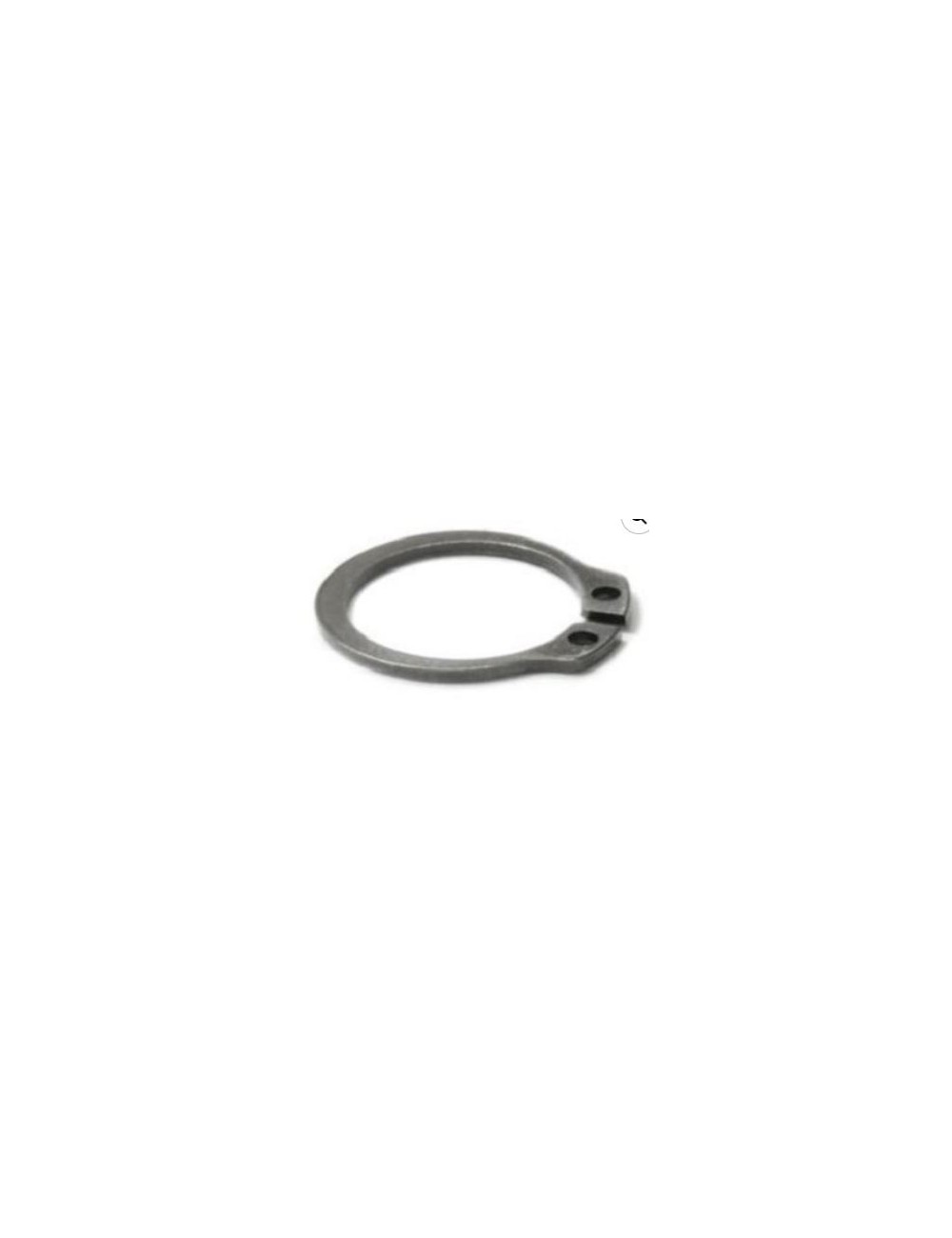

Security component essential for the integrity of your transmission or low engine, the diameter clip Ø20 mm is a piece of origin TM Kart. Designed to withstand intense axial and permanent vibrations in competition, it ensures rigorous maintenance of gears and rotating components.

It is referenced precisely to the mark View 1 On the technical scheme (as illustrated on the exploded of the KZ-R3 motor) and is also used on the secondary shaft of the R1 and R2 motorizations.

Main features:

• Product: Clip / Circlip axis or tree

• Diameter: Ø20 mm

• Sploter mark: Number 1 (Motor diagram / crankshaft KZ-R3)

• Application: Secondary Tree (R1, R2) and Mechanical Links (R3)

• Origin: Official piece TM RACING

• Availability: In stock on Magickart.eu

The history and usefulness of the product (track side)

In a KARTING KZ 125CC engine, the slightest axial fixation element undergoes considerable constraints under the effect of brutal accelerations and passages. A tired or relaxed retaining clip can cause a pinion and seriously damage the gearbox. Using an original clip Ø20 to strict manufacturer tolerances is an absolute safety guarantee on the track.

The mounting tuto (step by step)

To install or replace your Ø20 clip in the rules of the art:

• Disassembly: Remove the old used clip with a suitable circlip clip, taking care not to mark the shaft groove.

• Cleaning: Degrease and clean the throat perfectly to eliminate any trace of impurity.

• Setting up: Position the new Ø20 clip (spotted view 1) in its throat, keeping it out of place it excessively when laying down so as not to alter its elasticity.

• Control: Make sure with a slight rotation that the clip is perfectly housed on all its circumference in its retention groove.

Michel's Tip (Paddock Expert Council)

"Never reuse a disassembled stop clip! By opening up during extraction, it loses a share of its elastic power and no longer guarantees a secure support. For a few cents, replace it systematically by a new clip with each intervention on your transmission or low engine. "

FAQ SEO (Frequently Asked Questions)

• Q: Where does this clip are precisely on the technical schemes?

  • A: It corresponds to the benchmark View 1 On the exploded view of the R3 engine, and installs on the secondary shaft for versions R1 and R2.

• Q: Is it a part of a builder origin?

  • A: Yes, it is an official piece TM Racing, guaranteeing the quality of the spring steel and the respect of the strict dimensions Ø20.

• Q: Why is it not recommended to reuse a former clip?

  • A: Mechanical constraints and gap during disassembly deform metal. A new clip guarantees an impeccable clamping force and safety in competition.
