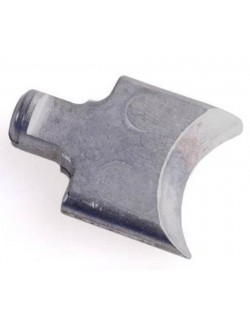

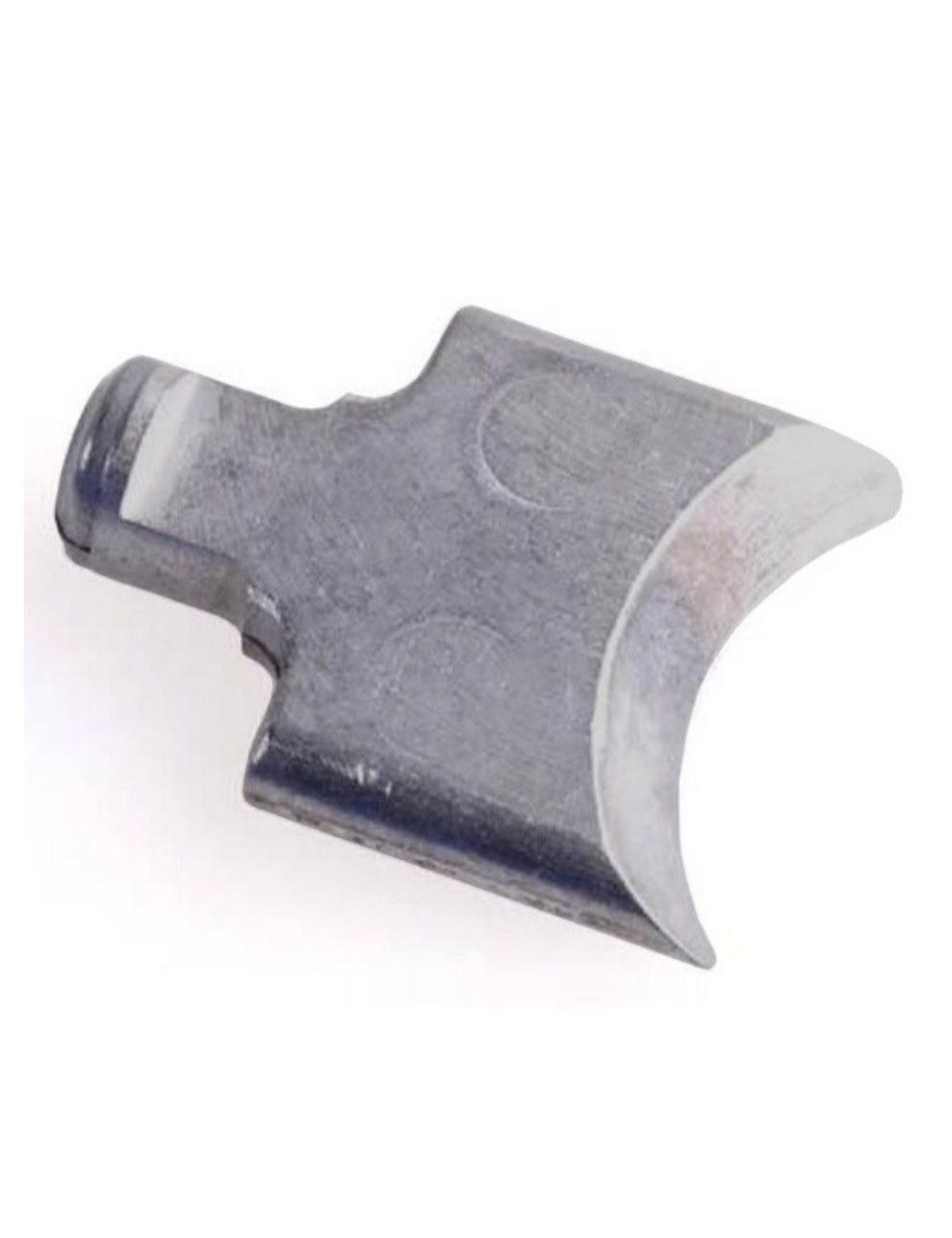

Exhaust guillotine Rotax Max (4)

This guillotine is the official piece for engines 125 Rotax Max (Senior, Master, Junior). Its function is simple but vital: in the low position, it favors the couple to get out of tight turns; In high position, it releases the gas flow to reach maximum peak speed.

Made in an alloy resistant to high temperatures, it is designed to support the extreme thermal stresses of the exhaust. The kit generally comprises the valve (guillotine), but it is strongly advised to check the condition of the orange bellows, the spring and the O-ring when replaced to ensure the tightness of the pneumatic system.

💡 Michel's trick

"Listen to me well: the guillotine, it's the lung of your Rotax. If it is calmane, your engine will graze or row out of curve. My secret? After each day of rolling, disassemble it and clean it with a degreaser or a little straw very fine iron. It must slide as in butter. If you force to return it, it's because you have a calamine concern! "

🎓 Tuto: how to fix and go up his guillotine?

1. Mounting: Insert the guillotine into the cylinder by being careful in the sense (the beveled part down). Check that the seal is flat to avoid oil leaks.

2. The adjustment of the wheel: The black wheel on top manages the spring voltage.

   • Visse (clockwise direction): The valve opens later (better for winding tracks).

   • Unscrew: The valve opens sooner (better for straight lines).

3. The test: Engine turned off, you have to be able to lift the guillotine by hand via the bellows and it must instantly go down alone. If it stays blocked at the top, cleans right away!
