The Copper cylinder head gasket 0.20 mm is the thickness "comfort" and safety for engines TMKART KZ-R2-R3. In the quest for performance, this seal is used by drivers and mechanics to increase the height of squish (Space between the piston and the cylinder head) to make the engine more flexible or to compensate for a new "high" piston.

Copper is preferred in competition because it ensures a Exceptional thermal dissipation, transferring the calories from the combustion chamber to the cooling circuit with efficiency much greater than the conventional joints.

Product Full Description: Original TM Kart Furnishing Chamber - For KZ-R2 & KZ-R3 Engines - Sizes 3.3 to 3.6

Adjust the compression ratio and the dynamic behavior of your gearbox engine with the Combustion chamber (cylinder head dome) origin TM Kart for KZ-R2 and KZ-R3 engines. Key element of the high motor, the profile of this dome directly determines the volume of the chamber, the height of SQUISH and the combustion speed of the air / gas mixture.

CNC machined with micrometric precision in the workshops of the Italian factory TM Kart, this room guarantees optimal thermal dissipation and a perfect centering in your cylinder head. Proposed in different variations ranging from 3.3 to 3.6, it adapts both on the block Kz-r2 only on the last Kz-r3. It allows you to change your motorization according to your needs: lower dimensions (3.3 / 3.4) To promote explosion, couple and slow turn output, up to higher ratings (3.5 / 3.6To release the top plans, offer an exceptional straight line and prevent the risk of hot weather detonation.

Guarantee the absolute maintenance of your high-engine thanks to theOriginal TM KART CH12 Cylinder Cylinder Nut. Essential Assembly Part on Italian Trademark Competition Engines, this reinforced nut ensures the locking of your cylinder on the motor housings as well as the closing of your cylinder head.

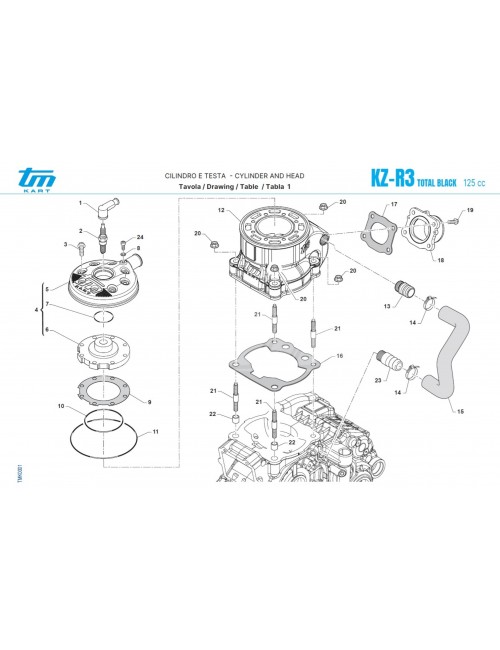

On the Official Exploded View (Tavola 1 - Cylinder and Engine Head KZ-R3 Total Black), this nut carries the Landmark n ° 20. Its integrated-specific base (enlarged flange) allows to spread the clamping pressure in a perfectly uniform manner around the stud (marker 21), avoiding crushing or marking the aluminum range of the cylinder (marker 12) or the Cylinder head. Footprint CH12 (12 mm key) Offers an excellent grip for your torque tools during high-engine revision operations.

Guarantee a surgical alignment of your high-engine on the bas-engine thanks to the Cylinder centering sleeve 10.5 x 14 mm original TM KART. Small by size but capital for the efficiency and reliability of your 125cc gear motorization, this rectified steel ring ensures the absolute position of your cylinder compared to the housings.

On the Official Exploded View (Tavola 1 - Cylinder and Engine Head KZ-R3 / R2), this centering is the Landmark n ° 22. Slipdled around the base studs (marker 21) to the junction between the low-engine crankcase and the cylinder base (marker 12), it neutralizes the mechanical games at the editing. It guarantees the perfect continuity between the transfer ducts of the housing and those of the cylinder, thus maximizing the scanning of the gases while eliminating any shear stress on the studs during the tightening of the nuts (marker 20).

The Cylinder head gasket (Often called internal O-ring) is housed in the throat between the combustion dome and the cylinder (or cylinder head cover according to the versions). Its role is double and crucial:

1. Watertight to combustion: Prevent the gas burned under high pressure escape to the cooling circuit.

2. Liquid sealing: Prevent cooling water from seeping into the combustion chamber.

Made in Viton or high temperature polymer, it is designed to maintain its elastic properties despite extreme thermal cycles of the engine Kz-r1 / r2.

Tmkart CYL.61mm

The Base gasket 0.50 mm is a centerpiece for motorists. It is mainly used to:

1. Adjusting the rod: Essential when using longer rods or pistons with a different cap height of the standard.

2. "Fast track" diagrams: Allows you to raise the cylinder significantly to maximize the opening times of transfers, ideal for "long straight" type circuits.

3. Carter volume: Increasing the thickness to the base increases the dead volume of the bas-engine, which can make the engine less "nervous" and more progressive on low adhesion tracks.

The Four-hole exhaust seal Provides the critical link between the cylinder exhaust light and the flange (or the collector). On a 2-time competition engine like the Tmkart, the slightest leak at this level disrupts the return wave of the exhaust jar, resulting in an immediate loss of torque and the callamine projections on the bottom of the motor.

The Copper cylinder head gasket 0.03 mm is a piece of mechanical goldsmith. Intended for the most advanced competition settings, it adjusts the squish At its limit value when standard thicknesses (0.10 or 0.05 mm) are too important for the desired room volume.

At this thickness, the seal acts almost as a direct contact interface, offering the best possible thermal conductivity between the cylinder and the cylinder head dome.2 0.03

The Copper cylinder head gasket 0.10 mm is probably the most used thickness by KZ drivers. It is the ideal adjustment base for the engine Tmkart kz-r2. This seal makes it possible to obtain a powerful volumetric ratio while maintaining a necessary thermal safety margin during the disputed finals.

Thanks to its pure copper composition, it provides ultra-fast heat transfer to the cooling circuit, thus avoiding the phenomena of detonation (rattling) that often occur with joints of less good quality.rt
