ARRIER FREIN DISCUSSION 200X18mm

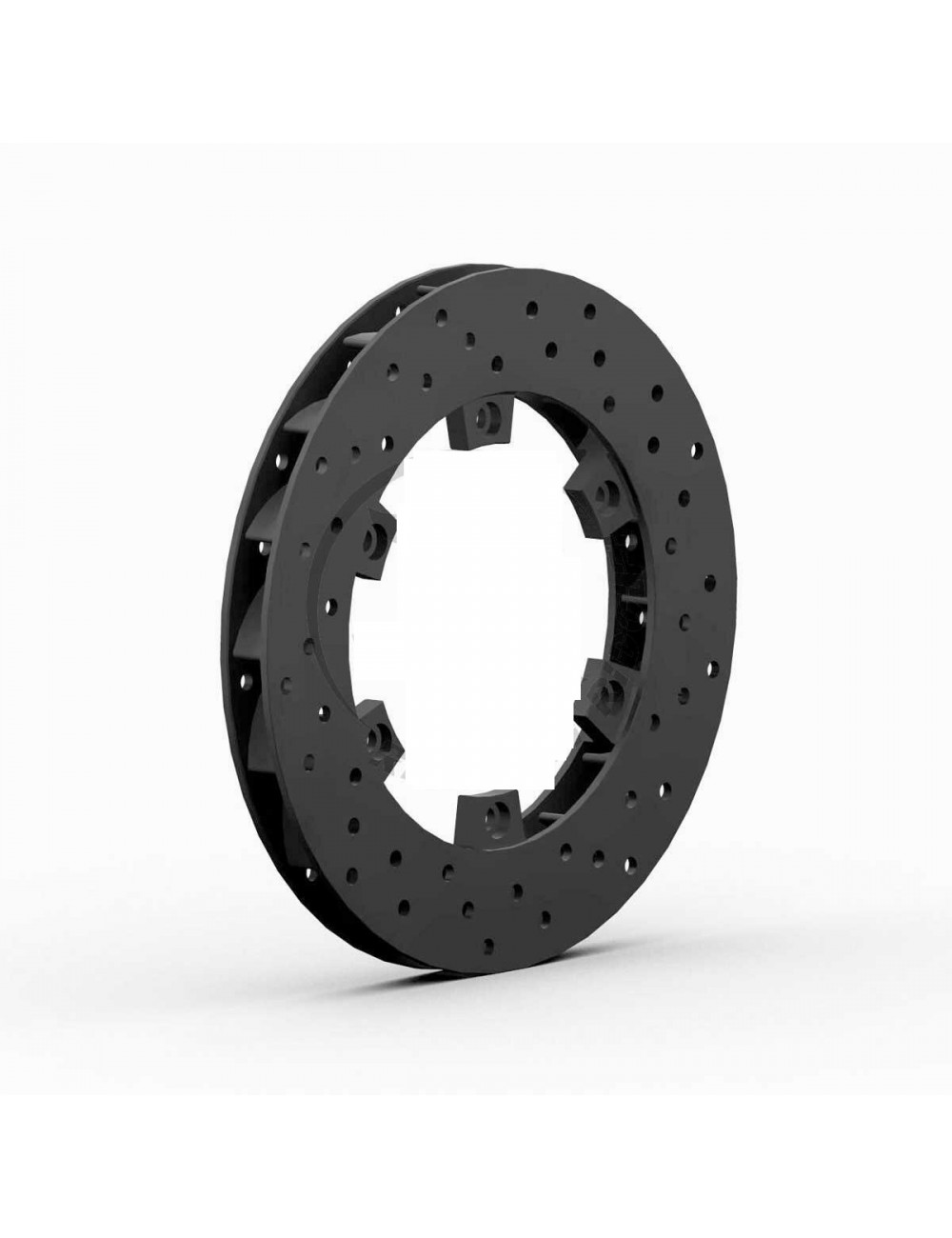

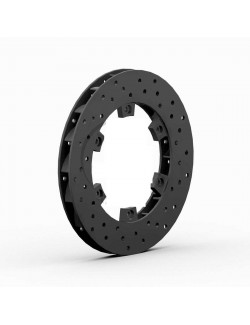

Brake Disc Rear Ventilated - 200 x 18 mm

Improve the endurance and power of your braking with this high performance ventilated brake disc. Designed to meet the requirements of competition, it combines exceptional thermal dissipation and high wear resistance, even in the most extreme conditions.

Technical specifications

• Material: Ductile font (with superior friction coefficient and excellent thermal shock resistance).

• Dimensions: Outer diameter 200 mm Thickness 18 mm.

• Cooling system: Ventilated structure with surface drillings for rapid heat removal and constant cleaning of platelets.

• Fixing: 6 holes of Ø 6.5 mm with an interax 114 mm.

• Weight: 986 g (net weight).

Performance and Reliability

This brake disc is not only a spare part, it is an improvement of your braking system:

• Optimized Ventilation: Internal channels and piercings on the contact surface ensure efficient cooling, thus avoiding "fading" (heat-induced braking loss) at the end of the handle.

• Constant bite: The ductile cast iron ensures a straight attack from the first degrees of temperature and an ideal progressivity for precise dosing at the inlet.

Universal compatibility

This model is Universal. It fits all karting chassis (KZ, Rotax, X30, OK...) using a standard record holder with a mounting bracket 114 mm.

Magickart tip: When installing a new disc, we strongly recommend that you install a set of new pads to ensure perfect running and optimal contact surface.
